A
3
A) HANDLE
B) MOTOR INTER-CONNECTION BOX
C) MOTOR
D) CHECK VALVE
E) BELT WITH GUARD
F) AIR FILTER
G) OIL FILLING CAP
H) PUMP CASING
I) OIL SPYHOLE
J) PRESSURESTAT
K) 1/4” OUTLET VALVE
L) TANK
M) TANK MANOMETER
N) WHEELS
O) PURGE VALVE
P) SWITCH BUTTON
Q) THERMAL OVERLOAD PROTECTOR
R) HANDLE
ACCESSORIES:
1 Oil Bottle
2 Air filters
1 Oil deposit cap
1 Bag with screws
1 Handle
2 Wheels
2 Rubber supports
BEFORE CONNECTING THE COMPRESSOR VERIFY THE
FOLLOWING:
Feeding voltage shall match voltage indicated in the compressor
nameplate.
Air gauge readings shall be zero.
Oil level in the compressor pump casing shall reach the mark in
the level indicator. (See figure A).
R
B
Q
C
D
E
F G
H
J
K
L
M
I
P
N
O
A

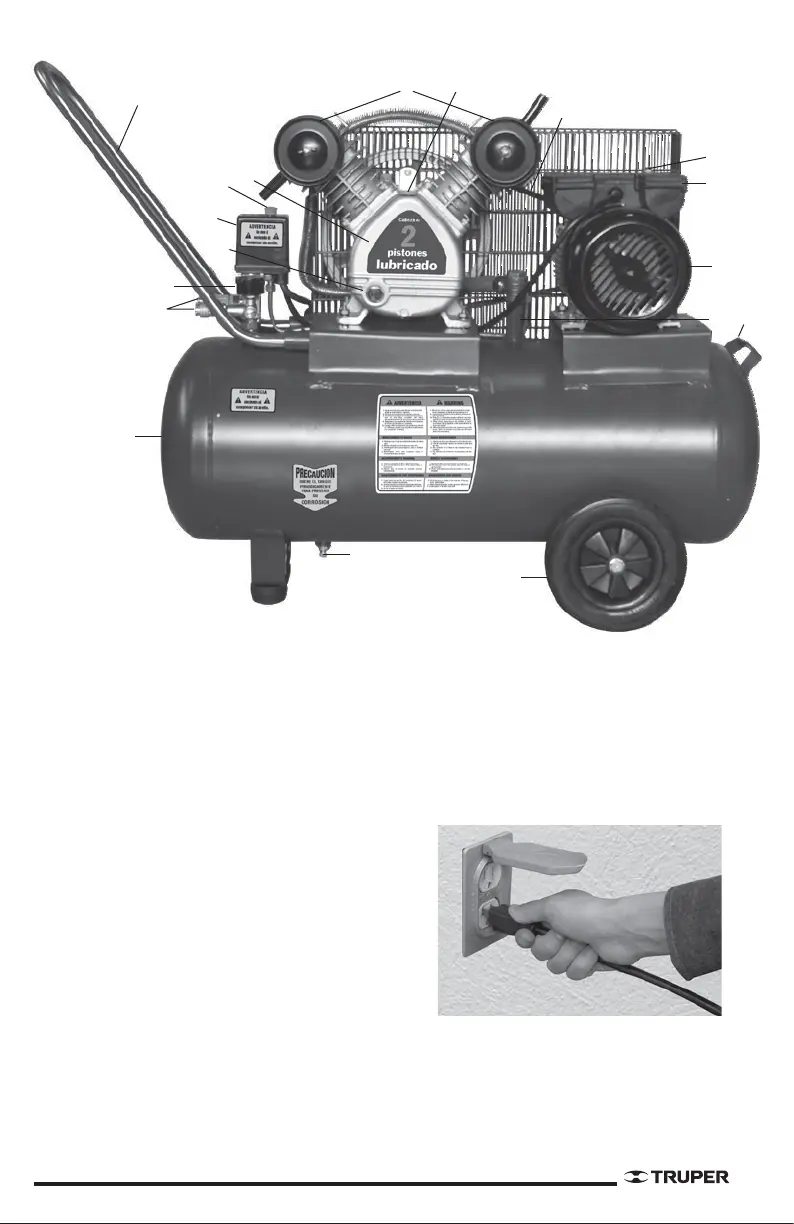

COMPRESSOR FULL DIAGRAM
