Truper DES-63 - Assembly; Handle; Guard; Blade or Circular Saw Set Up

Straight
Axis
Handle
Auxiliary
Handle
The Gas Brushcutter can
also be used with circular saws
(not included)
that will not have a larger
diameter than the saw included.
7

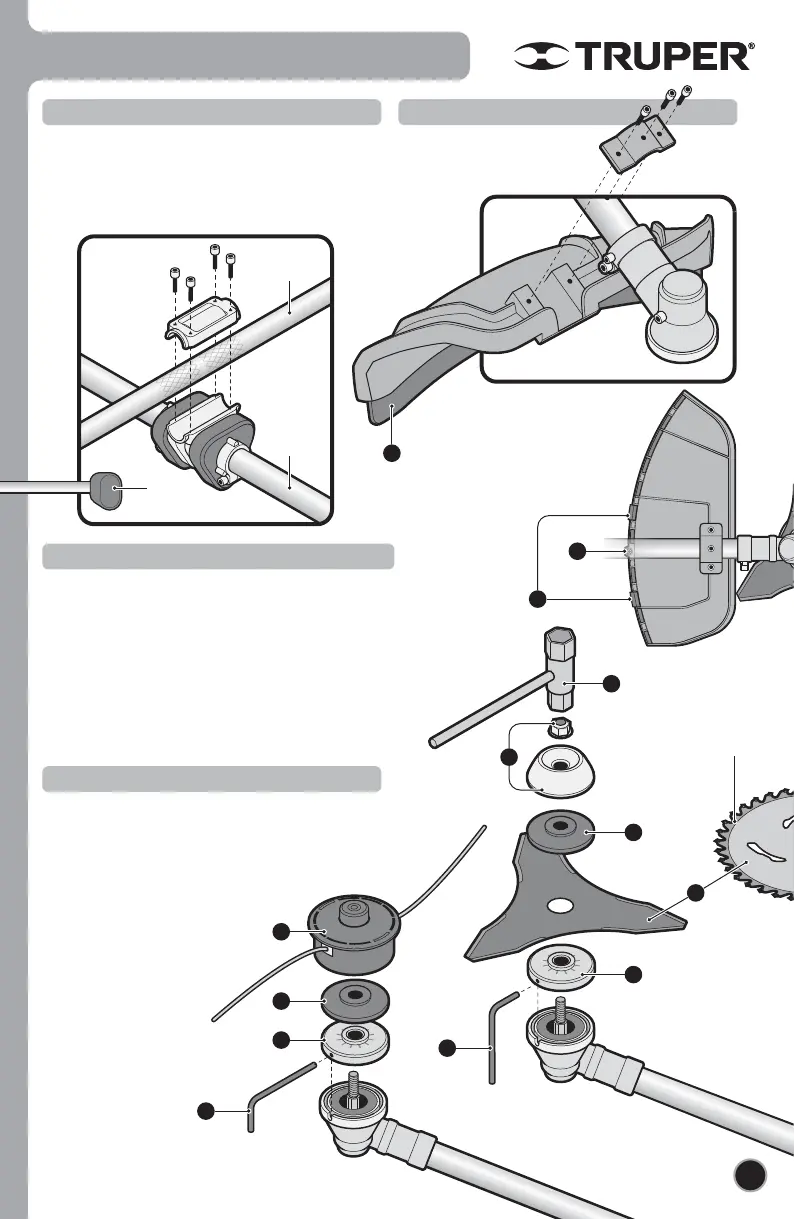

Assembly
• Separate the bracket from the straight axis mounting.
Loosen the four bolts in the upper side.
• Set the handle in place fixing and tightening the bracket
with the four bolts.
Handle
• Secure the guard onto the
cutter head using the bracket
and bolts included.
• If using the thread spool use
the guard with apron (A) included.
• If using the blade or circular saw,
remove the screw in the guard rear
side (B), press the 2 clips (C)
and remove the apron.
Guard
• Press the plate onto the cutter head (1).
• Press the blade or circular saw onto the plate, fastening the blade or
circular saw into the turning direction. The direction shall be the same
as the one marked on the guard (2).
• Set the flange onto the blade or circular saw (3).
• Set the cover and safety nut (4).
• Insert the Allen key in the pressure plate to block the axis (5).
Tighten the safety nut counterclockwise. Use the included key(6).
• Use the guard without the apron. see the guard item.
Blade or Circular Saw Set Up
• Press the plate onto the cutter head (7).
• Press the flange onto the plate (8).
• Insert the Allen key on the pressured plate side to block
the axis.
• Set the threaded spool into the
axis and tighten by hand in a
counterclockwise direction (9).
• Use the guard with the apron,
see the guard item.
Thread Spool Installation
5
8
9
7
5
3
6
A
B
C
1
2
4
ENGLISH
