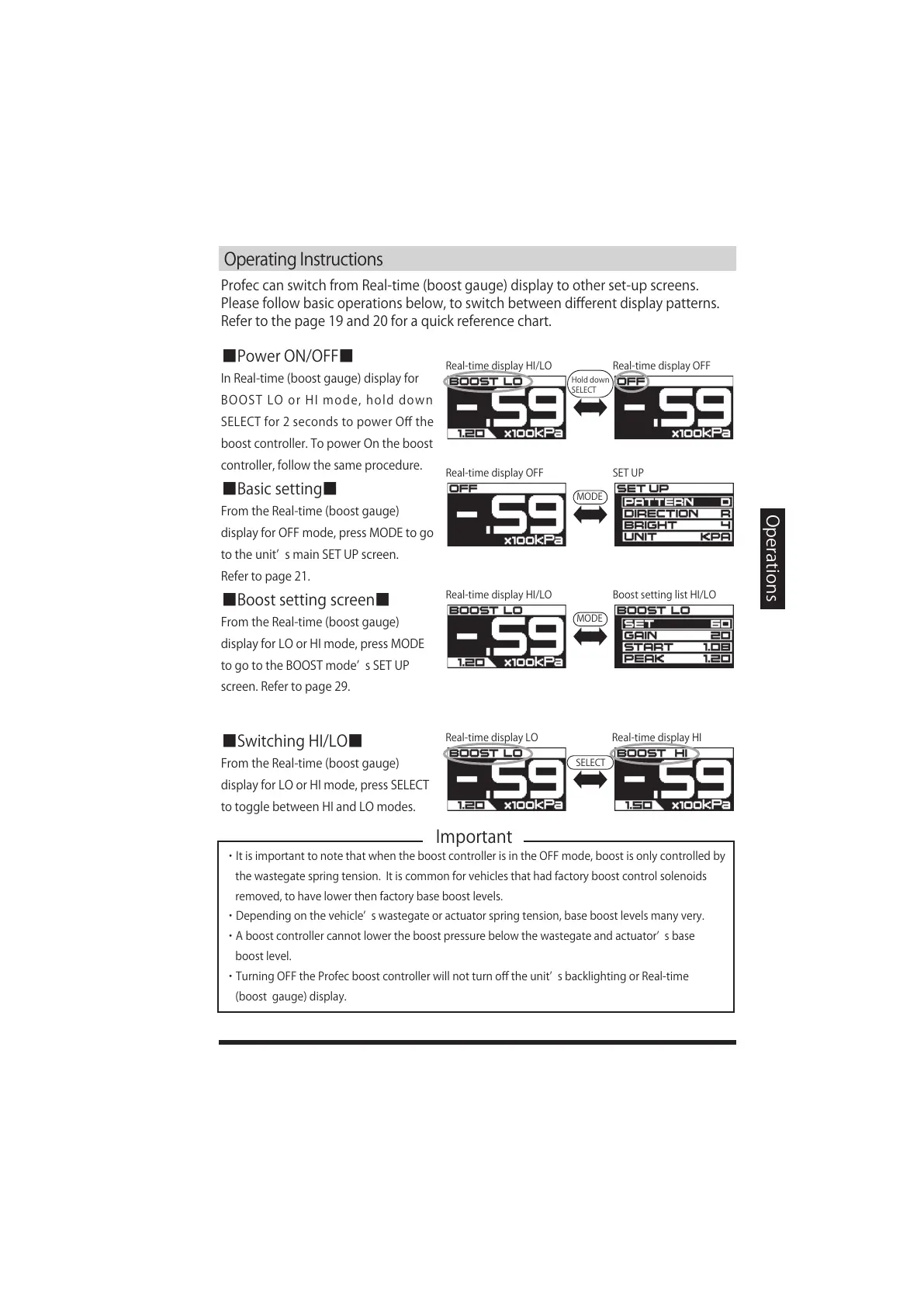

OperatingInstructions
■PowerON/OFF■
■Basicsetting■
■Boostsettingscreen■
■SwitchingHI/LO■
ProfeccanswitchfromReal-time(boostgauge)displaytootherset-upscreens.
Pleasefollowbasicoperationsbelow,toswitchbetweendifferentdisplaypatterns.
Refertothepage19and20foraquickreferencechart.
MODE
Real-timedisplayLO Real-timedisplayHI
SELECT
Real-timedisplayOFFReal-timedisplayHI/LO
Holddown
SELECT
SETUPReal-timedisplayOFF
MODE
BoostsettinglistHI/LOReal-timedisplayHI/LO
Operations
FromtheReal-time(boostgauge)
displayforOFFmode,pressMODEtogo
totheunitʼ smainSETUPscreen.
Refertopage21.
FromtheReal-time(boostgauge)
displayforLOorHImode,pressMODE
togototheBOOSTmodeʼ sSETUP
screen.Refertopage29.
FromtheReal-time(boostgauge)
displayforLOorHImode,pressSELECT
totogglebetweenHIandLOmodes.
InReal-time(boostgauge)displayfor
BOOSTLOorHImode,holddown
SELECTfor2secondstopowerOffthe
boostcontroller.TopowerOntheboost
controller,followthesameprocedure.
Important
・ItisimportanttonotethatwhentheboostcontrollerisintheOFFmode,boostisonlycontrolledby
thewastegatespringtension.Itiscommonforvehiclesthathadfactoryboostcontrolsolenoids
removed,tohavelowerthenfactorybaseboostlevels.
・Dependingonthevehicleʼ swastegateoractuatorspringtension,baseboostlevelsmanyvery.
・Aboostcontrollercannotlowertheboostpressurebelowthewastegateandactuatorʼ sbase
boostlevel.
・TurningOFFtheProfecboostcontrollerwillnotturnofftheunitʼ sbacklightingorReal-time
(boostgauge)display.
