24
3.12 Replacing the Gears on Print Module
1. Refer 3.9 to take out the print head module.

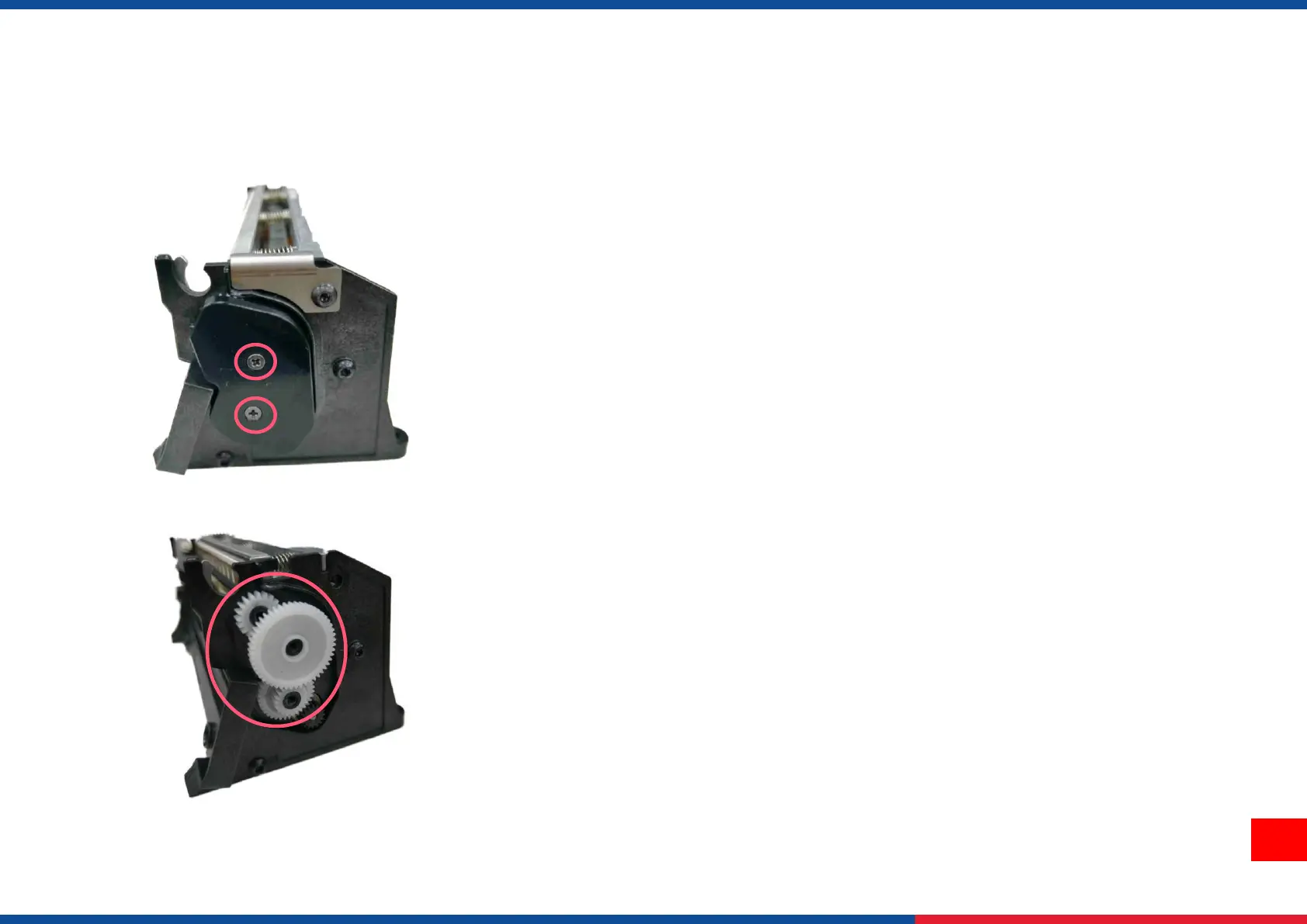

2. Unscrew 2 marked screws
3. Remove the Gears.
4. Reassemble the parts in reverse procedures.
