34

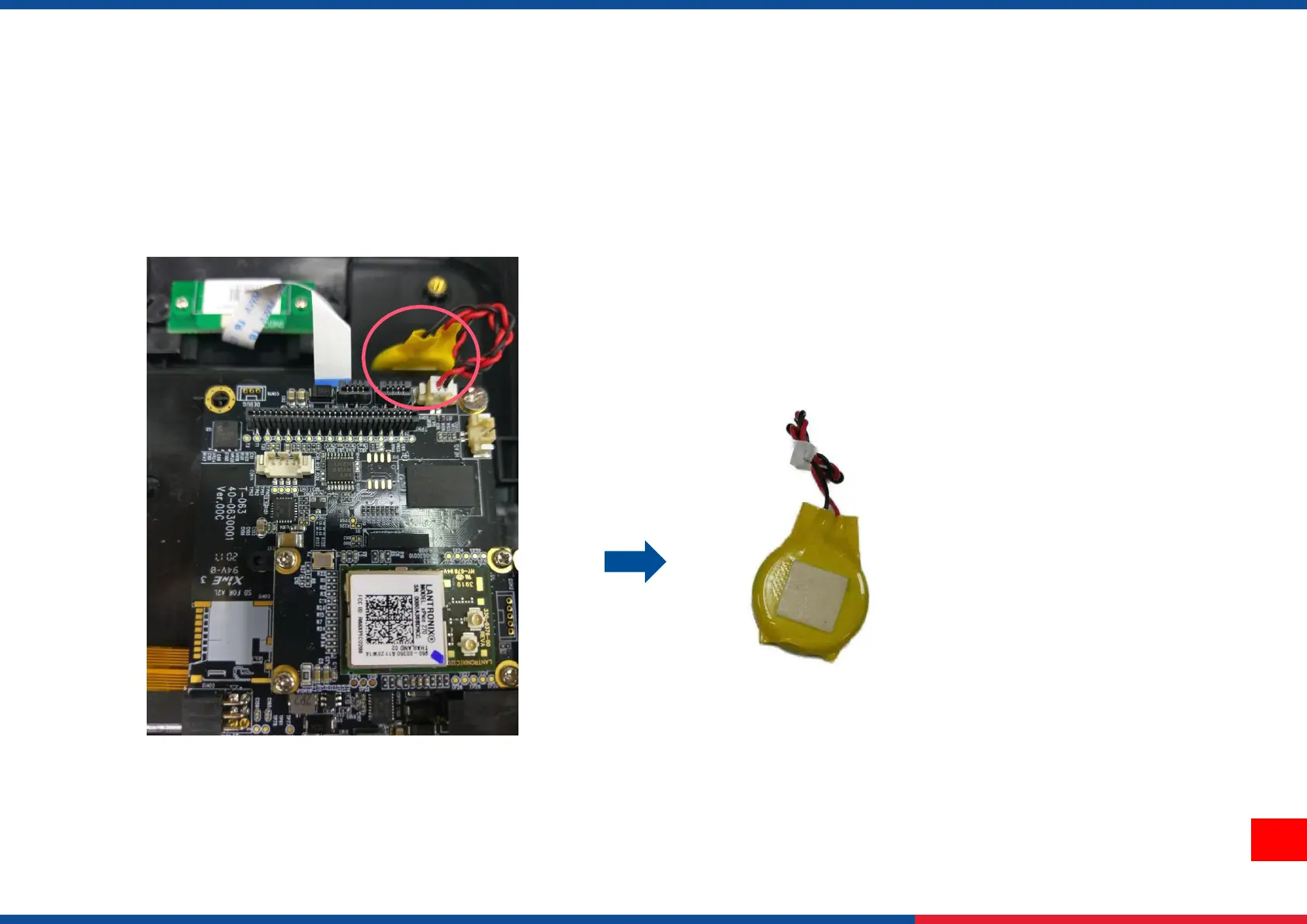

3.21 Replacing RTC Module.
1. Refer 3.1 to open top cover.
2. Refer 3.6 to lift the media holder
3. Unplug the cable from main board and peel it off from lower cover.
4. Reassemble the parts in reverse procedures.
