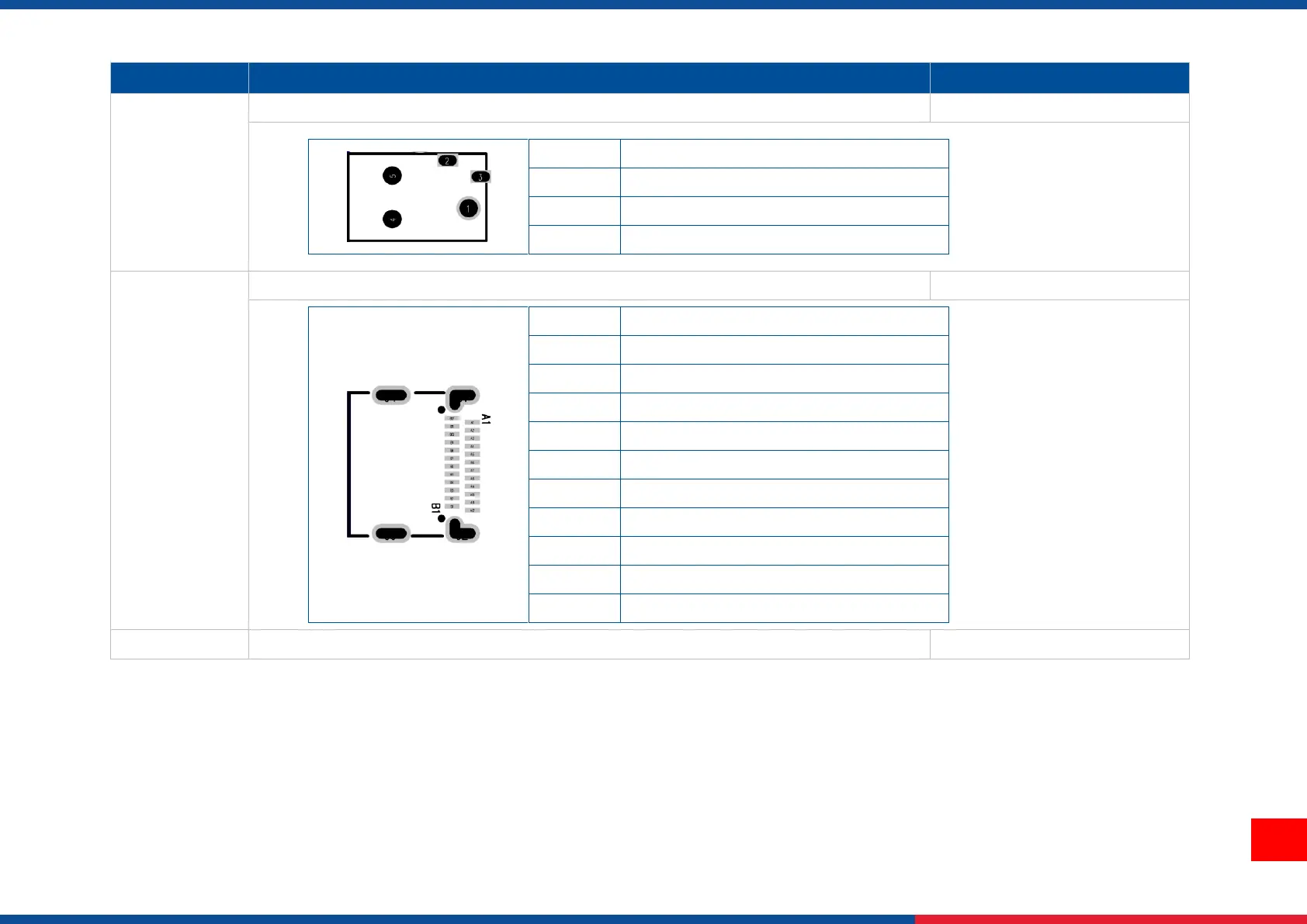

5
Connector
Description
Remark
1
Power supply output (12V/2A DC) connector
DCIN1
Pin
Description
1
12V
2
GND
3
GND
2
USB Device connector
CON2
Pin
Description
A1
GND
A5
Pull-down resistor 5.1K
A6
D+
A7
D-
A12
GND
B1
GND
B5
Pull-down resistor 5.1K
B6
D+
B7
D-
B12
GND
3
Head open connector
CON10
