2-10 AeroTrak
®
Portable Airborne Particle Counter
Alarm
This connector is used to communicate the alarm status of the
instrument. When the instrument is in flow or laser alarm, the dry relay
will close. The mating connector and ferrite is provided. The user must

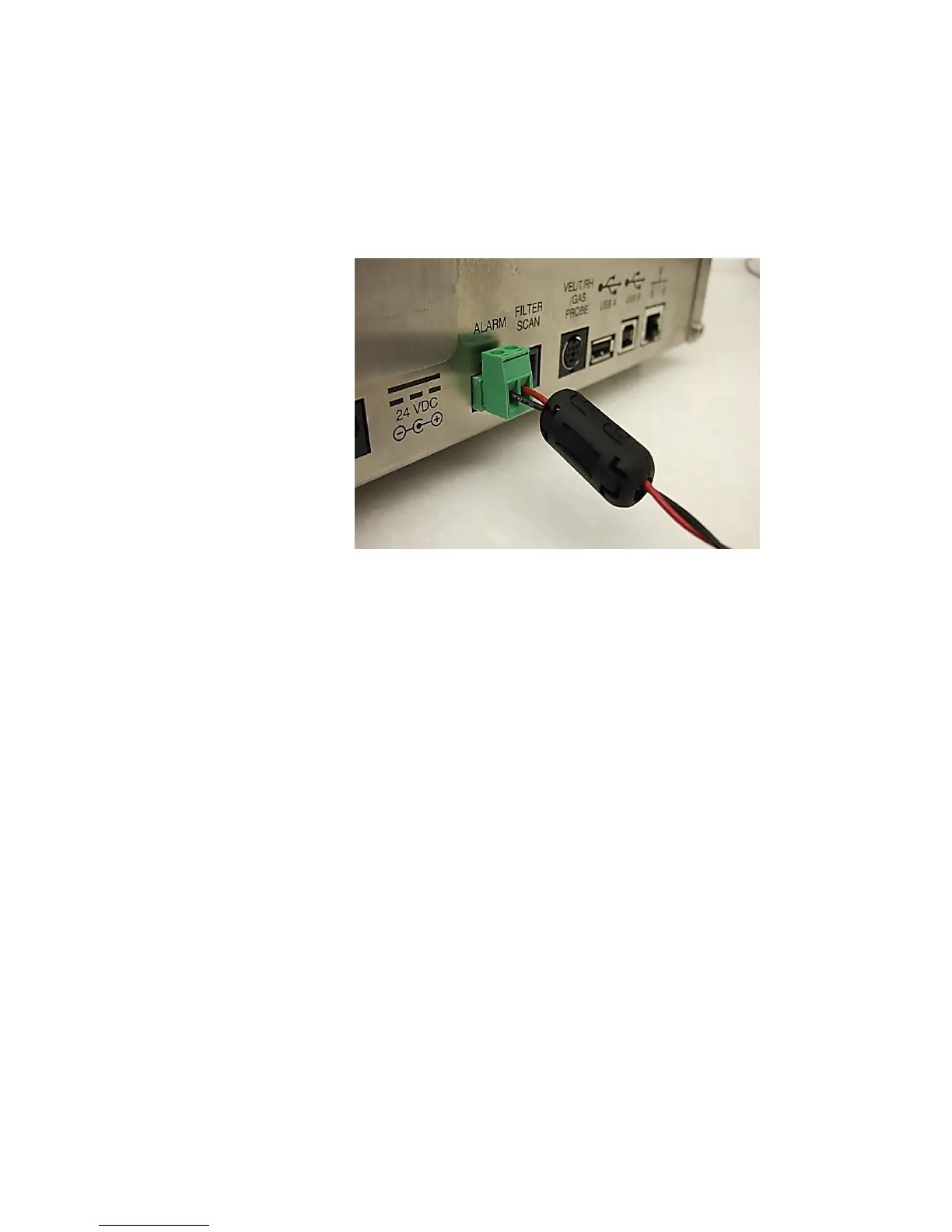

supply the wiring. Install the clamp-on ferrite so that it is within 1 inch of
the connector as shown.
