7.3 Change Handle

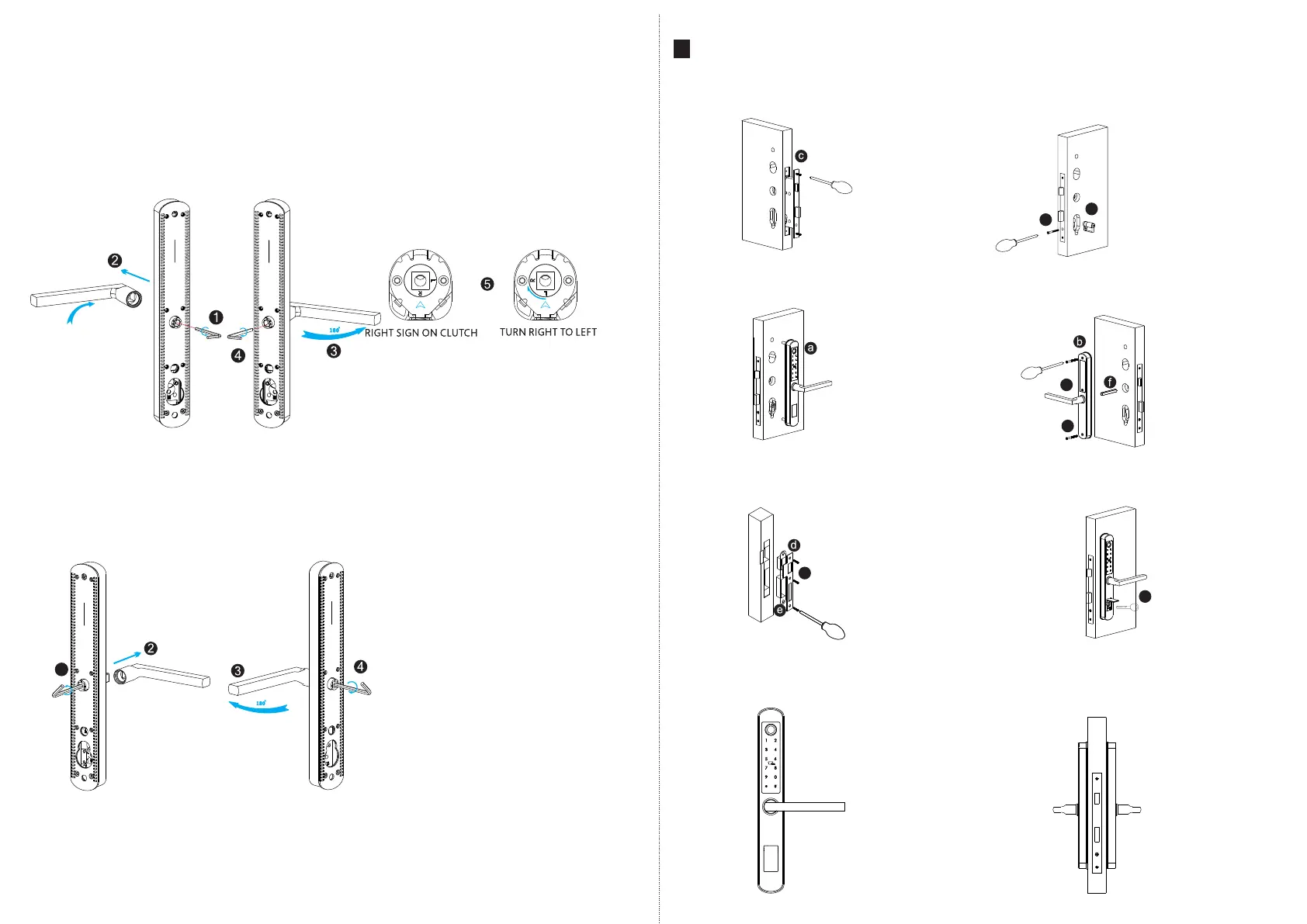

8.1 Assemble the Mortise
INSTALL THE LOCK
Assemble the mortise( ) into the slot which
is drilled according to the template.
c
8.2 Assemble the Cylinder
Fix the cylinder( ) with the long screw
through the hole on the faceplate.
k
8.3 Assemble the Front Panel
Tight the front panel on the door(outside).
m
j
8.4 Assemble the back panel
Tight the back panel with front panel
with thetwo long screws( ).f
i
k
g
h
8.5 Assemble the Strike and Box
Put the strike box into the slot and fix the strike
with the screws.
8.6 Test with the mechanical key
Test to unlock the door with the mechanical
key and adjust the position if it is not smooth.
8.7 Test the Lock
Put 4pcs AAA alkaline batteries into the battery
box and test with factory passcode or APP .
8.8 Adjust the Lock Panel
After test, please adjust the position of the
lock panel or the screws if it is too tight.
1.1 Use the allen key to take off the screw from the handle head.
1.2 Take off the handle.
1.3 Rotate the handle 180 degree and fix the direction that you need.
1.4 Tighten the screw with the allen key.
1.5 Adjust the clutch direction as the sign on the right.
1.Adjust the Front Handle Direction
Right Open Left Open
2. Adjust the Back Handle Direction
1
2.1 Use the allen key to take off the screw from the handle head.
2.2 Take off the handle.
2.3 Rotate the handle 180 degree and fix the direction that you need.
2.4 Tighten the screw with the allen key.
2.5 Adjust the handle if it is too tight.
5
6
