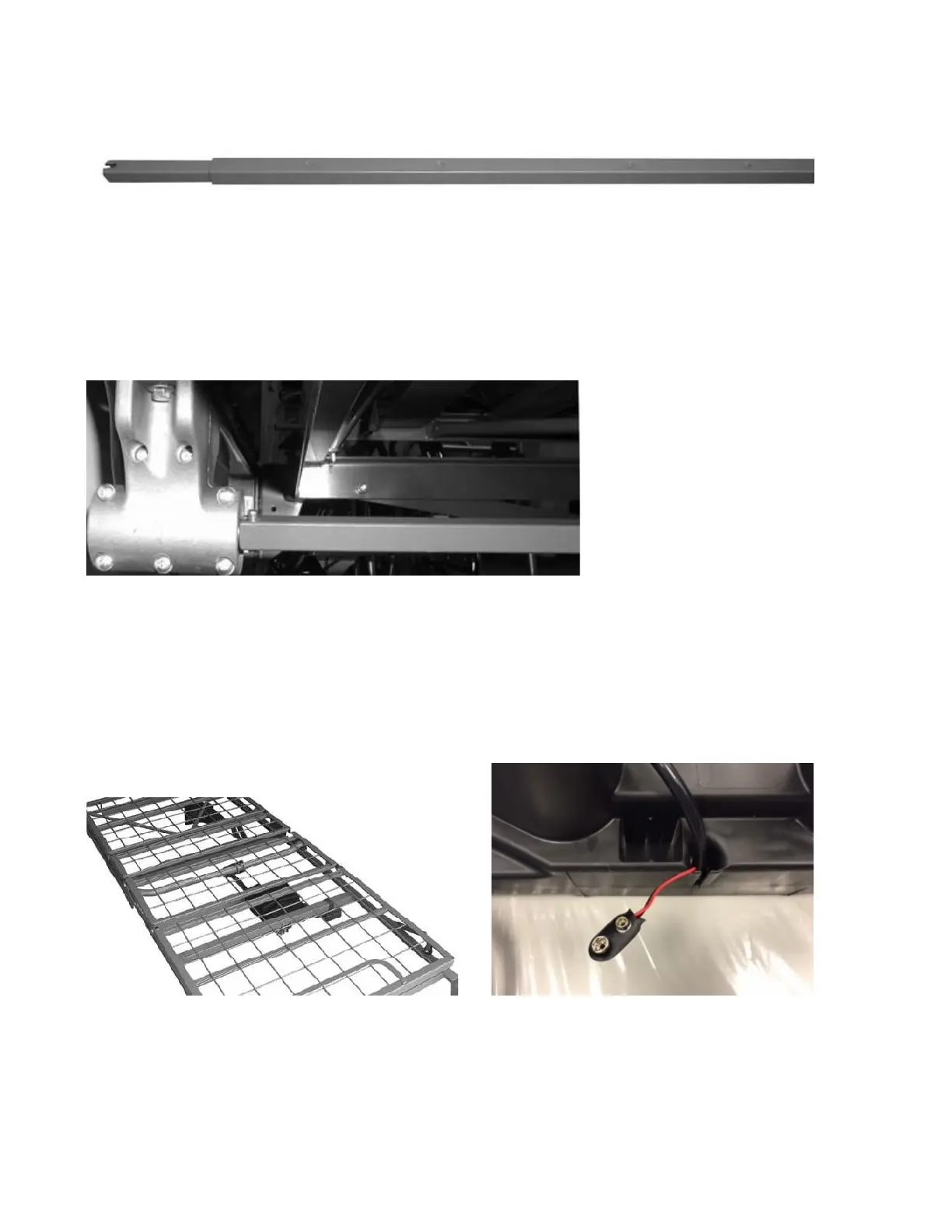

Figure 6
7. The hi/lo shaft has one end with a short shaft that is spring-loaded. Connect the spring-
loaded end of the long drive shaft onto the hand crank shaft located on the foot board, pull the
shaft towards bed end, and connect the other end of the drive onto the shaft, on the T-shape
gear box of the head board end.
Figure 7
8. A spare battery backup pack is outfitted in case of power failure.
For T2020 - It is located near the main control unit on the foot frame.
For T2010 - It is located on motor next to power cord.
The power packup is designed to raise and lower the bed up for emergencies use only.
Figure 8.1 (T2020) Figure 8.2 (T2010)
