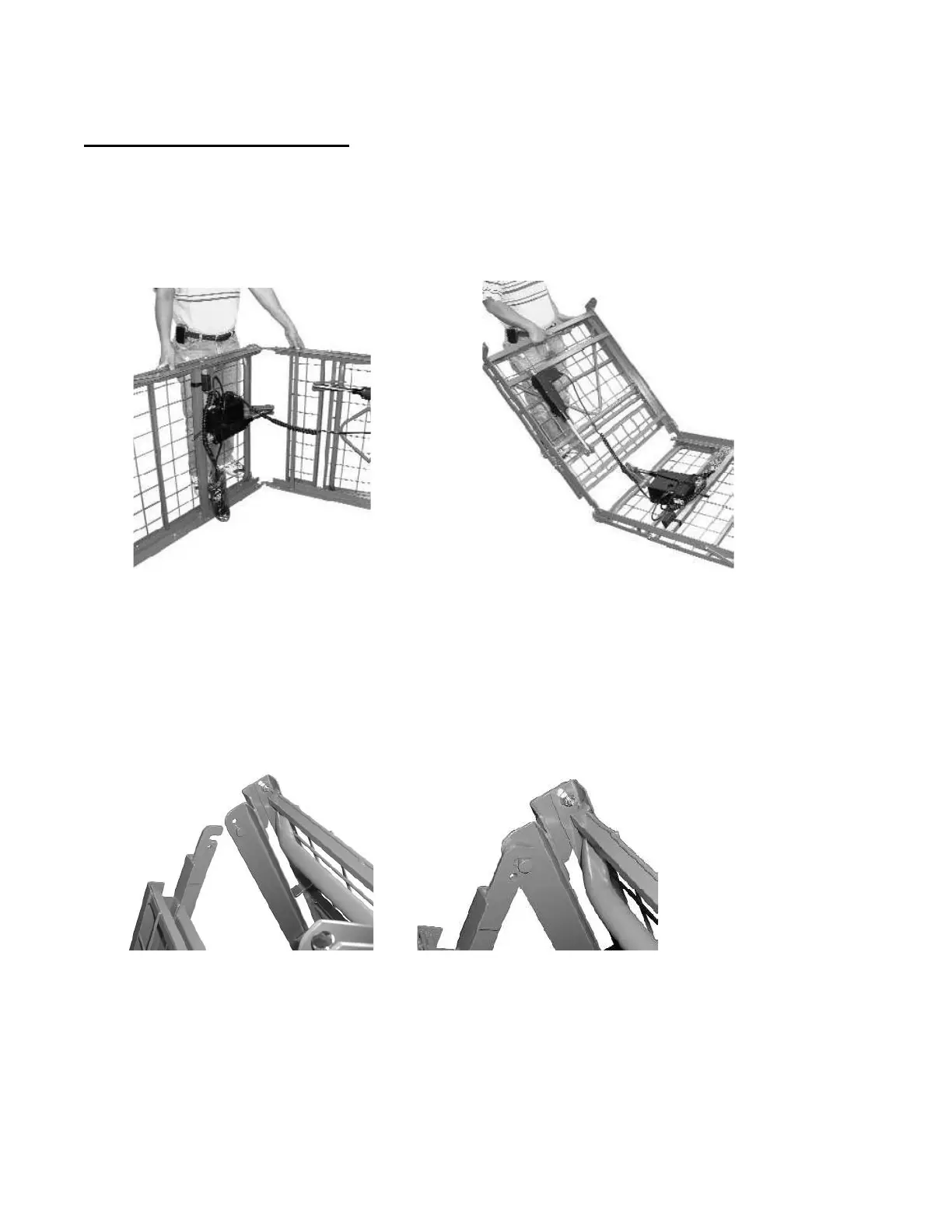

Assembly Instruction
1. First assemble the foot & head frame. It can be assembled with the foot
section (A) upside down, flat on the floor with the metal rods facing the floor,
or with the foot section on its side, whichever is easier. Motor or cranks should
be on the left side.
Figure 1.1 Figure 1.2
2. Temporarily remove the 2 hex bolts and nuts located in the middle joint of
the head frame. Pick up the head frame (B) and at a 75% angle fit the frame
hooks onto the two shoulder rivets on the side rail of the foot frame. Rotate
the head frame until it is lined up with the foot frame. Lock the hooks securely
onto the shoulder rivets.
Figure 2.1 Figure 2.2
-5-
