3-1. For T2020 - Then rotate the bed to have the top setting facing up. Line up the two holes
on both ends of the frame, and re-secure the hex bolts in middle of frame on both sides.
3-2. For T2020 - Connect both the head and foot motor drive shafts to the lifting arms. Start
with the drive shafts on head frame A, and work your way to the one on foot frame B.
A. B.

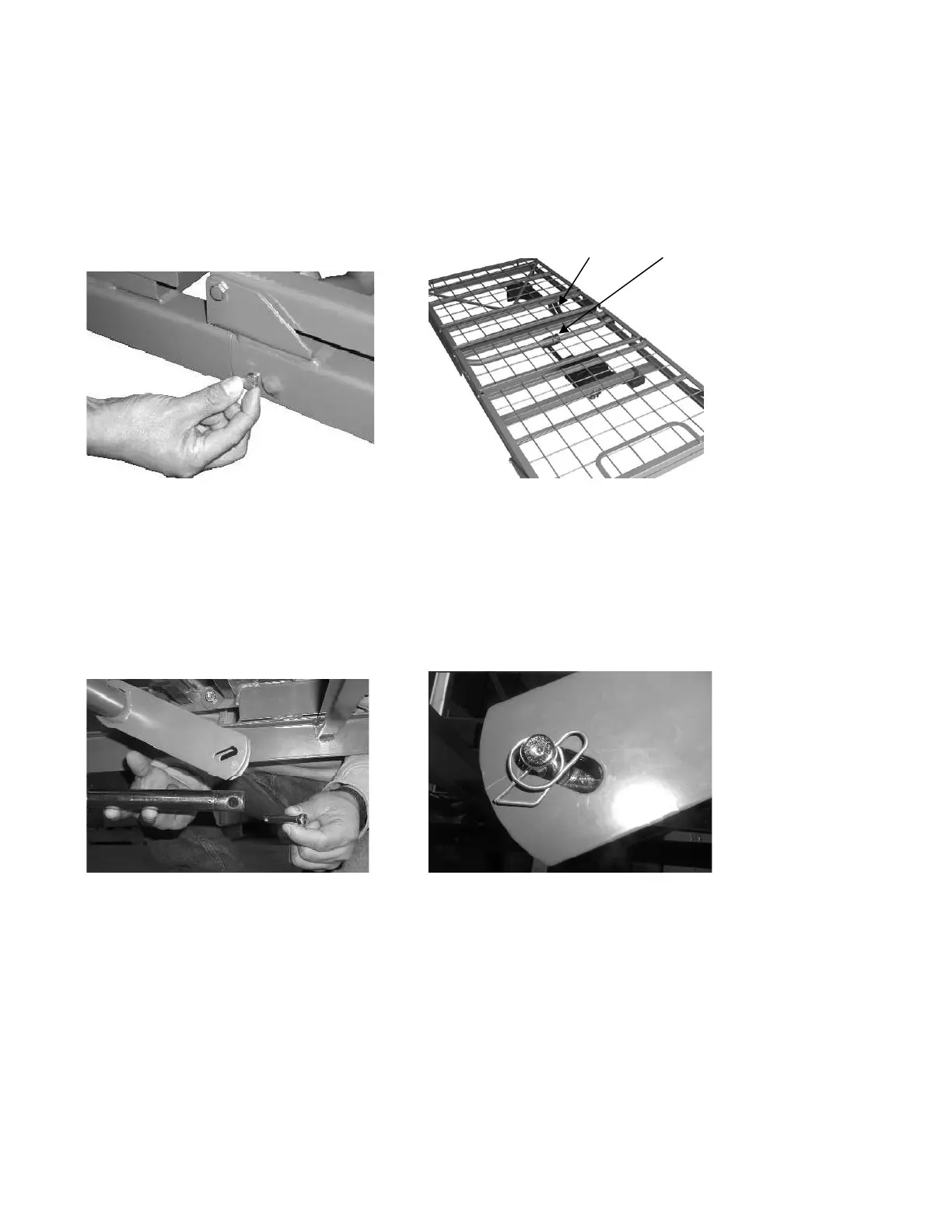

Figure 3-1 Figure 3-2
3-3. For T2020 - Pull to release the cotter pin from the clevis holding pin. Align the drive
shaft hole with the oval holes on the lifting plate. Re-secure the holding pin on
both sides of the left plate. Then reattach the cotter pin to lock.
Continued on Step 5
Figure 3-3 Figure 3-3
