A4, Plug hand pendant into motor.

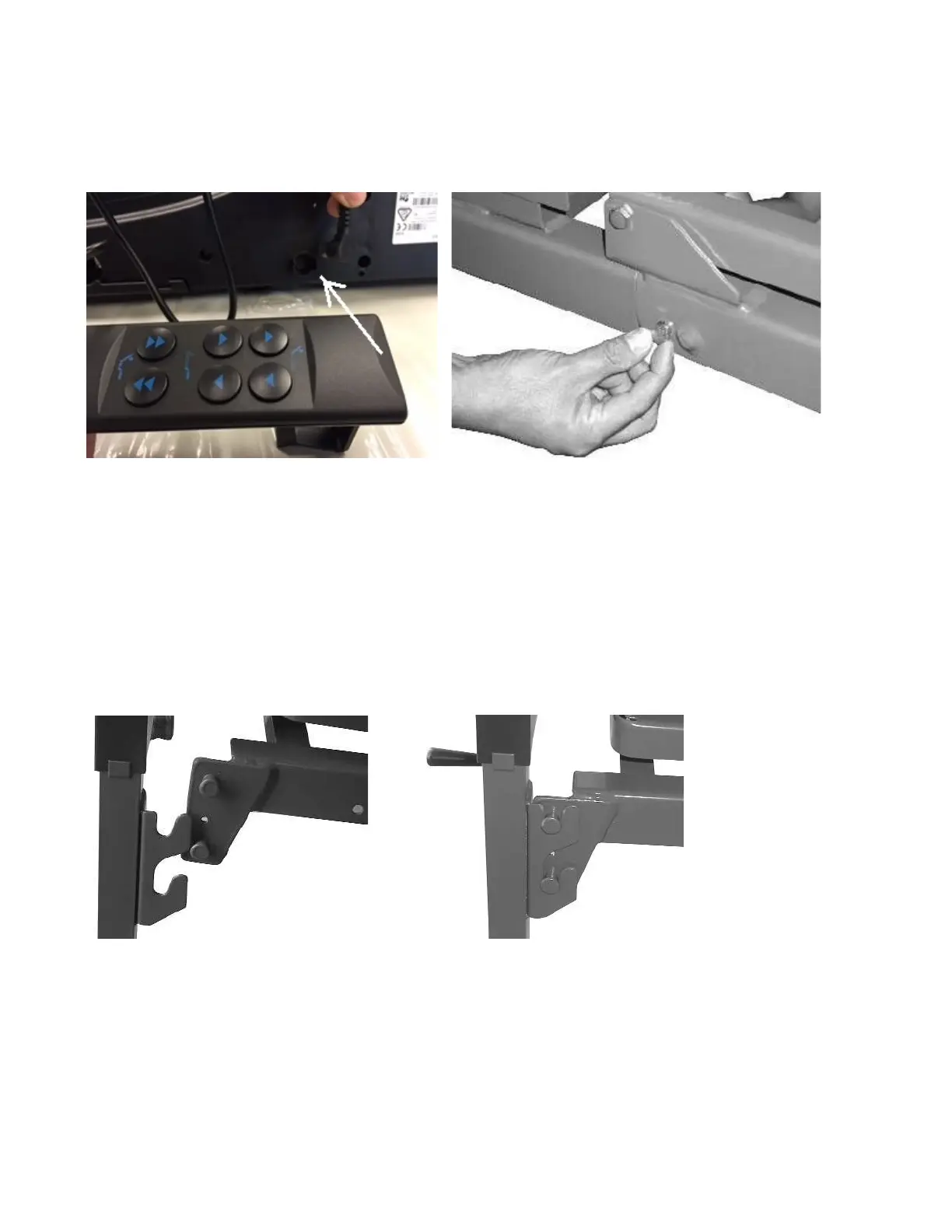

Figure A-4 Figure 4-3
4-3. For T2010 - Then rotate the bed to have the top setting facing up. Line up the two holes
on both ends of the frame, and re-secure the hex bolts in middle of frame on both sides.
Continued on Step 5
5. With the two frames connected and spring section of the frames facing up, slide the head
board and the foot board onto the frame corner plate rivets. All head boards are taller than the
foot boards.
Figure 5.1 Figure 5.2
6. The Hi/Lo shaft has 4 hole positioning adjustment on it. It’s designed to be a universal fit
with other style beds. For semi electric beds use the 2nd hole on the outer tube to line up with
the locking pin on the inner tube.
-8-
To Next Page
