TuffStuff AXT-225 - Step 2 Assembly List

AXT-225 Deluxe Home Gymwww.tustutness.com
16
*12
115
126
83
66
61
113
126
71
68
126
115 126
68
115
68
126
115
126
68
*24
Step 2

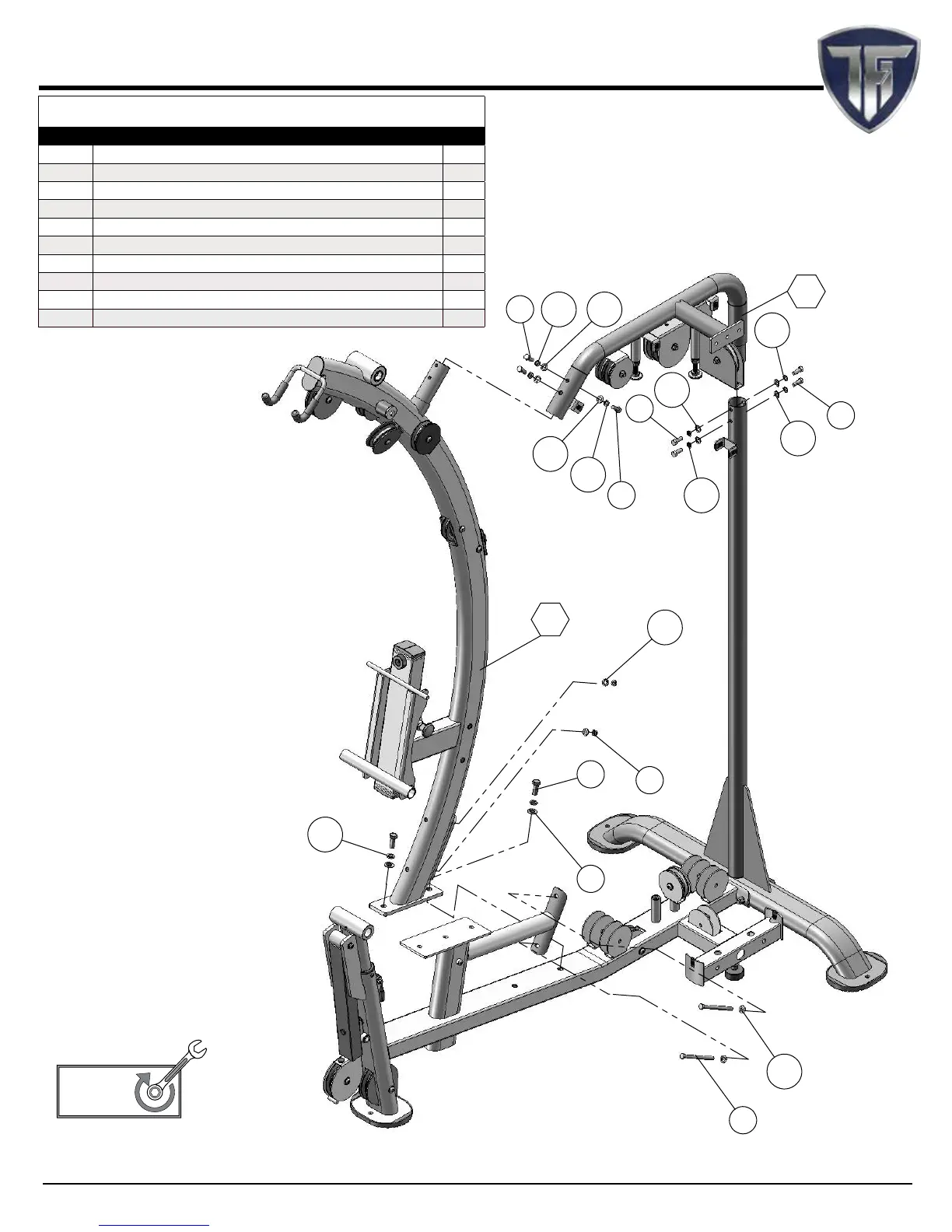

Step 2 Assembly List
Item # Description Qty.
*12 FRONT UPRIGHT 1
*24 TOP FRAME 1
61 FLAT WASHER SAE Z/P 1/2” 2
66 HEX HEAD CAP SCREW Z/P 1/2-13 X 1 1/4 2
68 HEX HEAD CAP SCREW Z/P 3/8-16 X 1 7
71 HEX HEAD CAP SCREW Z/P 3/8-16 X 5 1/8 2
83 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 2
113 SPLIT LOCK WASHER Z/P 1/2” 2
115 SPLIT LOCK WASHER Z/P 3/8” 7
126 OVAL WASHER Z/P 3/8” 11
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this and
previous loosely tighten steps.
