TuffStuff AXT-225 - Step 3 Assembly List

AXT-225 Deluxe Home Gym www.tustutness.com
17
Step 3
115
68
115
41
109
109
41
19
*21
68

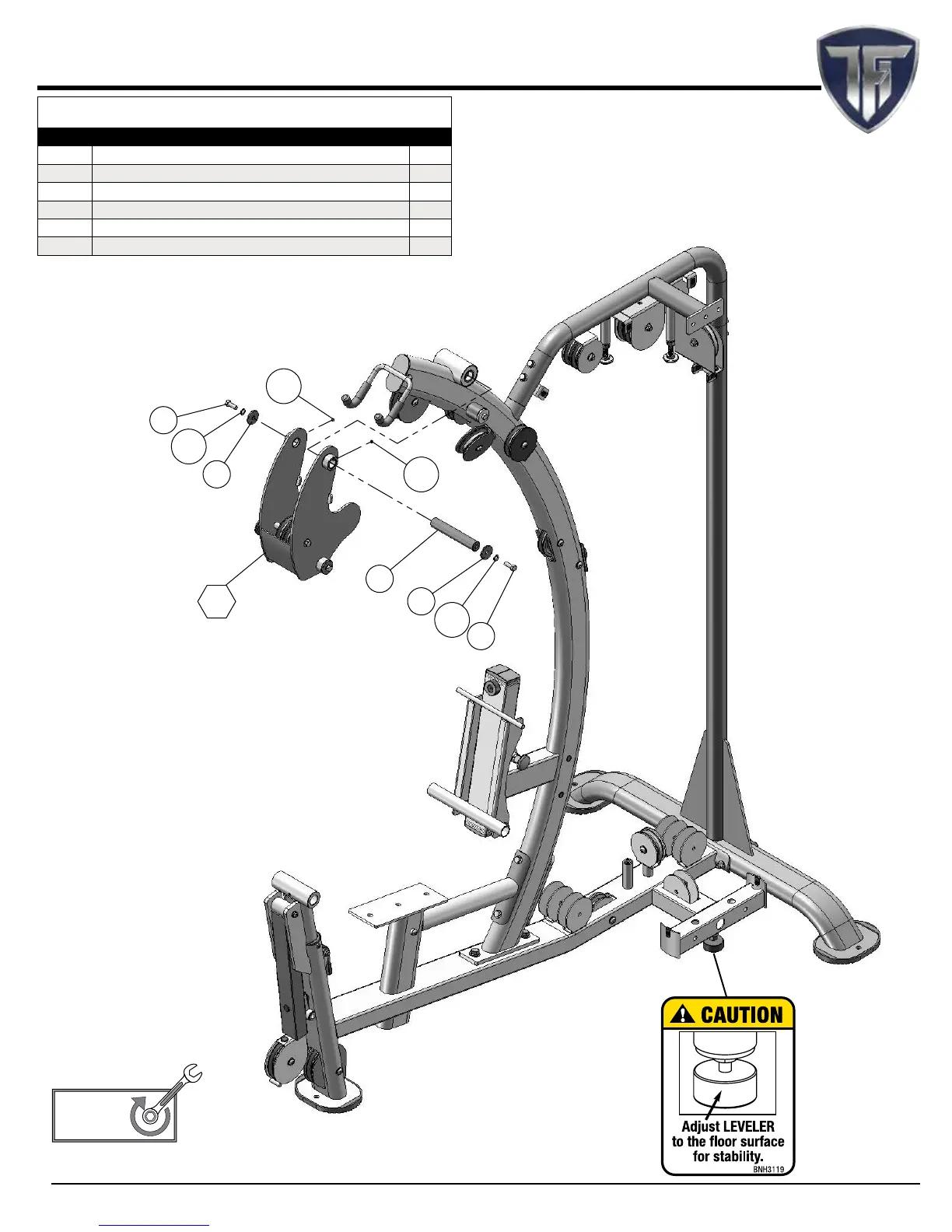

Step 3 Assembly List
Item # Description Qty.
19 PIVOT AXLE SS 1 RD CR X 6 1/32 1
*21 PRESS BAR HOUSING 1
41 SUPPORT WASHER Z/P 3/8 ID X 1 1/2 OD X 3/16 2
68 HEX HEAD CAP SCREW Z/P 3/8-16 X 1 2
109 SOCKET SET SCREW ALLOY 1/4-20 X 1/4 2
115 SPLIT LOCK WASHER Z/P 3/8” 2
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
