TuffStuff AXT-225 - Step 5 Assembly List

AXT-225 Deluxe Home Gym www.tustutness.com
19
83
68
115
62
36
41
69
27
13
35
97
97
62
115
68
*32
62

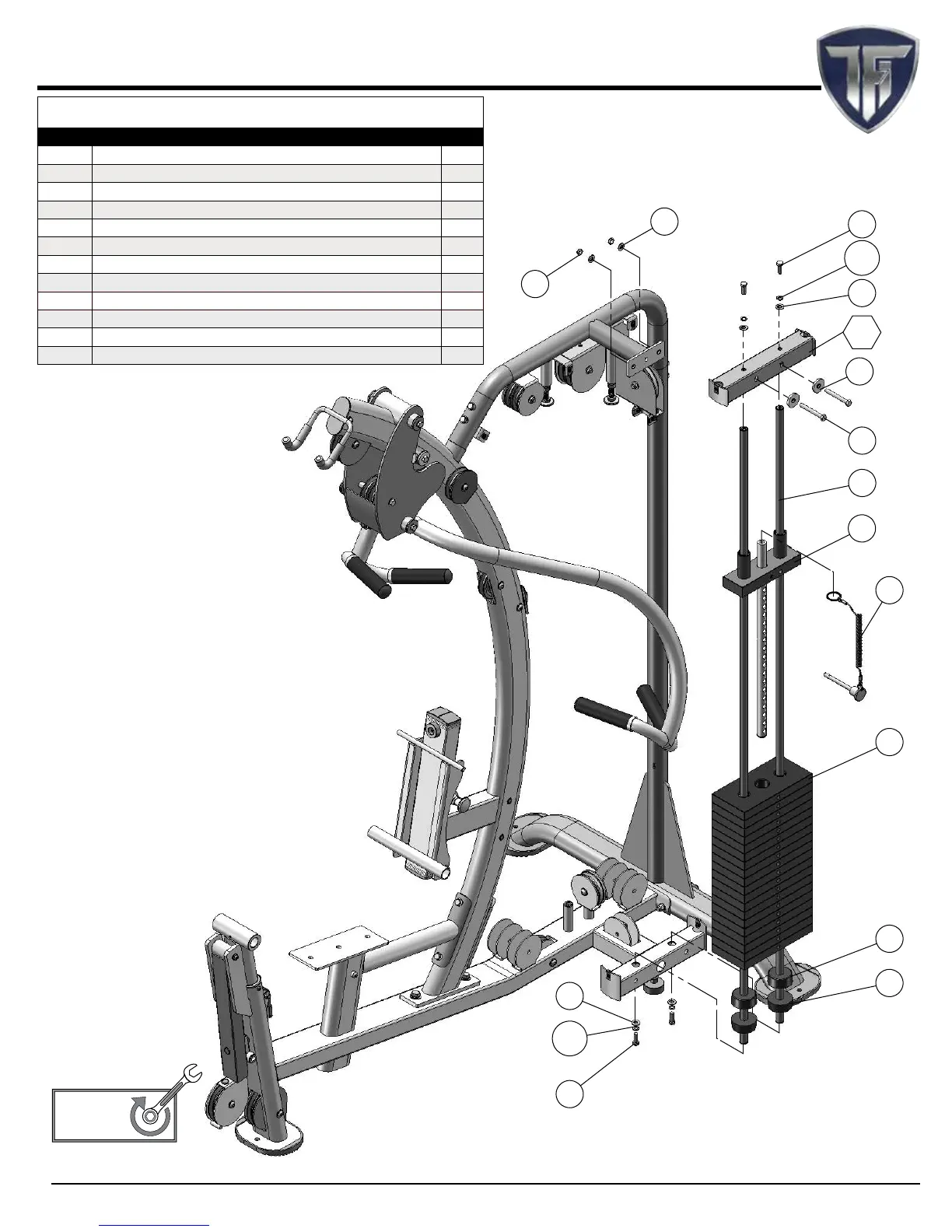

Step 5
Fully Tighten
Wrench tighten all hardware in this step.
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
Step 5 Assembly List
Item # Description Qty.
13 GUIDE ROD 3/4” X 73 13/16 2
27 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNOB 1
*32 TOP GUIDE ROD HOUSING 1
35 10 LB STEEL WEIGHT PLATE BLACK 19
36 10 LB TOP PLATE W/ADJ. SELECTOR BAR 1
41 SUPPORT WASHER Z/P 3/8 ID X 1 1/2 OD X 3/16 2
62 FLAT WASHER SAE Z/P 3/8” 6
68 HEX HEAD CAP SCREW Z/P 3/8-16 X 1 4
69 HEX HEAD CAP SCREW Z/P 3/8-16 X 3 2
83 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 2
97 RUBBER DONUT 3/4 X 2 1/2 4
115 SPLIT LOCK WASHER Z/P 3/8” 4
