AXT-225 Deluxe Home Gymwww.tustutness.com
20

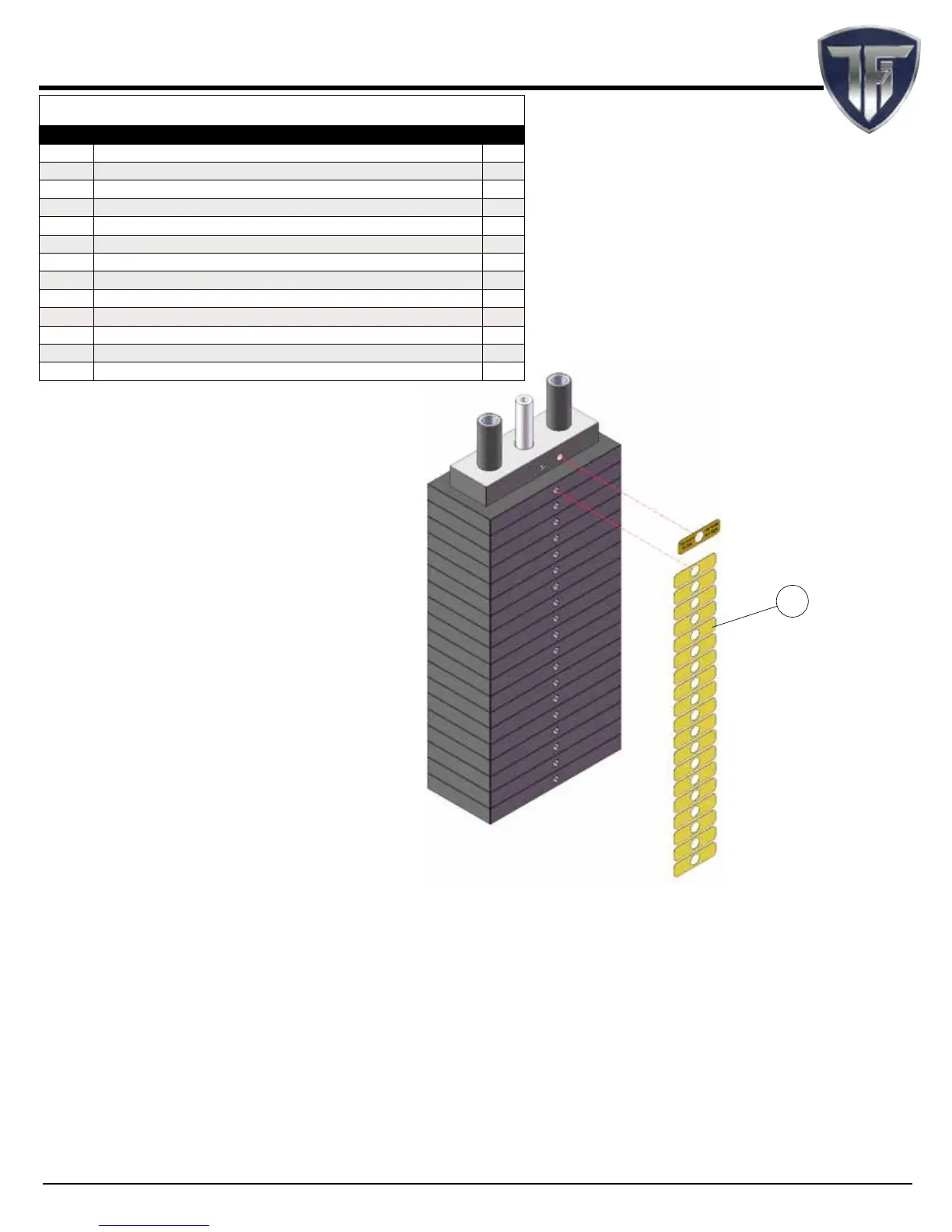

Step 6
Weight stack label and lubrication instructions
1� Wipe front surface of weight stack with rubbing alcohol and wipe dry�
2� Peel o back sheet (adhesive side) from label (#128) and make sure that the label remains
attached to the application tape�
3� Line up left edge of label sheet with outside edge of weight holes�
4� Line up the rst label to hole on top plate�
5� Make sure label is straight and slowly press into place�
6� Gently remove application tape and rub each label rmly against the weight stack�
7� Allow labels to stand for 2 days to allow adhesive to cure fully�
8� Open the lube package provided and apply a thin lm of lubricant around the rst 3 inches
of the guide rods above the top plate�
9� After the cables are installed, do a set of reps to spread the lubricant thoroughly�
NOTE:
1. TOP PLATE LABEL GOES ON HOLE OFF
CENTER AS SHOWN. LABEL WILL
COVER HOLE ON CENTER.
128
Step 6-7 Assembly List
Item # Description Qty.
*3 ADJUSTABLE DOUBLE PULLEY BRACKET 1
15 LAT CABLE 1
36 10 LB TOP PLATE W/ADJ. SELECTOR BAR 1
37 7/8 RD X 1 5/8 LINK 3/16 CABLE 1
56 CABLE STOPPER SHELL 1 1/2 X 1 3/4 1
58 COIL CHAIN Z/P 3/16 X 8 1
60 FINISHED HEX NUT Z/P 1/2-13 1
73 LAT BAR 1 1/4 ALUMINUM 1
86 OVAL HEAD PHILLIPS MACHINE SCREW Z/P #10-32 X 1 1/8 1
104 SNAP LINK Z/P 8MM X 80MM 2
112 SPLIT HEX TAP BOLT Z/P 1/2 -13 X 3 1/2 1
113 SPLIT LOCK WASHER Z/P 1/2” 1
128 DECAL NUMBERS 10-200 LBS/KGS 7/8 X 3 YELLOW 1
To Next Page
