TuffStuff AXT-225 - Step 7 Lat Cable Routing

AXT-225 Deluxe Home Gym www.tustutness.com
21

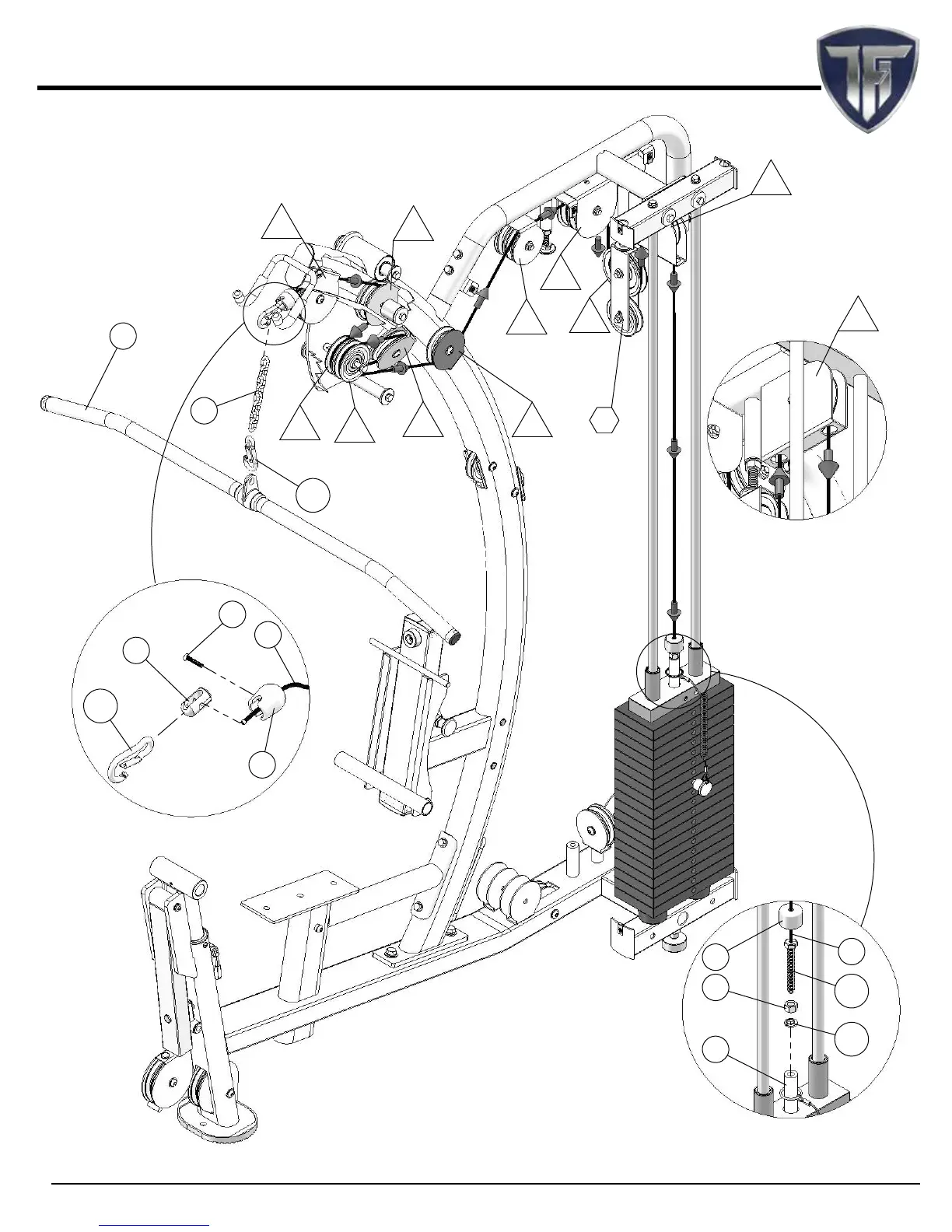

Step 7 Lat Cable Routing
J
I
73
104
58
A
B
C
E
D
F
G
H
*3
J
36
113
112
60
80
15
86
56
104
37
15
NOTE:
1. SOME PARTS CUT OUT/NOT SHOWN FOR CLARITY.
2. FOLLOW THE TRIANGLE BALLOONS TO PROPERLY
ROUTE THE CABLE.
3. USE GUIDE WIRE TO RUN CABLE BETWEEN
PULLEYS.
