TuffStuff AXT-225 - Step 9 Leg Extension;Curl Cable Routing

AXT-225 Deluxe Home Gymwww.tustutness.com
24

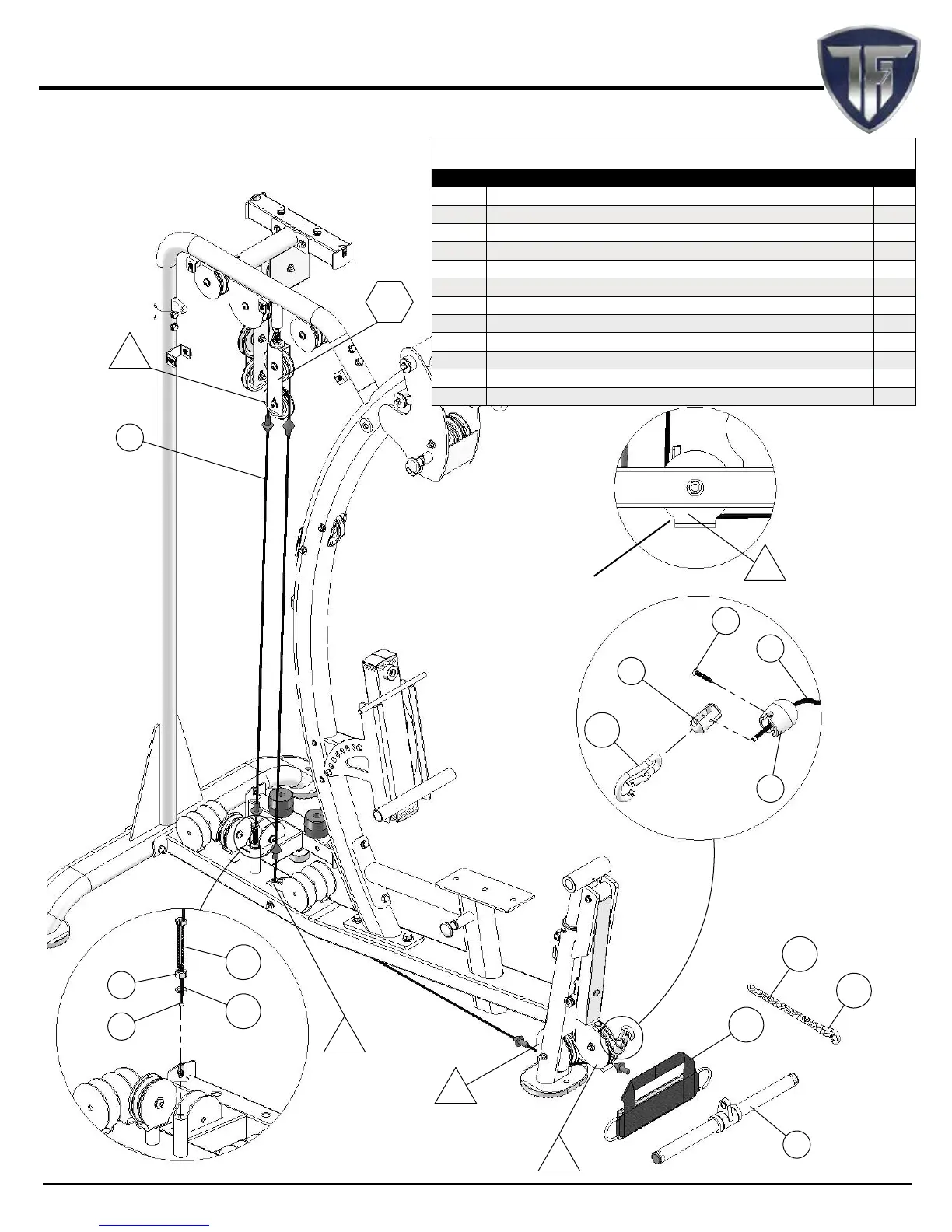

Step 9 Leg Extension/Curl Cable Routing
56
37
86
16
104
60
113
112
16
C
146
16
105
76
D
C
B
A
*151
104
Step 9 Assembly List
Item # Description Qty.
16 LEG EXT/CURL CABLE 1
37 7/8 RD X 1 5/8 LINK 3/16 CABLE 1
56 CABLE STOPPER SHELL 1 1/2 X 1 3/4 1
60 FINISHED HEX NUT Z/P 1/2-13 1
76 LOW ROW BAR 1 1/4 ALUMINUM 1
86 OVAL HEAD PHILLIPS MACHINE SCREW Z/P #10-32 X 1 1/8 1
104 SNAP LINK Z/P 8MM X 80MM 2
105 NYLON ANKLE STRAP 1
112 SPLIT HEX TAP BOLT Z/P 1/2 -13 X 3 1/2 1
113 SPLIT LOCK WASHER Z/P 1/2” 1
146 COIL CHAIN Z/P 3/16 X 12 1
*151 ADJUSTABLE DOUBLE PULLEY BRACKET 1
NOTE:
1. SOME PARTS CUT OUT/NOT SHOWN FOR CLARITY.
2. FOLLOW THE TRIANGLE BALLOONS TO
PROPERLY ROUTE THE CABLE.
MAKE SURE CABLE IS
INSIDE THE BRACKET
