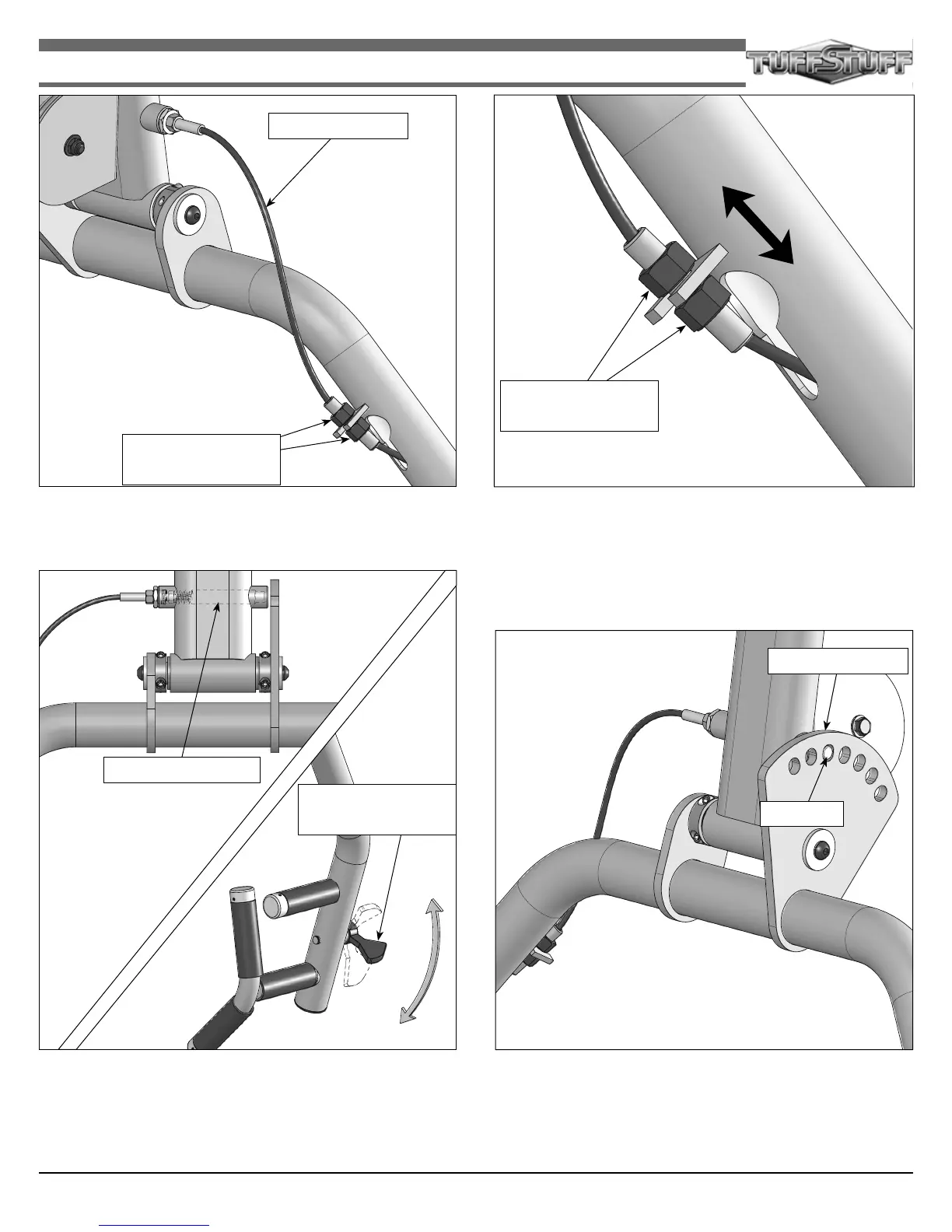

FIG. 5 Insure that the Cable Assembly is not bent
or damaged before tightening the Plunger Protrusion
Adjusting Nuts.
FIG. 6 Loosen the Plunger Protrusion Adjusting
Nuts with two 3/4 wrenches. Push the Plunger and
cable further into the Barrel or pull it out as necessary
to adjust the protrusion. When the fi nal adjustment has
been made, re-tighten the Plunger Protrusion Adjust-
ing Nuts.
FIG. 7 Before using the machine, be sure that the
Plunger fi ts easily into all seven (7) of the Adjustment
Plate Holes and that the end of the Plunger does not
make contact with the Adjustment Plate while chang-
ing from one position to the other.
Plunger
Adjustment Plate
FIG. 8 This illustration depicts the ideal setting for the
plunger, as shown fl ushed with the outside surface of
the Adjustment Plate.
Plunger Protrusion
Adjusting Nuts
Plunger Protrusion
Adjusting Nuts
Cable Assembly
Lever Engages and
Disengages Plunger
Disengaged Plunger
Step 21 Spring Loaded Pin Adjustment
43AXT-5S_AXT-5D AXT- Pro-Style Home Gym
