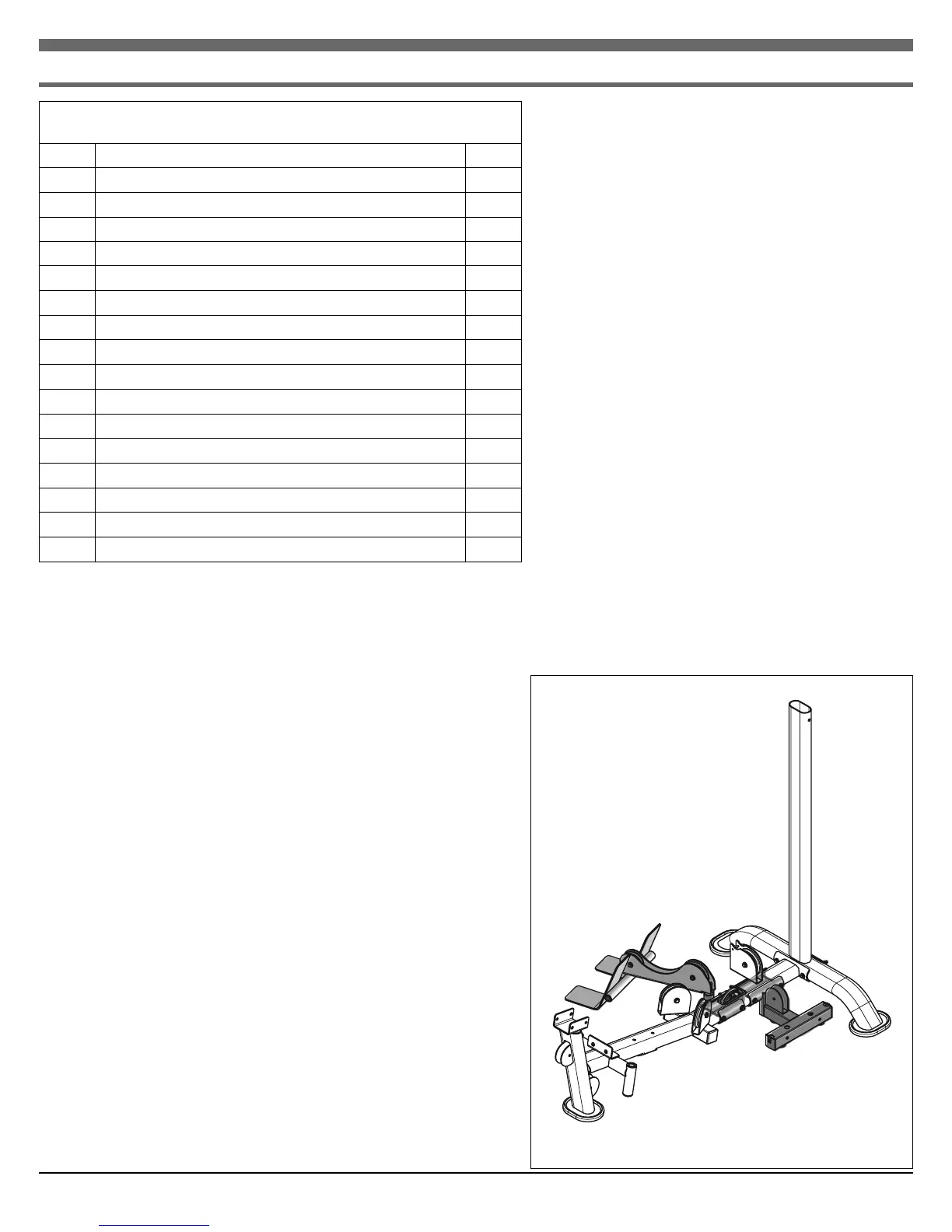

TuffStuff AXT-5D - Page 6

Assembly List
Item # Description Qty.
9 BOTTOM GUIDE ROD RETAINER 1
16 FOOT SUPPORT 1
25 LOW ROW FRAME CONNECTOR ASSEMBLY 1
34 REINFORCEMENT PLATE 1/4 X 2 X 5 (BEND) 1
35 REINFORCEMENT PLATE 1/4 X 2 X 7 (BEND) 1
65 PULLEY 3/8 X 1 X 3 1/2 1
66 PULLEY 3/8 X 1 X 4 1/2 2
72 BUTTON HEAD SOC CAP SCREW B/O 3/8-16 X 1 1
75 CHROME WASHER 3/8 X 1 1/2 1
101 FLAT WASHER SAE B/O 3/8” 12
111 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 2
121 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 5 1/4 4
134 NYLON INSERT LOCK NUT B/O 3/8-16 4
137 NYLON INSERT JAM LOCK NUT B/O 3/8-16 2
166 SPLIT LOCK WASHER B/O 3/8” 1
Step 2
6 AXT-5S_AXT-5D AXT- Pro-Style Home Gym
