TuffStuff CDP-300 - Page 17

20
44
43
43
31
*5
40
38
45
42
45
*7
*7
42
45
45
38
40
20
31
43
43
44
*6
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.

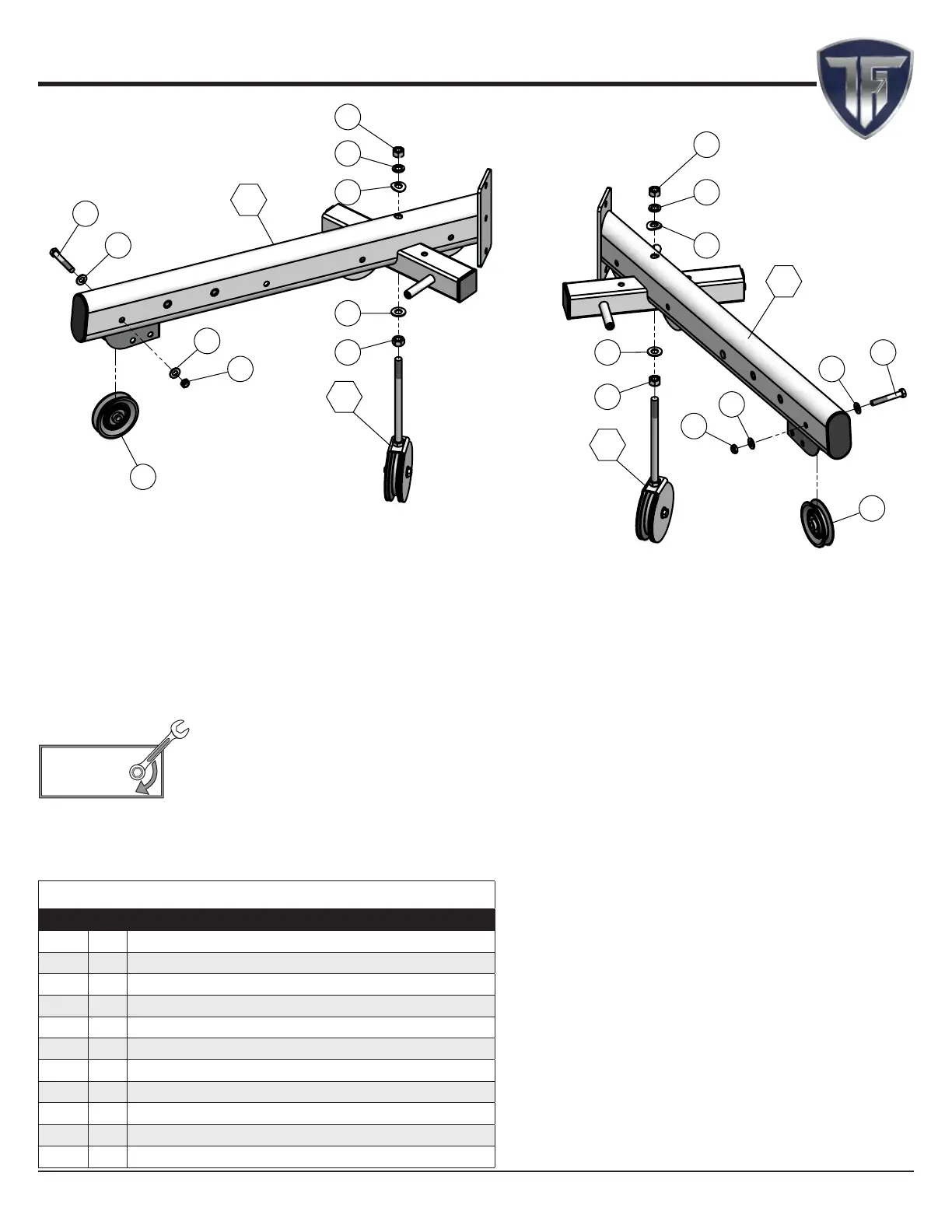

Step 5
Step 5 Assembly List
Item Qty. Description
20 2 BLACK NYLON PULLEY WIDE GROOVE 3/8 X 1 X 3 1/2
31 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 9/16
38 2 SPLIT LOCK WASHER Z/P 1/2"
40 2 ARC WASHER SAE Z/P 1/2"
42 2 FLAT WASHER SAE Z/P 1/2"
43 4 FLAT WASHER SAE Z/P 3/8"
44 2 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
45 4 FINISHED HEX NUT Z/P 1/2-13
*5 1 TOP FRAME, LEFT SIDE ASSEMBLY
*6 1 TOP FRAME, RIGHT SIDE ASSEMBLY
*7 2 ADJUSTABLE PULLEY BRACKET ASSEMBLY
17CDP-300 Dual Adjustable Pulley System W/150 lbs Weight Stacks
