TuffStuff CFM-550 - Exercise Bar Connections and Decals; Connecting Exercise Bars and Chains; Applying Weight Number Decals; Cable Adjustments Diagram

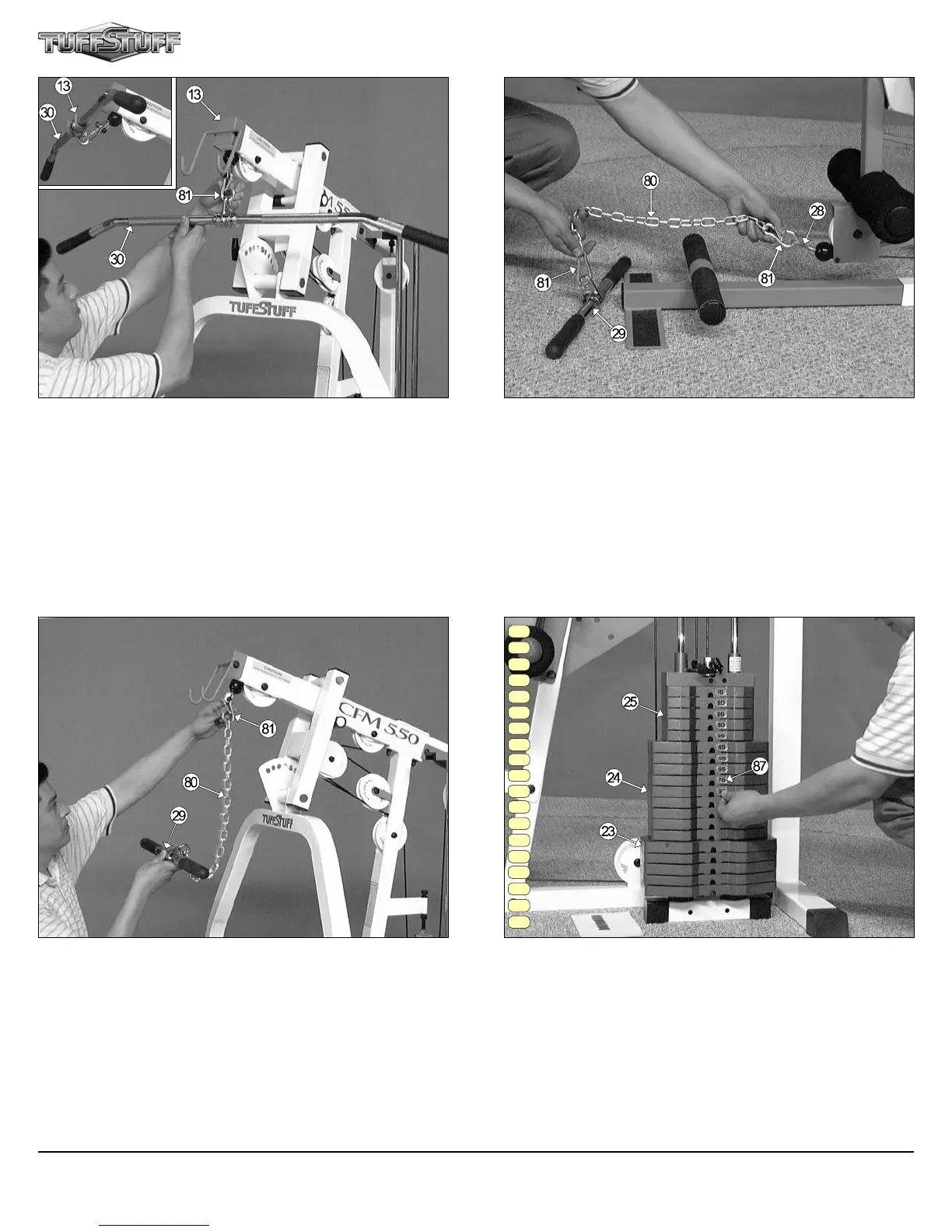

FIG. 60 Connect the Lat Bar 48” (#30) to the Lat Cable (#27) using
the Snap Link (#81), as shown above. Use the Lat Bar Holder (#13) to
rest the Lat Bar 48” (#30) onto when not in use.
15
20
25
30
35
45
55
65
75
85
95
105
115
125
140
155
170
185
200
FIG. 62 Multiple exercise starting positions can be achieved by using
the Coil Chain (#80) as an extension to connect the Lat Bar (#30) or the
Low Row Bar (#29) to the Lat Cable (#27) with out loosing traveling
range on the Weight Stack.
FIG. 61 Locate the Coil Chain (#80) and two Snap Links (#81), and
attach them to the Low Row Bar 20” (#15) and to the Leg Extension
Cable (#28), as shown above.
CFM-550 Compact Frontal Machine
17
FIG. 63 Attach the Decal Weight Numbers (#87) to the Weight Plates
(#23, #24, #25) in the corresponding order. Begin with the 15 at the top,
20 next, and so on.
