56
57
8363
56
66
56
66
63
56
5
56
66
*18
56
*23
64
*26

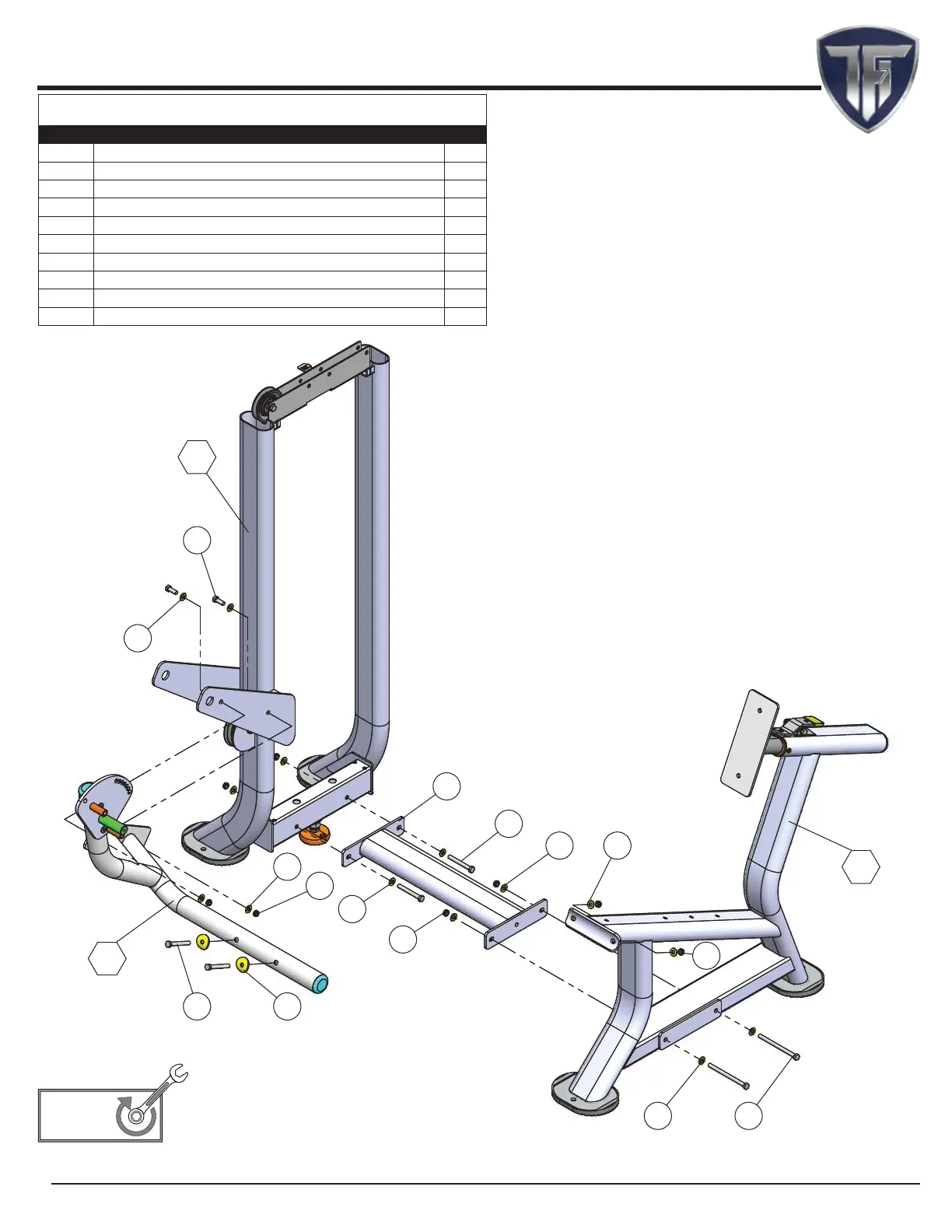

Step 1
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
NOTE:
1. It is strongly recommended that 2
people participate in the assembly of
this unit.
2. Be sure to hold the weight stack frame
perpendicular to fl oor before tightening
the screws.
Step 1 Assembly List
Item # Description Qty.
5 BOTTOM CROSS BRACE 1
*18 SEAT FRAME 1
*23 TOP CROSS BRACE 1
*26 WEIGHT STACK FRAME 1
56 FLAT WASHER SAE Z/P 3/8” 14
57 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 2
63 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3 4
64 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 5 2
66 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 8
83 U-SHAPE WASHER 3/8 ID X 1 1/2 OD X 3/16 THICK 2
www.tu stu tness.comCG-9514 Leg Extension/Curl
13
