TuffStuff CG-9514 - Assembly Step 2: Leg Adjustment Components; Installing Leg Holder and Pivot Arm

81
45
36
81
45
29
*6
29
81
*15
36
81
45
*22
17
*2
45

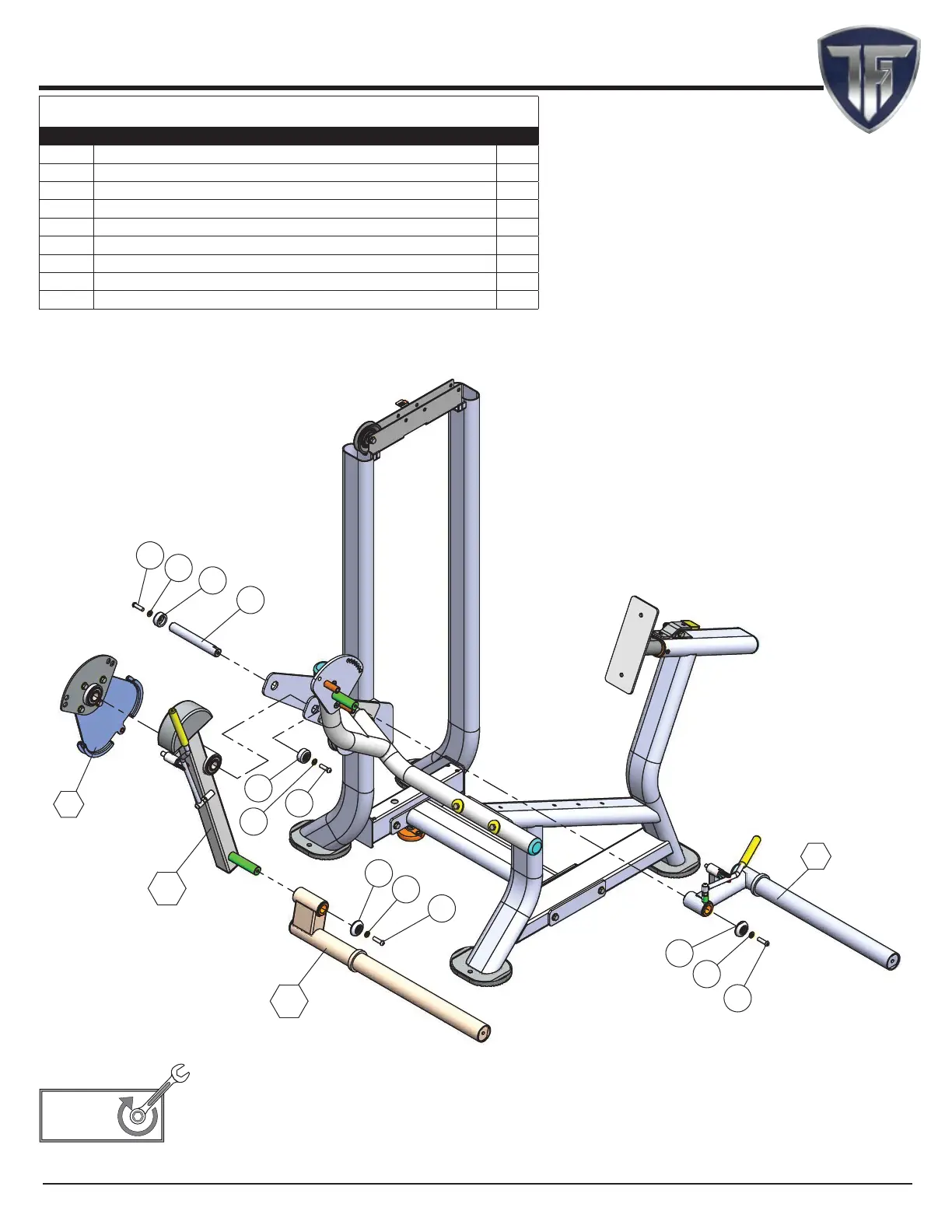

Step 2 Assembly List
Item # Description Qty.
*2 ADJUSTABLE LEG HOLDER 1
*6 CAM 1
*15 PIVOT ARM 1
17 PIVOT AXLE 1 RD X 7 1
*22 SWIVEL FOAM ROLL TUBE 1
29 ALUMINUM ROUND AXLE SMALL END CAP, 1 3/4 2
36 ALUMINUM ROUND AXLE END CAP, 1 3/4 2
45 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 1/4 4
81 SPLIT LOCK WASHER Z/P 3/8” 4
Step 2
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
CG-9514 Leg Extension/Curlwww.tu stu tness.com14
