TuffStuff CG-9514 - Assembly Step 3: Handlebar Attachment; Securing the Handles to the Frame

55
63
56 *11
66
Step 3
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.

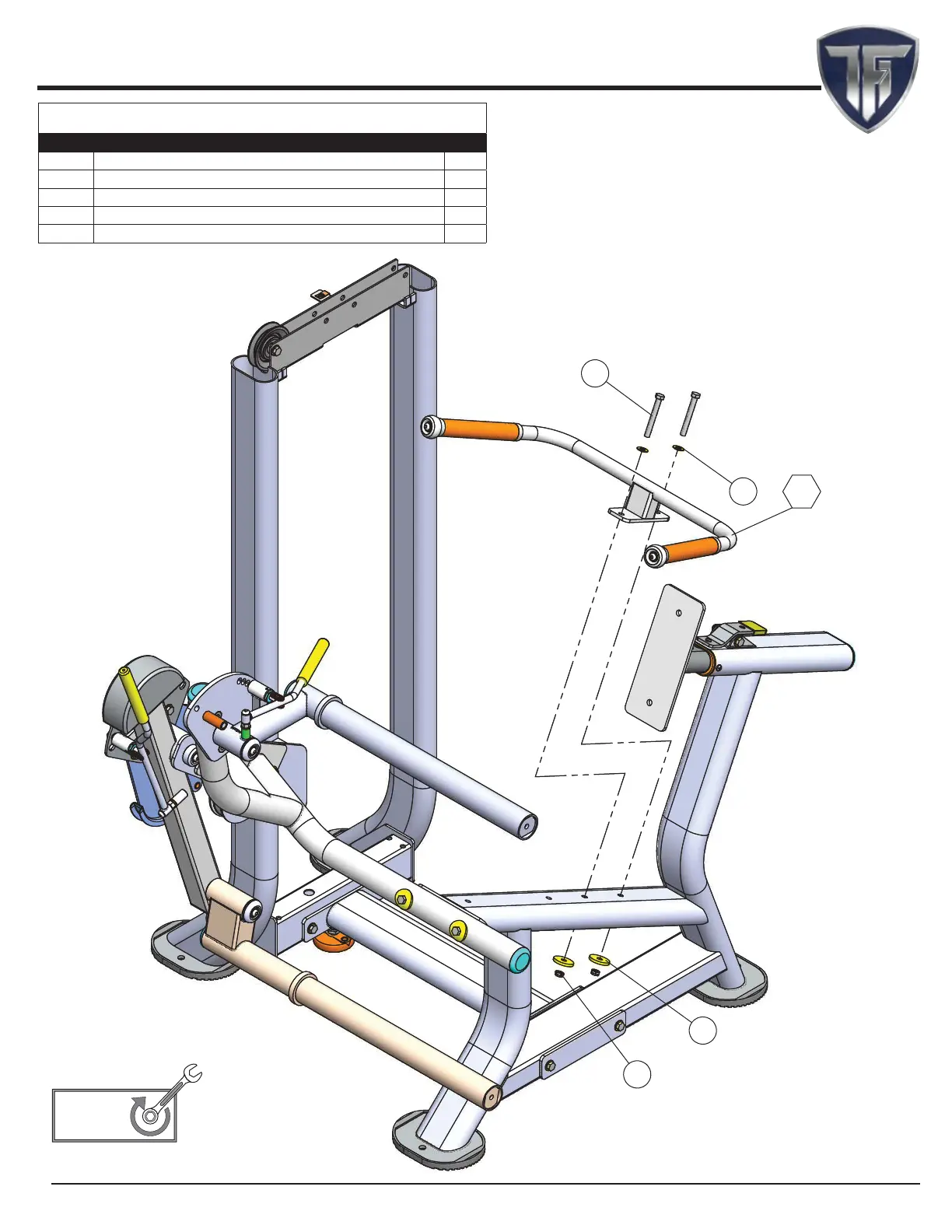

Step 3 Assembly List
Item # Description Qty.
*11 HANDLES 1
55 FLAT WASHER 3/8 ID X 1 1/2 OD X 3/16 THICK 2
56 FLAT WASHER SAE Z/P 3/8” 2
63 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3 2
66 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 2
