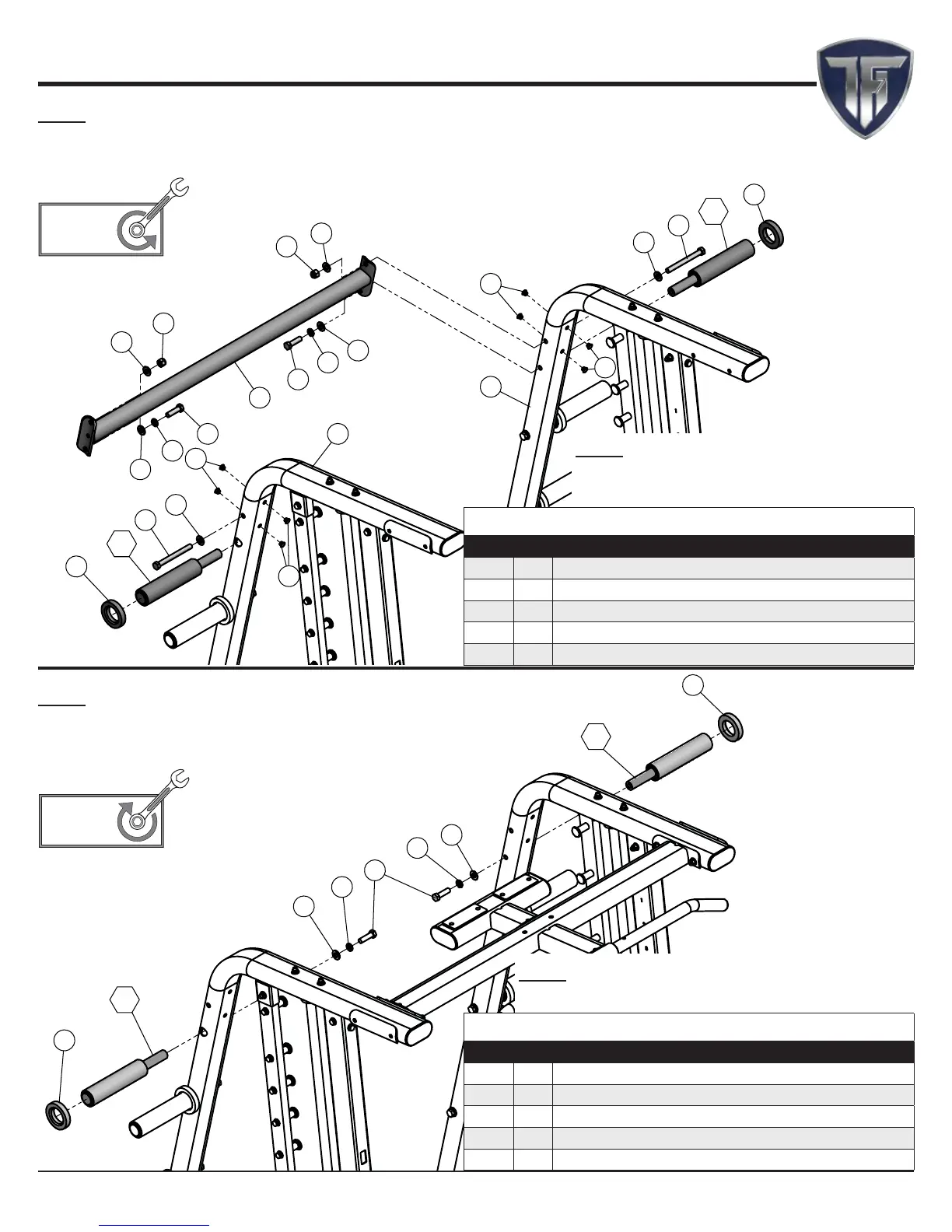

Step 1 (Remove CSM-600 Top Cross Brace)
Note:
Before attaching the CHL-610WS to the CSM-600, please remove
the Top Cross Brace (#21) following the below illustration.
Note:
It is strongly recommended that two
people participate in this assembly step.
Step 1b ReAssembly List
Item Qty. Description
*17 2 OLYMPIC ADAPTER 1 X 8 X 3 9/16 AXLE ASSEMBLY
33 2 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 1 1/2
36 2 FLAT WASHER SAE Z/P 1/2”
38 2 SPLIT LOCK WASHER B-Z/P 1/2”
87 2 RUBBER WASHER 1 7/8 ID X 4 1/4 OD X 9/16 TK
Step 1a Remove List
Item Qty. Description
21 1 TOP CROSS BRACE
32 2 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 4 3/4
36 4 FLAT WASHER SAE Z/P 1/2”
40 2 NYLON INSERT LOCK NUT Z/P 1/2-13
78 8 NYLON SNAP-IN FINISHING PLUG 3/8”
100%
Remove
Remove hardware assemblies completely to
allow nishing successive assembly steps.
Note:
After Removing the Top Cross Brace (#21), reassemble the
Olympic Adapters (#*17) following the below illustration.
100%
Fully Tighten
Wrench tighten all hardware in this step.
Note:
Some parts have been removed for Clarity.
