Thank you for purchasing the CHL-610WS High/Low Pulley w/200 Lbs Weight Stack for CSM-600. This machine is part of the
Tu Stu line of quality strength training equipment. To maximize your use of the equipment, please study the Owner’s Manual thoroughly.
Registration, Service & Assembly
Loosely Tighten
70%
100%
Fully Tighten
Loosely Tighten
Loosely tighten all hardware in this step. DO NOT Fully
Tighten. Some component(s) may need pre-assembly
and or alignment during the assembly process.
Fully Tighten
Wrench tighten all hardware in this step.
Allow ample space around the machine for safe unrestricted use and
easier access.
Insert all bolts in the same direction. For aesthetic appearance, insert all
bolts in the same direction unless speci ed (in text or illustration) to do
otherwise.
Leave room for adjustments. Do not fully tighten fasteners until instructed
in the assembly steps to do so (to prevent any di culty with alignment of
parts during the assembly process). When not instructed, tighten fasteners
such as bolts, nuts and screws so the unit is stable, but leave room for
adjustments.
Assembly Tips
Read all “Notes” on each page before beginning each step.
While you may be able to assemble the CHL-610WS using the illustrations
only, IMPORTANT safety notes and other tips are included in the text.
Some pieces may have extra holes that you will not use. Use only those
holes indicated in the instructions and illustration.
NOTE: With so many assembled parts, proper alignment and adjustment
is critical. While tightening the nuts and bolts, be sure to leave room for
nal adjustments.
CAUTION: Obtain assistance from Tu Stu if you have di culty
assembling the CHL-610WS. Please do not attempt to complete the
assembly as this could result in equipment failure and serious injuries to
the users.

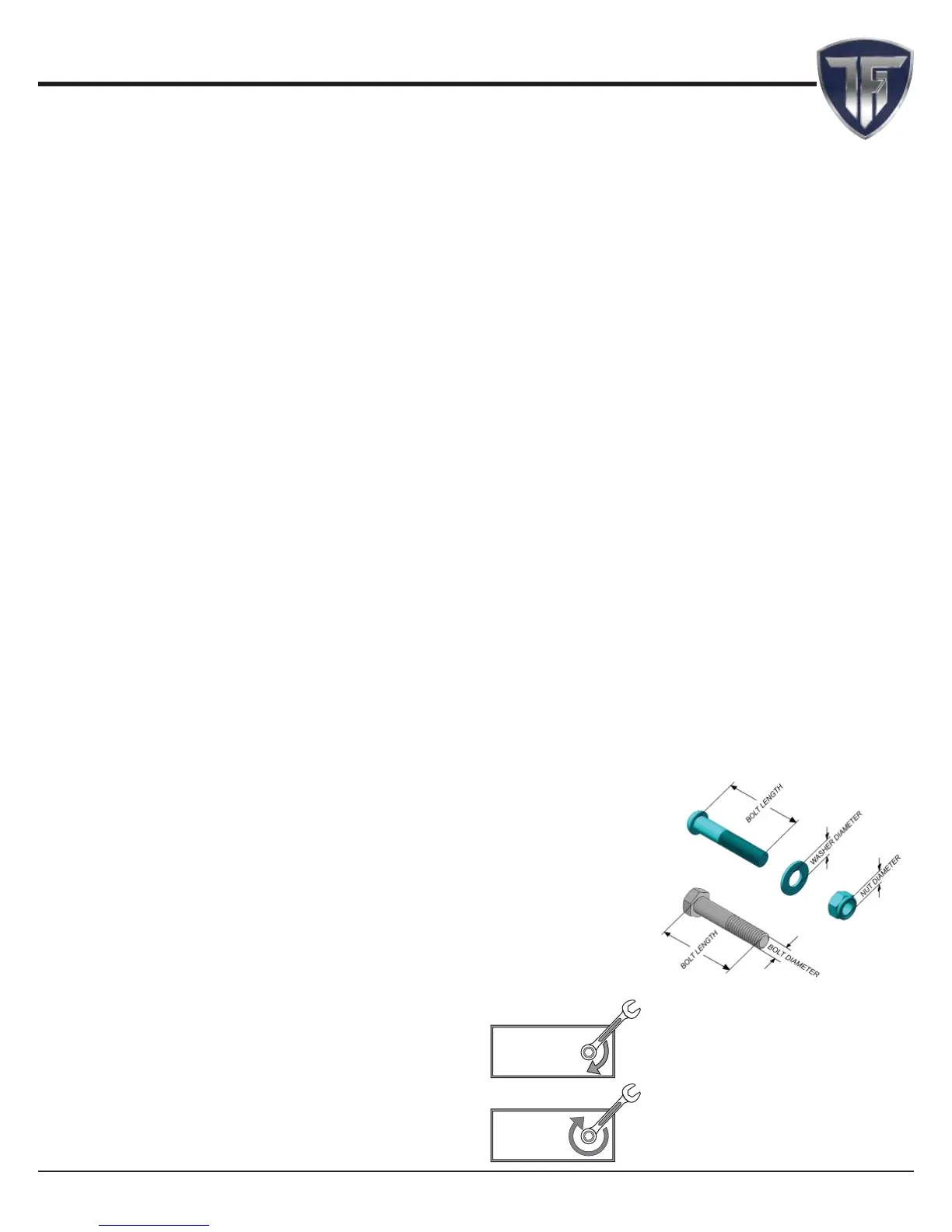

Symbols & Description
Required Tools
The basic tools that you will need to assemble the CHL-610WS but are not
limited to:
• 7/16”, 9/16”, 3/4” Combination Wrenches
• Ratchet Wrench with 7/16”, 9/16”, 3/4” sockets
• Crescent Adjustable Wrench
• External retaining ring pliers
• Rubber mallet, measuring tape & utility knife
• Super Lube® spray lubricant and grease
• Windex or household glass cleaner
Assembly Requirements
Follow these installation requirements when assembling the CHL-610WS.
Use the overhead view on the Content Page to layout your oor plan
before assembling.
Set up the CHL-610WS on a clean, solid, at surface. A smooth, at
surface under the machine helps keep it level.
Registration
To avoid unnecessary delays on warranty parts and to insure that a
permanent record of your purchase is on le with our company, be sure to
register online at:
http://www.tu stu tness.com
or mail to address shown below within 10 days of purchase.
Obtaining Service
Please use this Owner’s Manual as your guide to all parts included in
your shipment. When ordering parts, you must specify the part num-
ber and description from this manual. Use only genuine Tu Stu
replacement parts when servicing the equipment. Failure to do so
will void warranty and could result in serious injury or death.
For information about product operation or service:
Phone: 909-629-1600 Toll Free 888-884-8275
Fax: 909-629-4967
E-mail: service@tu stu .net or service1@tu stu .net
Hours: M–F 8:00 – 4:30 PST
Or write to: Tu Stu Fitness International, Inc.
Customer Service
13971 Norton Avenue, Chino, CA 91710
Retain this Owner’s Manual for future reference when ordering
service or parts. To assist you better, please be prepared to
provide the following information:
1. Model Number 2. Place of Purchase
3. Serial Number 4. Part # and Description
8 CHL-610WS High/Low Pulley w/200 Lbs Weight Stack for CSM-600
www.tuffstuffi tness.com
