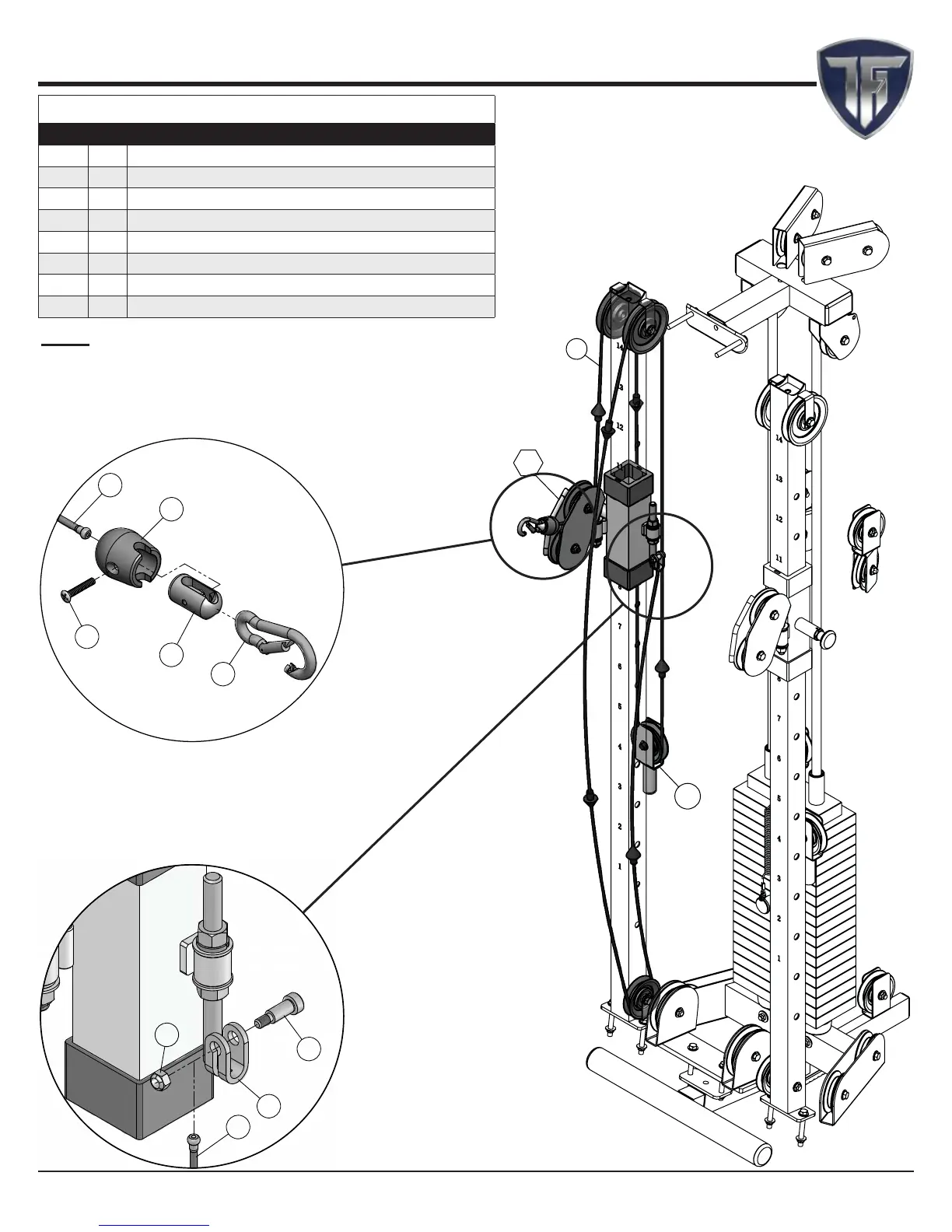

Step 15 Assembly List
Item Qty. Description
24 1 HIGH/LOW CABLE
31 1 SNAP LINK Z/P 8MM X 80MM
74 1 7/8 RD X 1 5/8 LINK 3/16 CABLE
75 1 CABLE STOPPER SHELL 1 1/2 X 1 3/4
76 1 OVAL HEAD SCREW Z/P #10-32 X 1 1/8
33 1 SHOULDER BOLT ALLOY 3/8 X 3/4
45 1 NYLON INSERT LOCK NUT Z/P 5/16-18
*13 1 FLOATING ADJUSTABLE PULLEY BRACKET ASM
Note:
Some parts have been removed for Clarity.
Step 15 Left Side High/Low Cable Assembly
