TuffStuff CHL-610WS - Page 27

25
*13
14
76
25
75
74
31
25
61
47
44
*13
Step 17 Assembly List
Item Qty. Description
25 1 LOW ROW CABLE
31 1 SNAP LINK Z/P 8MM X 80MM
44 1 SPLIT LOCK WASHER Z/P 1/2"
45 1 NYLON INSERT LOCK NUT Z/P 5/16-18
47 1 FINISHED HEX NUT Z/P 1/2-13
61 1 SPLIT HEX TAP BOLT GR-5 B/O 1/2-13 X 3 1/2
74 1 7/8 RD X 1 5/8 LINK 3/16 CABLE
75 1 CABLE STOPPER SHELL 1 1/2 X 1 3/4
76 1 OVAL HEAD SCREW Z/P #10-32 X 1 1/8
Note:
Some parts have been removed for Clarity.

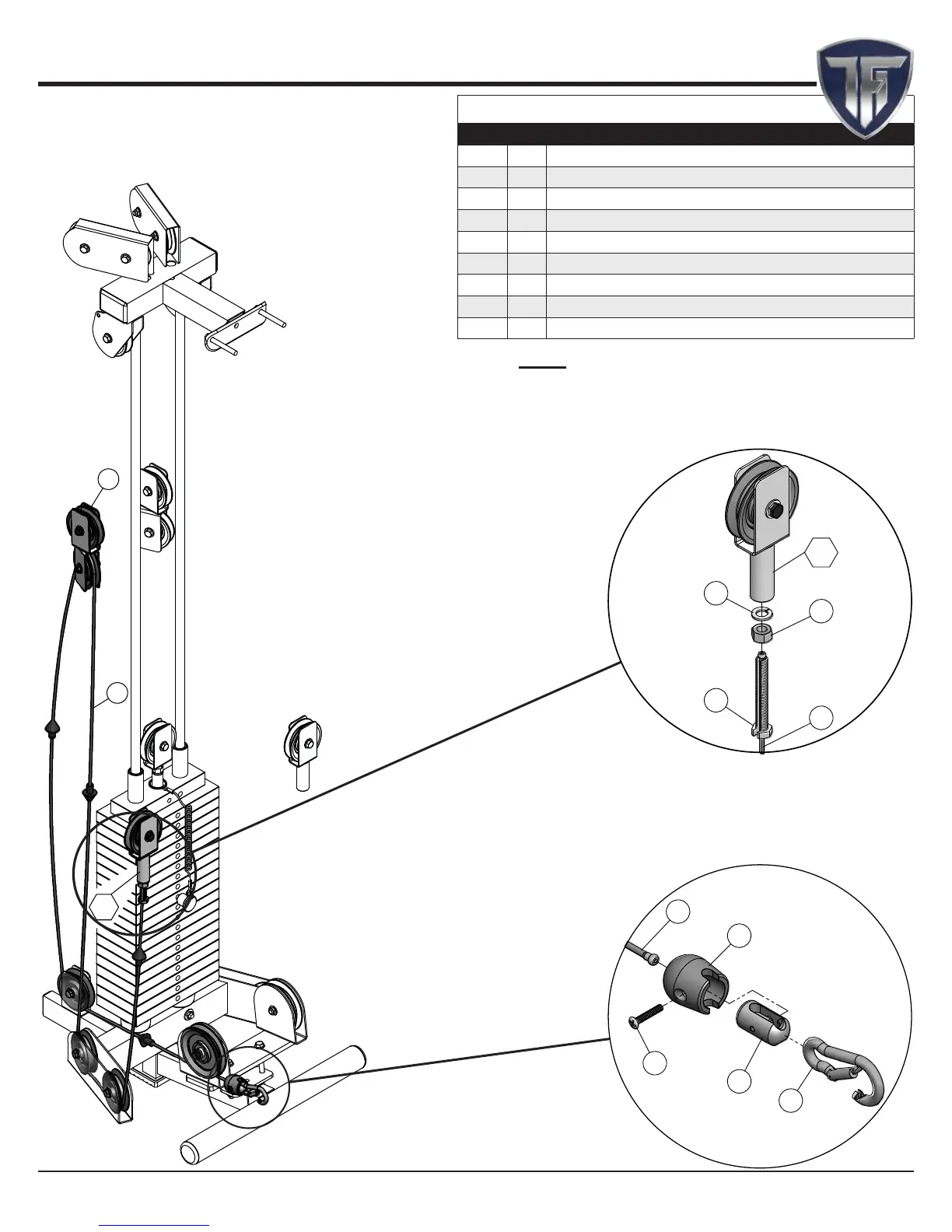

Step 17 Left Side Low/Low Cable Assembly
27CHL-610WS High/Low Pulley w/200 Lbs Weight Stack for CSM-600
