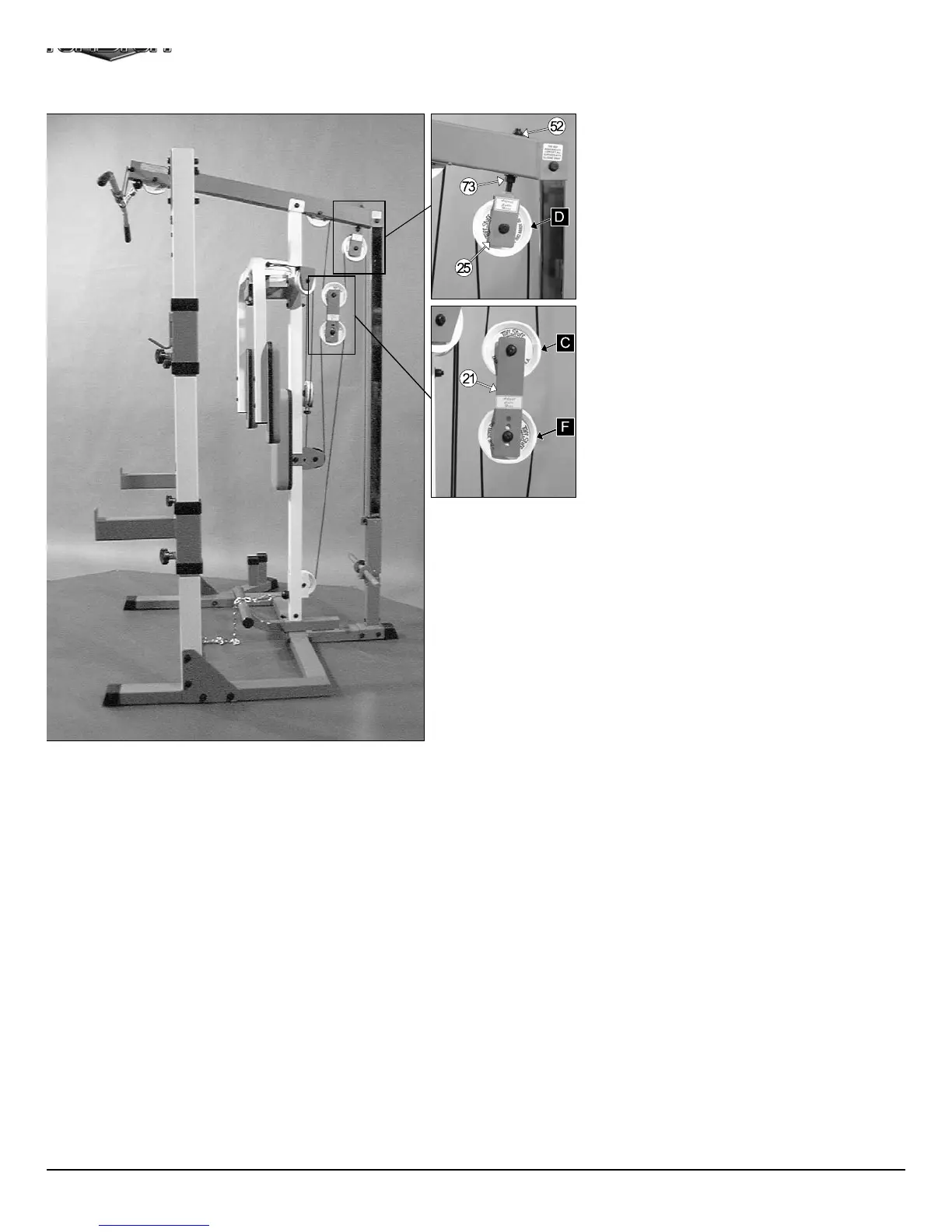

CABLE ADJUSTMENT DIAGRAM
Minor Cable Adjustment:
Use the Upper Swivel Pulley Bracket (#25)
1. Loosen the bottom Finished Hex Nut 12-13
(#73).
2. Adjust the top Nylon Insert Lock Nut 1/2-13
(#52) to give the cable proper tension.
3. Re-tighten the bottom Finished Hex Nut 12-13
(#73) to complete the cable adjustment.
Major Cable Adjustment:
Use the Double Pulley Plates (#21)
1. Remove the hardware from the Nylon Pulley 4
1/2” Rd. (#20-Labeled F) located at one of the
four holes on the Double Pulley Plates (#21).
2. By interchanging the Nylon Pulley 4 1/2” Rd.
(#20-Labeled F) in the Double Pulley Plates
(#21) to the next adjustment hole it will make
one inch cable adjustment.
3. Re-tighten the hardware for the Nylon Pulley 4
1/2 Rd. (#20-Labeled F) to complete the cable
adjustment.
15
