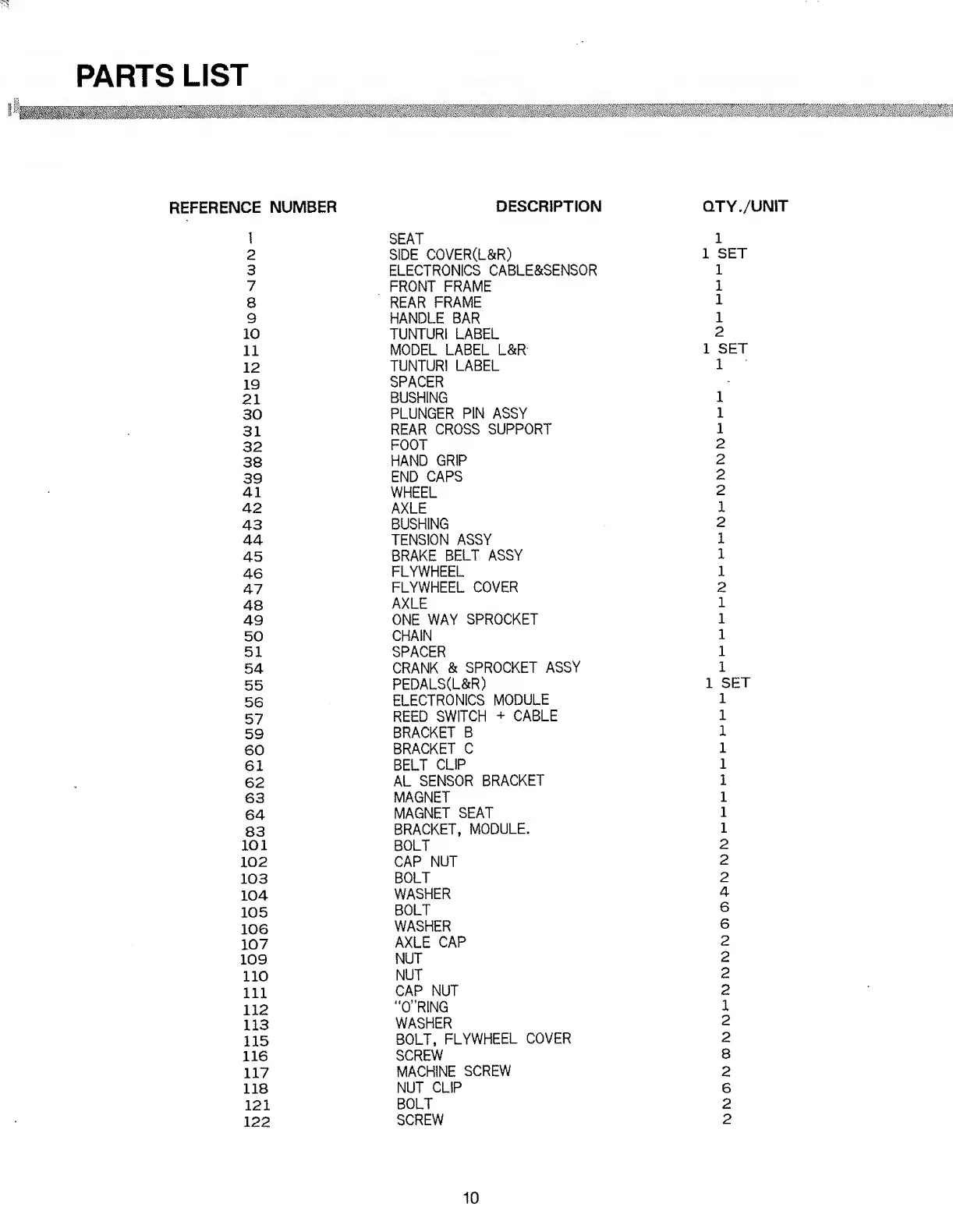

PARTS LIST
REFERENCE NUMBER
DESCRIPTION QTY./UNIT
1
2
3
7
8
9
10
11
12
19
21
30
31
32
38
39
41
42
43
44
45
46
47
48
49
50
51
54
55
56
57
59
60
61
62
63
64
83
101
102
103
104
105
106
107
109
110
111
112
113
115
116
117
118
121
122
SEAT 1
SIDE COVER(L&R) 1 SET
ELECTRONICS CABLE&SENSOR 1
FRONT FRAME 1
REAR FRAME 1
HANDLE BAR 1
TUNTURl LABEL 2
MODEL LABEL L&R 1 SET
TUNTURi LABEL 1
SPACER
BUSHING 1
PLUNGER PIN ASSY 1
REAR CROSS SUPPORT 1
FOOT 2
HAND GRIP 2
END CAPS 2
WHEEL 2
AXLE 1
BUSHING 2
TENSION ASSY 1
BRAKE BELT ASSY 1
FLYWHEEL 1
FLYWHEEL COVER 2
AXLE 1
ONE WAY SPROCKET 1
CHAIN 1
SPACER 1
CRANK & SPROCKET ASSY 1
PEDALS(L&R) 1 SET
ELECTRONICS MODULE 1
REED SWITCH + CABLE 1
BRACKET B 1
BRACKET C 1
BELT CLIP 1
AL SENSOR BRACKET 1
MAGNET 1
MAGNET SEAT 1
BRACKET, MODULE. 1
BOLT 2
CAP NUT 2
BOLT 2
WASHER 4
BOLT 6
WASHER 6
AXLE CAP 2
NUT 2
NUT 2
CAP NUT 2
“0”RING 1
WASHER 2
BOLT, FLYWHEEL COVER 2
SCREW 8
MACHINE SCREW 2
NUT CLIP 6
BOLT 2
SCREW 2
10
