F 2 O O
B01 Main frame 1
C01 Upright post 1
C07 Hand Pulse Sensor 2
C08 Hand Pulse wire 1
C09 M4x18 DIN 7985 Screw 2
C10 Handle Bar 1
C11 Handle Sponge 2
C12 End cap for handle bar 2
C13 - 1/2” Cap 1
C15 EU Meter 1
C15 GB/US Meter 1
C16 M5x8 DIN 7985 Screw 4
*C18 M8x15 DIN 912 Socket bolt 8
*C19 M8x60 DIN 603 Bolt 1
D02 Shaft 1
D03 Ball bearing 6004 ZZ 2
D04 C-clip (S-20) 3
D05 Fly wheel 1
D06 Belt 1
D07 Magnet 1
D08 Beltwheel bracket 1
D09 M8 DIN 127 Spring Washer 4
D10 Crank (R) 1
D11 Crank (L) 1
D12 M8x20mm Hexagonal nut 2
D13 M8x20 DIN 933 Hexagonal bolt 4
D14 Crank cover 2
D15 Pedal (R) 1
D16 Pedal (L) 1
D17 Pedal strap (R) 1
D18 Pedal strap (L) 1
D19 Nut 1
E01 Seat post 1
*E06 M8 DIN 125 Washer 4
E07 Seat 1
*E08 M8 DIN 985 Nylon nut 4
E10 Locking knob 1
E11 Locking nut 1
E13 Seat post sleeve 1
E15 M4x10 DIN 7985 Screw 2
E16 M4 DIN 934 Nut 2
E19 - 3/8” Nut 2
F01 Magn. resistance system 1
G02 Rear support tube 1
G06 - 3” End cap 4
G12 Transportation wheel 2
G14 Rivet 4
H02 Tension knob 1
H03 - M5x20 mm Screw
1 H04 Tension cable 1
R01 Dancing plate 1
R03 Ball bearing 6204 ZZ 1
R05 Spring 1
R08 Dancing plate xture 1
S01 Right cover 1
S02 Left cover 1
S03 Front cover 1
S04 Rear cover 1
S05 M4x12DIN7500C Self tapping screw 5
S06 M4x16DIN7500C Self tapping screw 6
W01 Sensor wire 600mm 1
W02 M3x8 DIN7504N Screw 2
W03 Meter wire 1000mm 1
* 553 0015 Assembly kit (incl. *) 1
* 553 101 Screw - shaped 1
* 553 100 88 Multi purp. wrench 1
* 556 031 Allen key 5 mm 1
- 583 0010 Owner’s manual 1

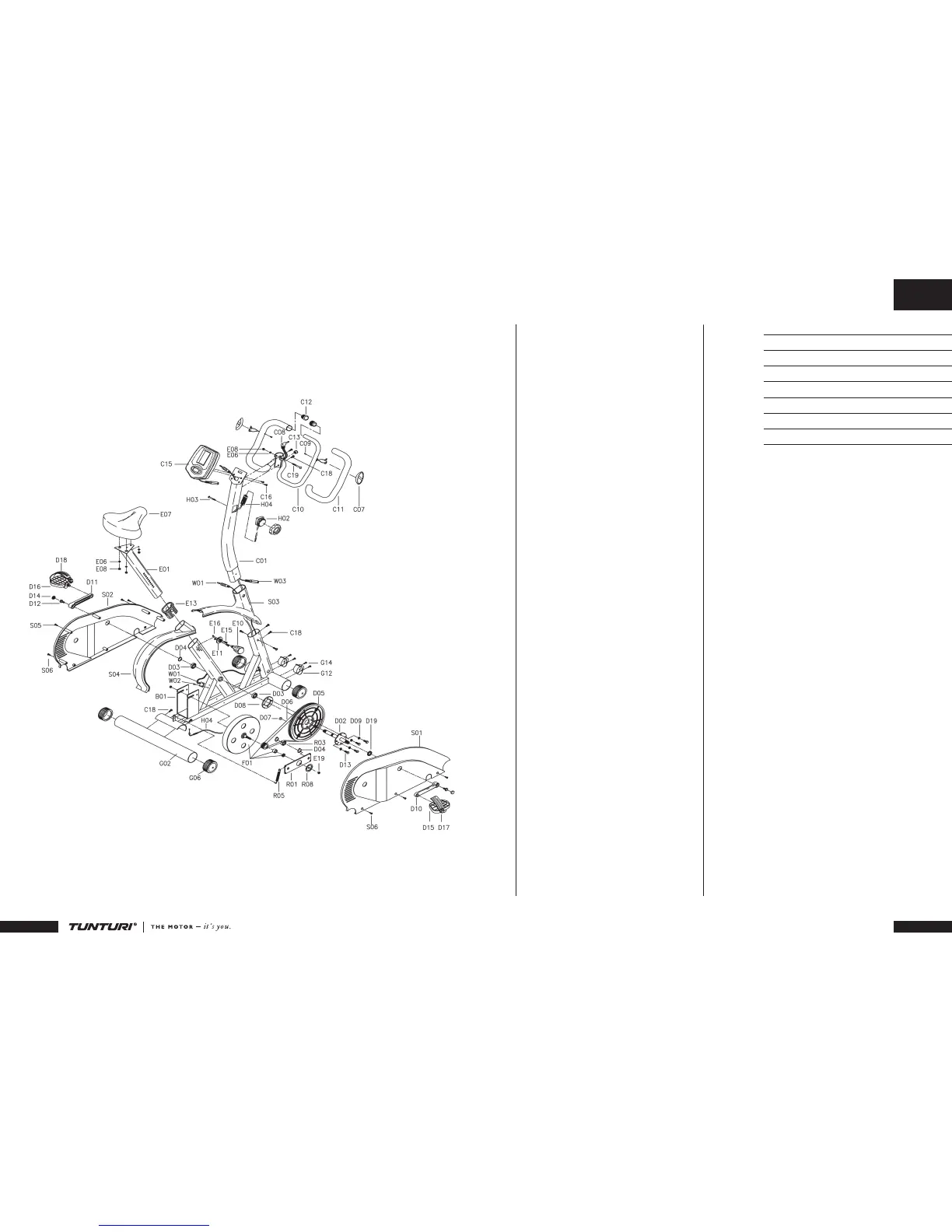

SPARE PART LIST
ERSATZTEILLISTE
LISTE DES PIÈCES DÉTACHÉES
JUEGO DE HERREMIENTAS
UTENSILI
GEREEDSCHAP SET
MONTERINGSSATS
VARAOSALUETTELO
