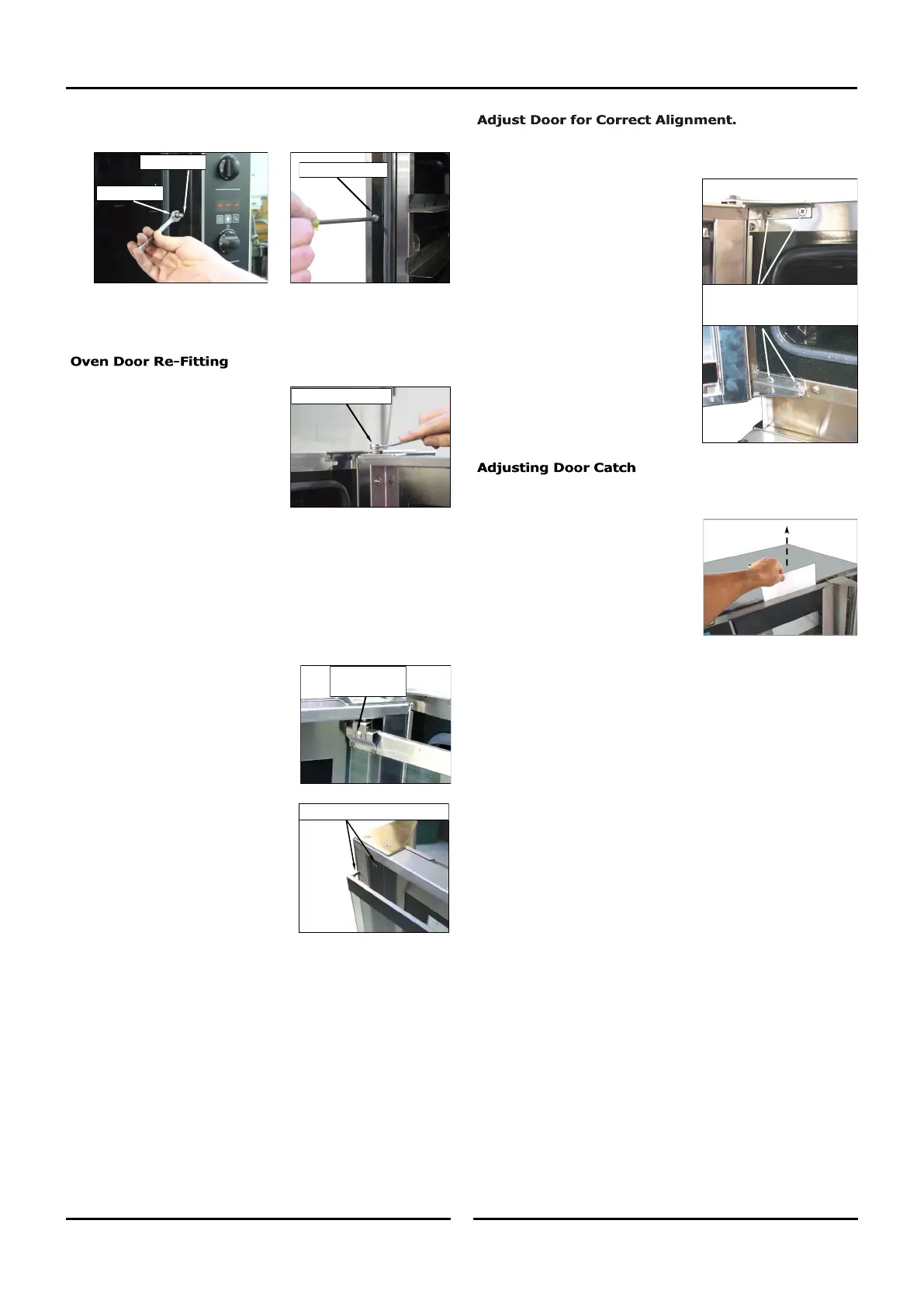

Appendix 1 - Reversing the Oven Door
29 29
18. Remove Blanking Screw and Door Catch from front of oven and
swap around (refer ‘Adjusting Door Catch’).
19. Fit door spacers removed at Item 13 previously, to lower hinge
pivot bolt.
Fit the Door.
1. Refit oven door by locating bottom
of door onto bottom hinge plate
pivot bolt and spacers.
2. Fit top of door into top hinge plate
and secure with top pivot bolt.
Fit Inner Glass to Door.
NOTE: It is important to ensure that the inner glass is fitted
correctly and that the glass pivots at the hinge end of
the door and not the handle end.
3. Fit pivot spacer removed at Item 3 on previous page, to the
lower inner glass pivot and locate inner glass lower pivot into
position on inside of door.
4. Locate top pivot of inner glass into
top of door and secure in position
with inner glass retaining clip.
5. Lift inner glass up onto locking catch
to lock glass into position.
Top Door Pivot Bolt.
Inner Glass Locking Catch
Screw and
Retaining Clip.
Check alignment and operation of the door. Ensure that the door is
correctly aligned horizontally and vertically.
1. To align, slacken off the upper and
lower hinge plates and correctly
align the door. Re-tighten both
hinge plates.
2. Check that the roller catch correctly
retains door in the closed position.
3. To adjust, slightly loosen screws
securing roller catch and close the
door. The roller catch will
centralise itself.
4. Open door and tighten roller catch
securing screws.
If the door sealing requires adjustment, carry out the following to
adjust the door catch:-
1. Check that the door seals correctly
when closed, by placing a sheet of
paper between the door and the
seal.
2. Close the door on the paper and
attempt to withdraw the paper by
firmly tugging on the paper. The
paper should just pull out with
some resistance but without
tearing.
3. To adjust the door catch, loosen the locking nut on the door
catch:-
a. If the paper withdraws easily,
screw the door catch ‘In’ by
½ a turn
and repeat the test above until adjusted
correctly.
b. If the paper cannot be withdrawn and the door springs
open,
screw the door catch ‘Out’ by ½ a turn
and repeat
the test above until adjusted correctly.
4. Tighten the locking nut on the door catch.
Slacken these screws to adjust
door vertically - horizontally.
Door Catch
Locking Nut
Blanking Screw
