Designing a system
To design a system begin by defining the venue/audience areas by clicking on the “Audience
Area” tab in the bottom left of the screen.
Within this window you can edit or remove existing audience areas, and create new ones.
There are two methods of defining an audience area. In either case you must define the
X1/Y1 coordinate of the start of the area, you can then either enter the X2/Y2 points or its
length and angle.

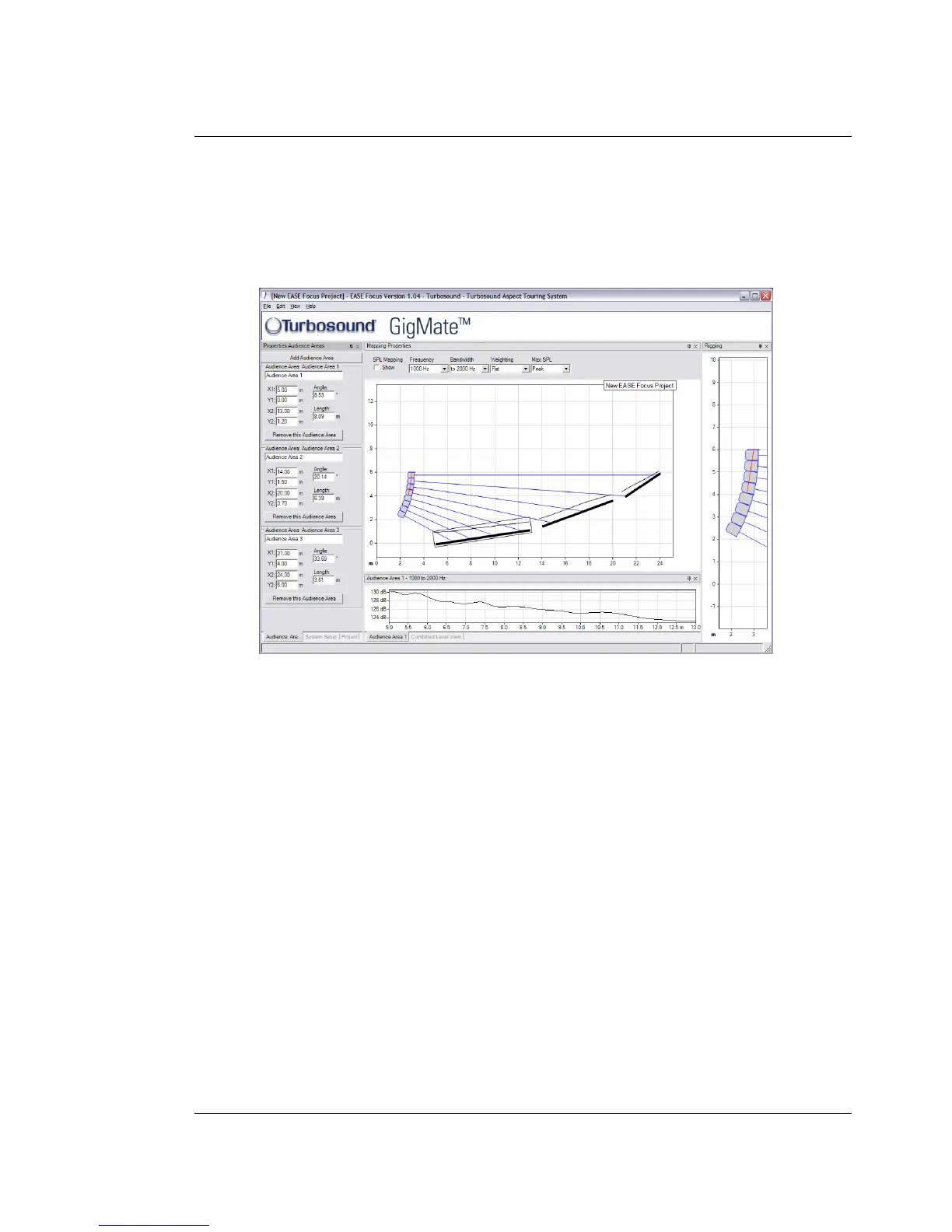

As you create audience areas they are show graphically in the main window.
The next step is to design the loudspeaker array using the System Setup window. Select the
System Setup tab in the bottom left of the screen and begin by choosing the desired flybar or
groundstack in the drop down box at the top left of the window.
