TA-880 user manual
Page 37
Flying a cluster of TA-880 trapezoidal cabinets
Aspect trapezoidal flybar configurations offer two basic configurations for assembling arrays,
two-wide and three-wide. These configurations will cover the majority of applications,
providing up to a maximum 75° of horizontal coverage. For more complex installations or
touring applications multiple flybars can be used in a modular fashion.

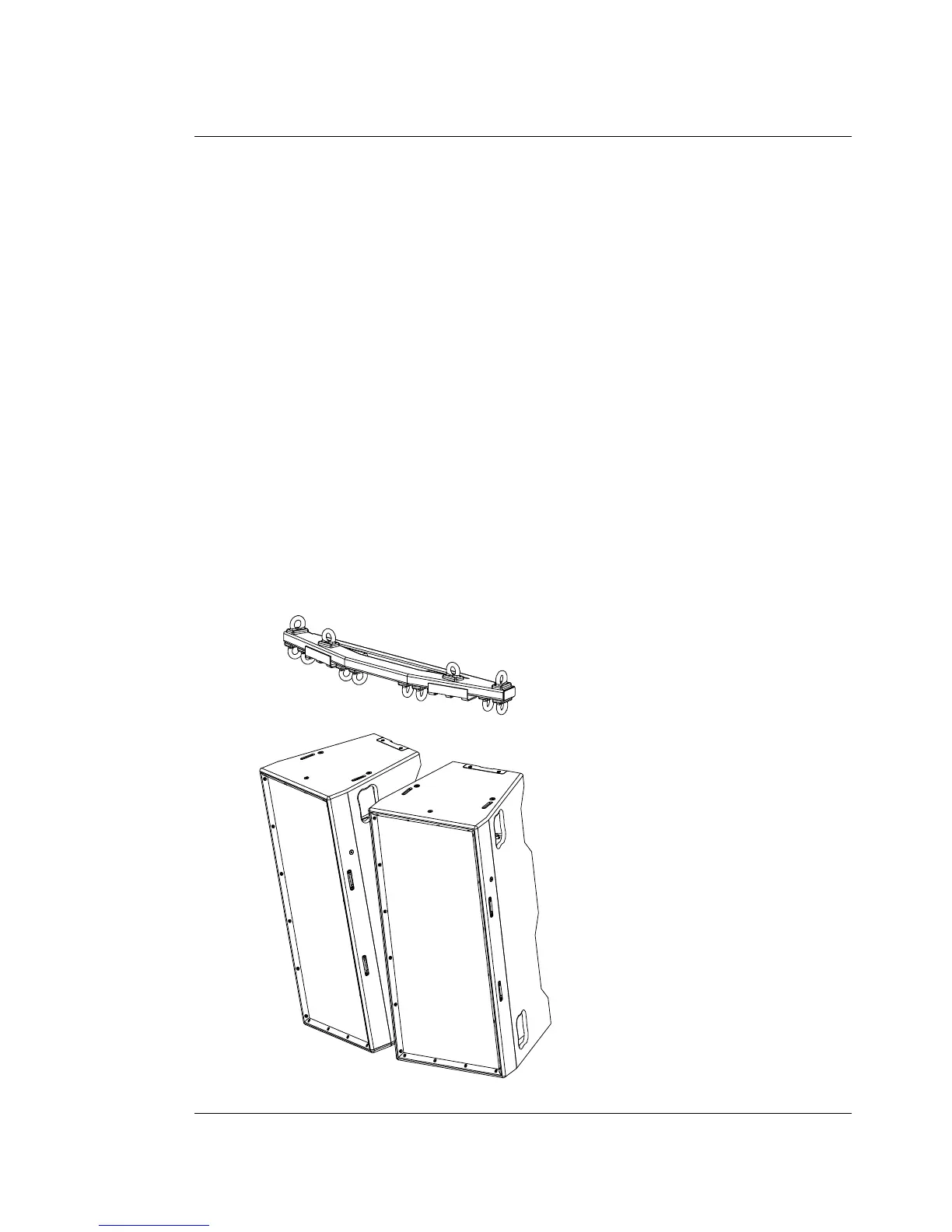

Single horizontal row
Parts required: 1 x FB-880/2W flybar
4 x FC-880 choked chain assembly
4 x SL-880 safety linch-pin
2 x TS-890 tilt strap
1. Attach flying chains to the flybar using the narrow setting
2. Insert daggers through the slots in the top of the cabinets and secure with safety linch-pins
3. Attach TS-890 tilt straps between the flybar tilt strap points and the rear of the cabinets,
and ratchet to achieve the desired downward angle.
