Parametric Equalisation
Eight sections of equalisation are provided, two shelving filters and six fully variable
parametric sections.

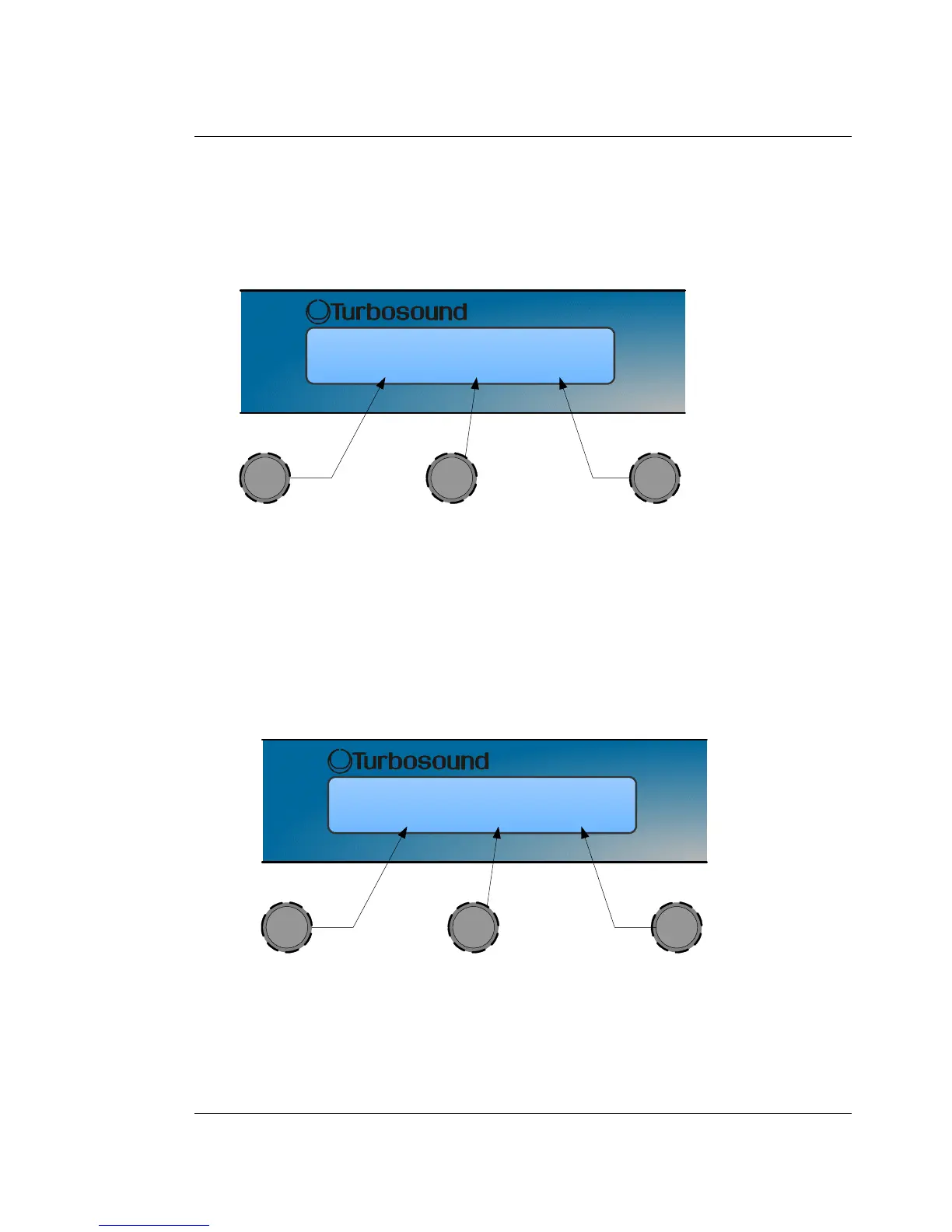

High and Low shelving filters
LMS-D26
In A Freq Slope Gain
EQ1 100Hz 12dB 0.0dB
a
b
c
a b c
Knob A: Frequency, 10.0Hz to 25.6kHz in variable steps
Knob B: Slope, 6 to 12dB / octave in 1dB steps
Knob C: Gain, +/-15dB in 0.2dB steps
The frequency is specified as point where the filter deviates by 3dB from the gain value.
Parametric filters
LMS-D26
In A Freq Width Gain
EQ1 100Hz 1.4Q 0.0dB
a
b
c
cba
Knob A, Centre Frequency, 10.0Hz to 25.6kHz in variable steps
Knob B, Width, display selectable, Q or BW (Bandwidth)
BW adjustable from 0.05 to 5 octaves in variable steps
Q adjustable from 14.2 to 0.2 in variable steps
Knob C, Gain, +/-15dB in 0.2dB steps
