Turbosound MANCHESTER Series Quick Start Guide

14 Manchester Series MAN210-FG/MS121/MV210-HC Quick Start Guide 15

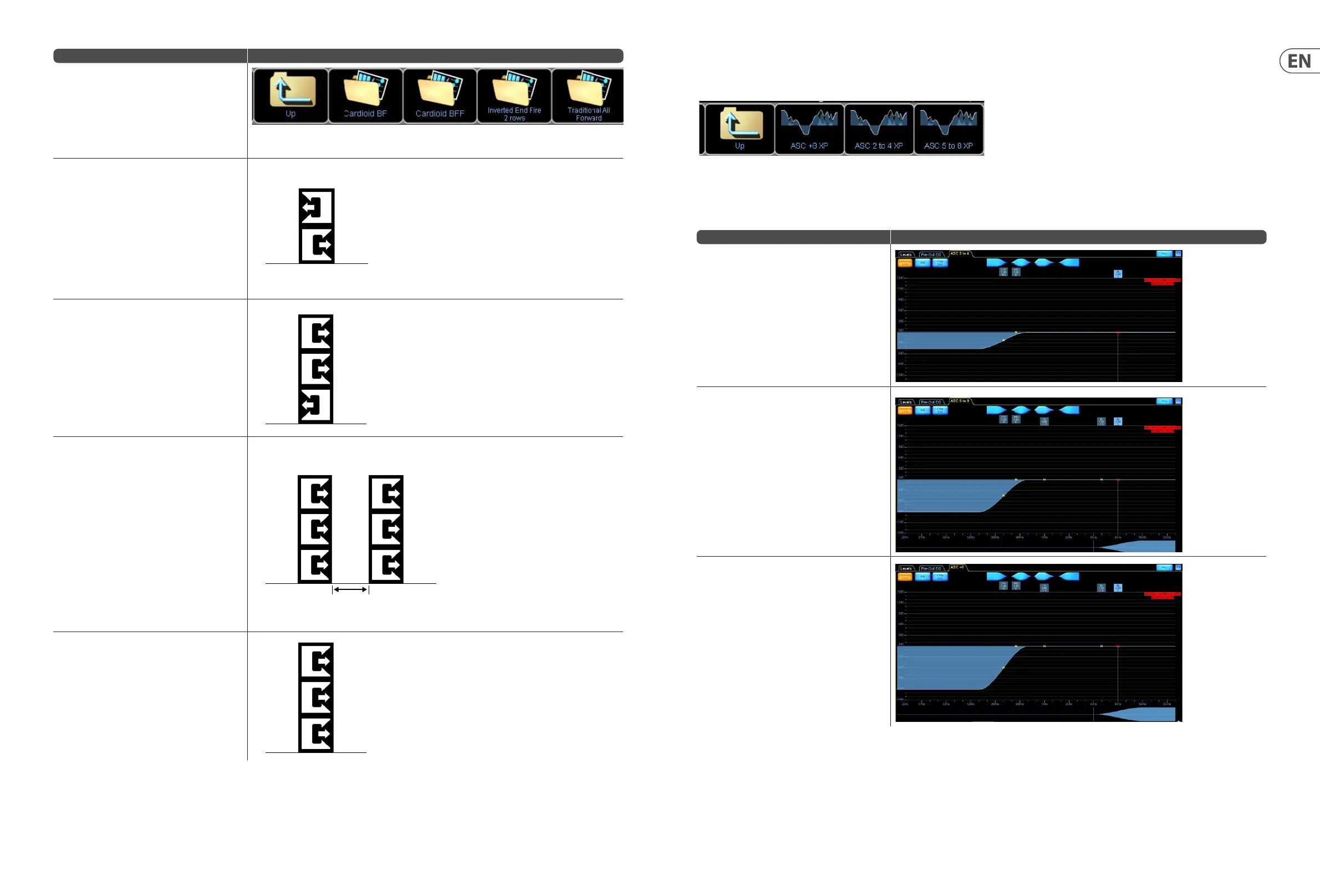

SUBWOOFER STRATEGY
ILLUSTRATION
The Manchester series has a powerful yet simple
Subwoofer pre-set strategy.
Warning: Do not combine MS215, MS218, MS121
subwoofers on the same amplier/DSP circuit.
Cardioid BF
1:1 ratio
1 cabinet facing Front, 1 cabinet facing Back
• Eective cardioid patten
• Good rear rejection
• Some compromise of transience response
• Less ecient use of subwoofers
Cardioid BFF
2:1 ratio
2 cabinets facing Front, 1 cabinet facing Back
• Eective cardioid patten
• Good rear rejection
• Some compromise of transience response
• The best ratio for ecient use
Inverted End Fire
1:1 ratio
Front cabinets using FRONT preset
Rear cabinets using REAR preset. Rear cabinets facing
forward, at the rear in a 2 cell inverted end re array
• Eective cardioid patten
• Good rear rejection
• Excellent transience response
• Ecient use of subwoofers
• More physical depth required (800 mm + 440 mm
+ 800mm)
Traditional
• All cabinets facing Front
• Eectively omni directional
• Excellent transience response
Back
Front
Ground
Back
Front
Front
Ground
Front
Front
Ground
Front
Rear
Rear
440 mm
Rear
Front
Front
Ground
Front
Array Size Compensation (ASC)Overlays
Three ASC overlays are available, and it is recommended that ALL enclosures in the array have ASCselected.
The 6 dB low-frequency shelving characteristic osets LF/MF arraycoupling.
Note: Single MV210-HC do not normally require ASCoverlay.
ASC OVERLAYDESCRIPTION OVERLAY
ASC 2 to 4: 2 to 4cabinets
ASC 5 to 8: 5 to 8cabinets
ASC +8: more than 8cabinets
ASC OVERLAYDESCRIPTION OVERLAY
