8 Manchester Series MAN210-FG/MS121/MV210-HC Quick Start Guide 9

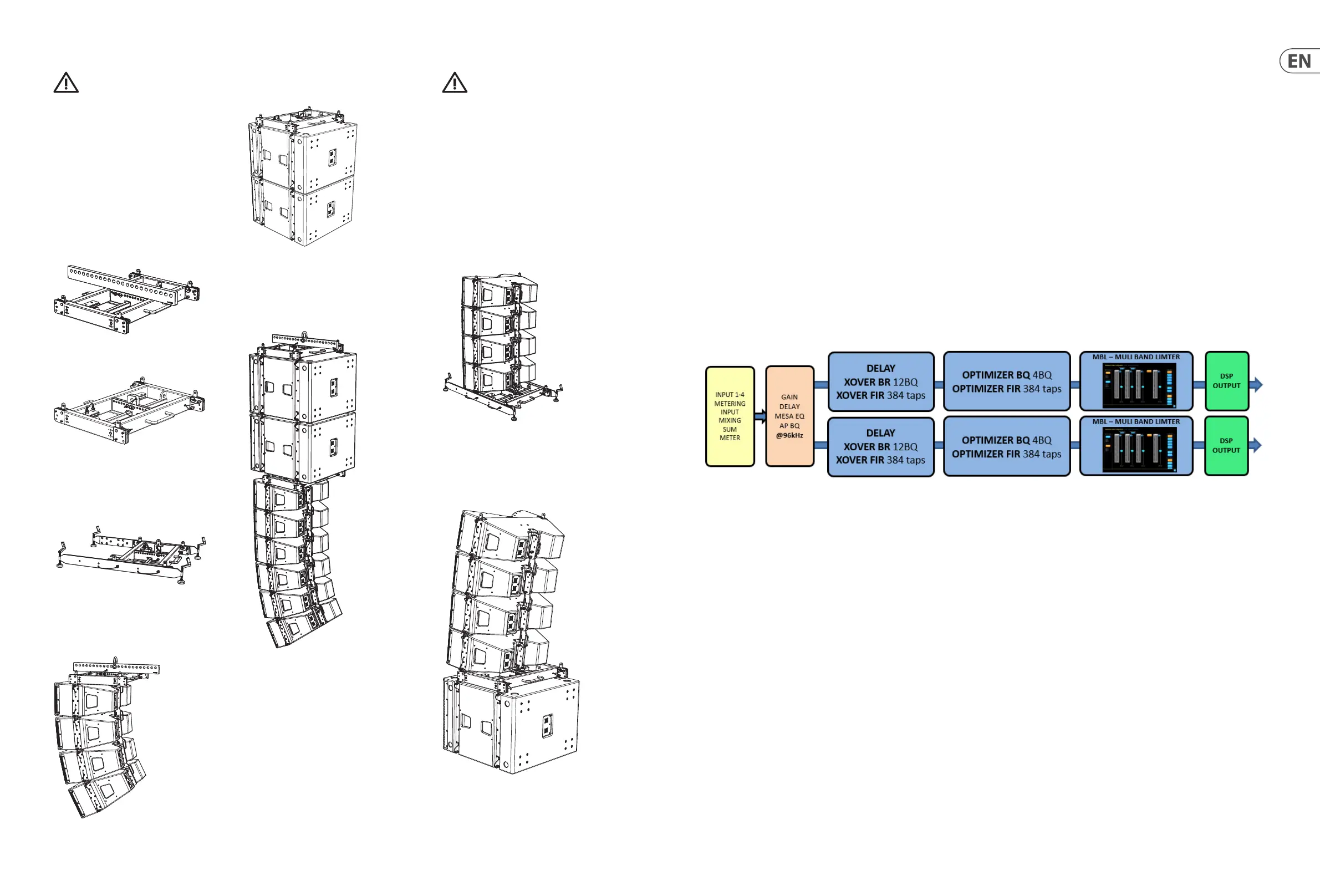

SuspendedArrays

Safety Warning: Only authorised and

certied personnel shall design and install

suspended congurations, following the instructions

and procedures in the MAN210-FG y grid rigging

manual available online at turbosound.com. For

maximum array sizes, weights and working load

limits, please consult this rigging manual. Failure to

follow these instructions may lead to death or

permanent injury.

The versatile MAN210-FG y grid allows the

Manchester MV210-HC and MS121 speakers to be

own in a number of dierent congurations.

The MAN210-FG comes with a multi-pick point tip

bar for single or dual suspension.

The MAN210-FG also comes with a single pick point

plate that may be used instead of the tip bar.

The MAN210-FG also comes with side support

'outriggers' with adjustable feet to aid stability, for

forward or rearward array tilt. A ground stack plate

attaches to the rear mounting point on MV210-HC

speakers for ground stacking.

MV210-HC Array Example

MV210-HC speakers attached to the MAN210-FG Fly

Grid. The MV210-HC rear mounting plates adjust the

angles.

Subwoofer Array Example

Two MS121 subwoofers attached to an MAN210-FG y

grid. The subwoofers can also be mounted rear-ring.

Hybrid Array Example

A second MAN210-FG is attached to the bottom of

the lower MS121 subwoofer. MV210-HC speakers can

then be attached to this lower y grid.

GroundStacking

Safety Warning: Only authorised

personnel shall design and rig the ground

stacked conguration, following the instructions and

procedures in the MAN210-FG y grid rigging

manual available online at turbosound.com. Failure

to follow these instructions may lead to death or

permanent injury.

MV210-HC Groundstack Example

The MAN210-FG y grid comes with a ground stack

plate that attaches to the rear mounting point on the

lowest MV210-HC. Two outriggers with adjustable

feet oer extra stability and support. The outriggers

can be tted in three positions, depending on if the

array is tilted forward, upright, or tilted back.

Hybrid Groundstack Example

The MAN210-FG y grid may be connected to the

top of an MS121 subwoofer, and then MV210-HC

speakers connected to the top of the y grid.

Lake Preset Overlays and ApplicationNotes

All Manchester series Loudspeakers exclusively use Lake XP pre-sets via Lab Gruppen PLM+ and D series L platforms. No other amplier and DSP platforms are

supported.

The Manchester series has a powerful yet simple pre-set strategy utilizing the latest functionality of Lake software, along with new acoustic compensation overlays for

length of array and throw distances required.

Pre-set data is found either via the Lake Load Library, or can be downloaded from www.turbosound.com

MV212, MV212-XV, MV210-HC & MC12-P loudspeakers each have individual Bi-AMP FIR base pre-sets: Full range with or without MS Subwoofers.

* MC12-P also have bi-amp (2 channel DSP/AMP) and passive (1 channel DSP/AMP).

CAUTION: Do not combine MV212 / MV212XV / MV210-HC / MC12-P loudspeakers on the same amplier / DSP circuit. Failure to follow these instructions may lead to

damage to the equipment.

CAUTION: Pay careful attention to output patching.

MV212, MV212-XV, MV210-HC, MC12-P, MS Subwoofer modules are based on the XP module from Lake software.

This QSG refers to REV2.1 XP presets.

CAUTION: REV1.1 (older 'FIR3way' modules) and REV2.1 XP modules ARE NOT COMPATIBLE IN THE SAME SYSTEM.

Lake software V7.0.7 or above must be used.

LakeXP signal ow:

The download of the Lake controller includes the Lake Controller Operation Manual, which is a full tutorial of the Lake Controller and compatible hardware such as

PLM+ series ampliers

Within this QSG, we focus on the Turbosound Manchester series workow and pre-set strategy, and assume basic working knowledge of the Lake Controller.
