user manual
TCS series
tcs manual
page 22

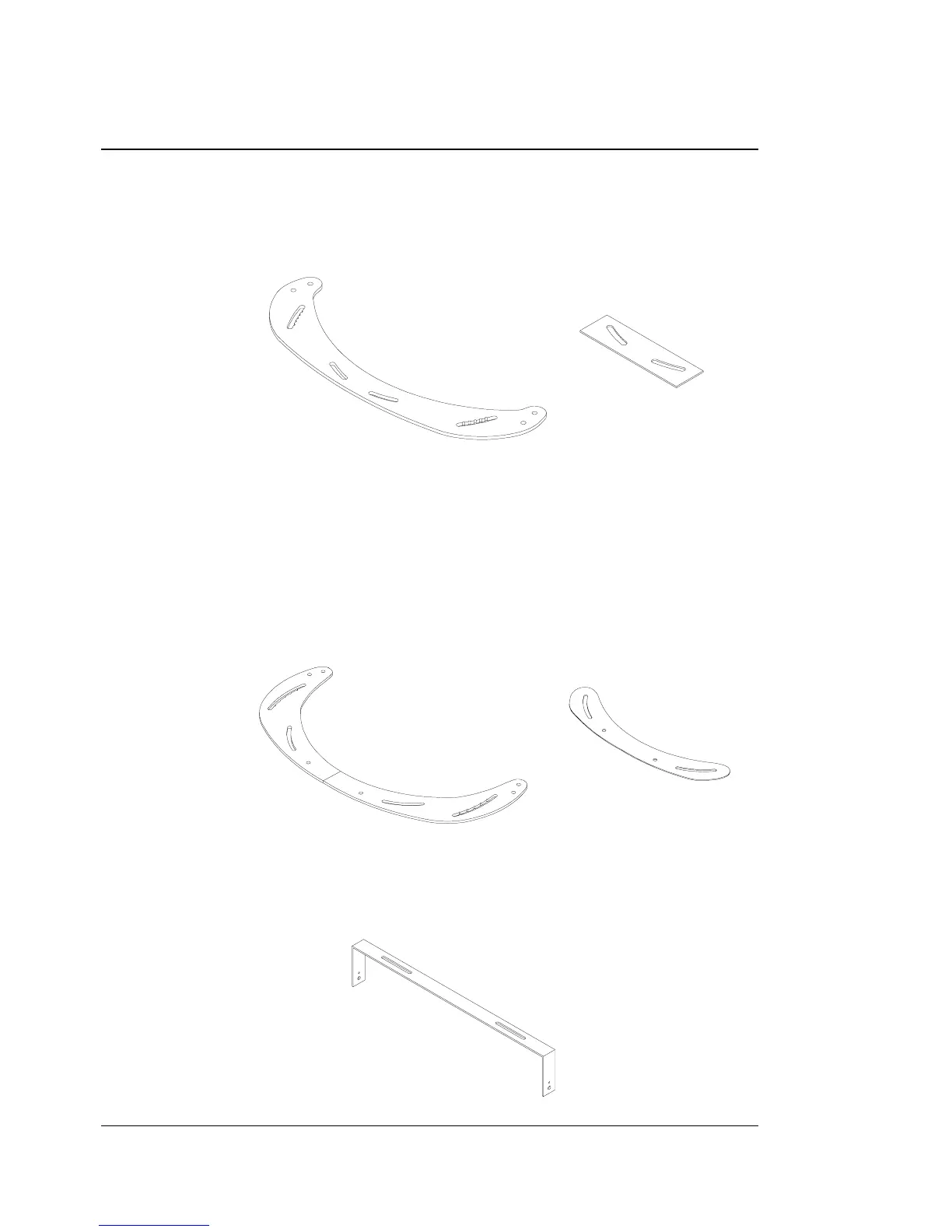

• TP-55/2
TP-55/2TP-55/2
TP-55/2 2-way flying assembly top plate and a BP-55/2
BP-55/2BP-55/2
BP-55/2 2-way flying assembly bottom
plate. It is used to connect two TCS-56/59 enclosures together with a splay angle
between cabinets of up to 30º in increments of 5º
TP-55/2 BP-55/2
• TP-55/3
TP-55/3TP-55/3
TP-55/3 3-way flying assembly top plate and a BP-55/3
BP-55/3BP-55/3
BP-55/3 3-way flying assembly bottom
plate. It is used to connect three TCS-56/59 enclosures together with a splay angle
between cabinets of up to 30º in increments of 5º. The TP-55/3 top plate is supplied in
two identical halves for handling convenience
TP-55/3 BP-55/3
• SB-40
SB-40 SB-40
SB-40 swivel bracket used to suspend a TCS-40 downfill enclosure
