TURFCO T3000 APPLICATOR
SERVICE AND MAINTENANCE

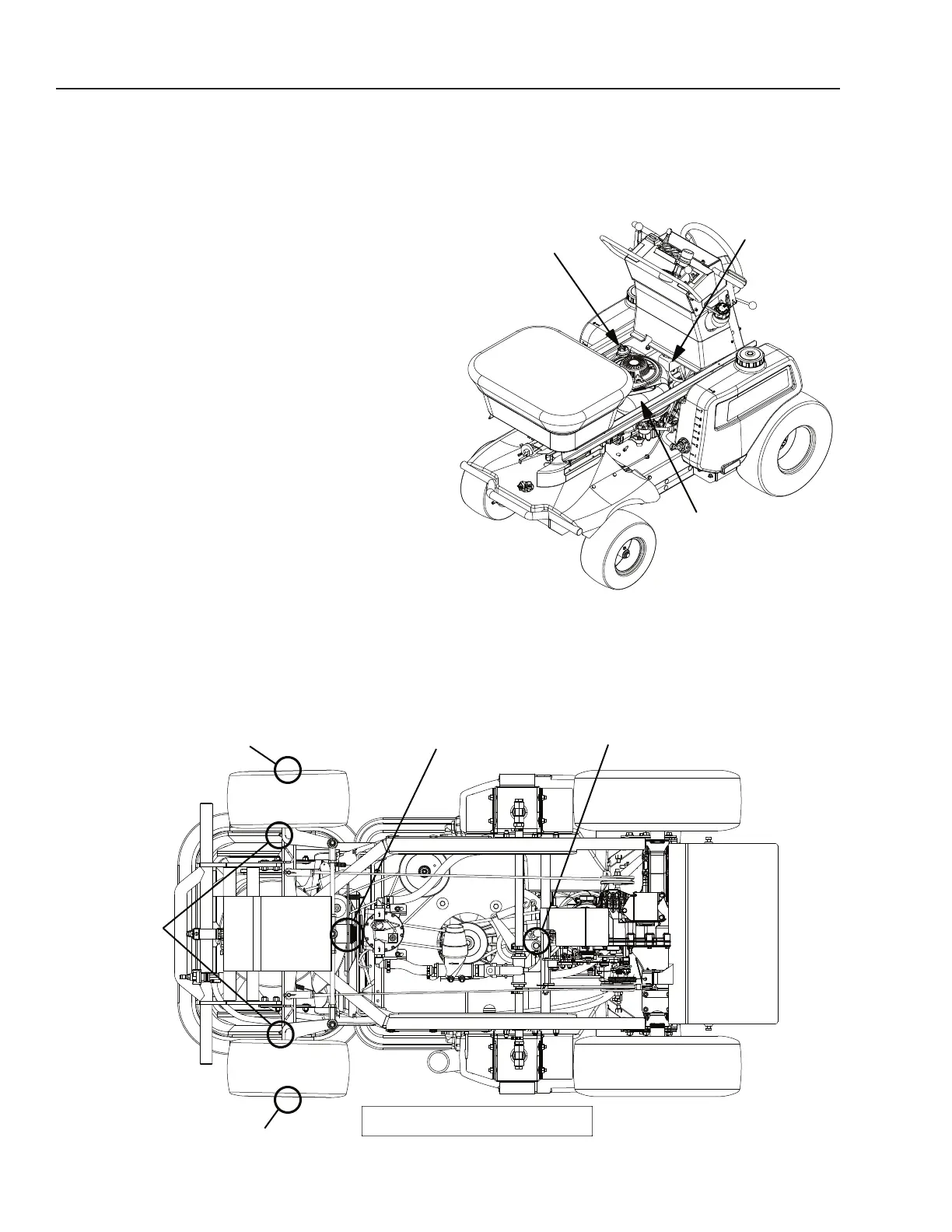

ENGINE
OIL DIPSTICK
AND FILLER
ENGINE
AIR CLEANER
TRANSAXLE
RESERVOIR
TANK
REMOVE STORAGE TRAY
TO CHECK ENGINE
FIGURE 19
SV85872-02
GREASE FITTING LOCATIONS
(TOTAL OF 6)
AS VIEWED FROM BOTTOM
REAR OF MACHINE
FRONT AXLE
CENTER SWIVEL (QTY 1)
RIGHT FRONT
WHEEL BEARING (QTY 1)
FRONT
STEERING
ARMS
(QTY 2)
IDLER ARM
SUPPORT (QTY 1)
LEFT FRONT
WHEEL BEARING (QTY 1)
FIGURE 20
SV85872-03
ENGINE AND TRANSAXLE (See Figure 19)
Engine: CHECK OIL LEVELS DAILY. Follow the
engine manufacturer’s manual for intervals of oil
change, oil filter replacement, proper oil types, and
fill levels for the engine. Inspect and clean/replace
the engine air filter as needed.
Engine Carburetor Linkages and Springs:
CLEAN AND LUBRICATE WEEKLY. Clean and
remove fertilizer dust from the linkages, governor
springs, choke linkage on the carburetor with carb
cleaner. Lightly lubricate to protect from rust. Wipe
away excess lubrication that will attract and collect
dust, dirt and debris.
Transaxle: Check the level of fluid in the transaxle
reservoir. Fill only to the “Full Cold” level mark on
the reservoir (located very low on reservoir). Use
20W/50 engine oil for the transaxle. Do not overfill.
Transaxle capacity is 95.5 fluid ounces (2.8 Liter/3
quarts). Add extra to allow for filter, the reservoir
and the reservoir hose (approximately one quart).
GREASE FITTINGS (See Figure 20)
Grease Fittings: (qty 6) Grease after every 8 hours
of operation. Wipe away excess lubrication that will
attract and collect dust, dirt and debris.
Lubrication
