TURFCO T3000 User Manual

29
85872 RevA
TURFCO T3000 APPLICATOR
ADJUSTING
STEERING CABLES
(See Figure 23)
The steering cables
can be adjusted to
correct for wear and to
take “slack” out of the
steering wheel.
● Inspect the tie rods
and tie rod ends.
● Check
the front
wheel bearings and the
bearings where the front
spindles go through the
front axle beam.
● Check
that cables are
on steering cable pulleys
at rear of machine
● Locate adjusters on
cable ends near front axle. Loosen locking nuts on both cables. Adjust each side equally to keep the alignment
equal and to avoid changing the steering wheel steering position. Do not over tighten cables. Retighten lock nuts
after adjusting.
● Check
the alignment of the front tires, they should have a “Tow Out” of 1/4” to 1/2”. Take a measurement across
the front tires, measuring from the center of the tires. Measure both the front and the rear. The front measurement
should be 1/4” to 1/2” more than the rear measurement. Correct if needed by adjusting the tie rods.
ENGINE
PULLEY
TRANSAXLE
PULLEY
HOPPER
PULLEY
PUMP PULLEY
VARIATOR
PULLEY
SV85872-09
TENSIONER PULLEY
FIGURE 24
A
B
C
D
E
REDUCTION
PULLEY
SERVICE AND MAINTENANCE
V-BELT IDENTIFICATION (See Figure 24)
A. Hopper Pulley to Variator Pulley - 24” 3L SECTION
B. Variator Pulley to Reduction Pulley - 27” 3L SECTION
C. Reduction Pulley to Pump Pulley - 27” 3L SECTION
D. Pump Pulley to Engine Pulley - 26” 3L SECTION
E. Engine Pulley to Transaxle Pulley - A SECTION A-38
REAR OF MACHINE

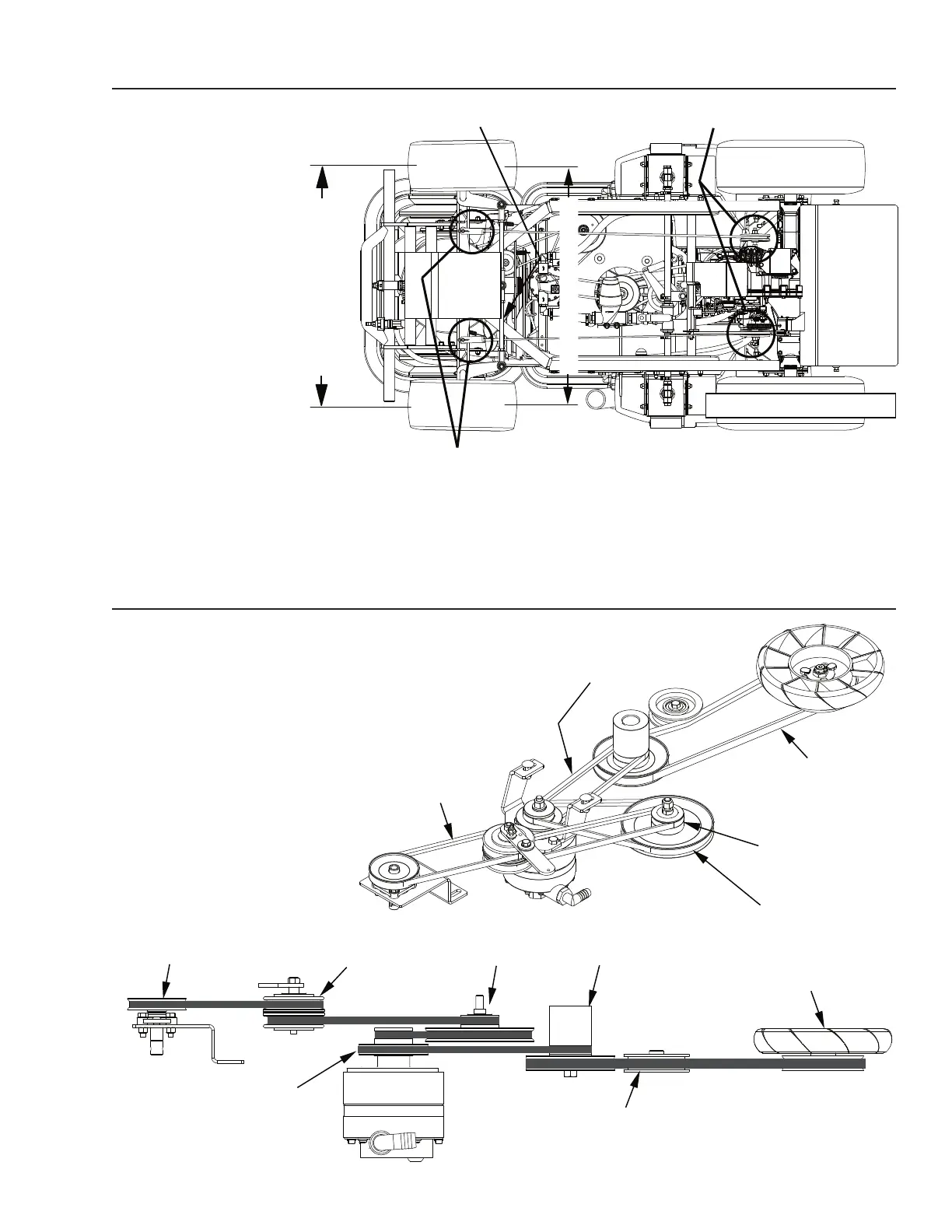

FIGURE 23
SV85872-12
STEERING CABLE ADJUSTERS
STEERING CABLE PULLEYS
SET TOW OUT AT
REAR MEASUREMENT
PLUS 1/4” to 1/2”
TIE RODS
REAR MEASUREMENT
AS VIEWED FROM BOTTOM
