Addendum: Clean-In-Place System
E09 TD-4100XD
A-12 E09 TD-4100XD Oil In Water Monitor
Clean-In-Place Addendum
PN 106169
Rev B

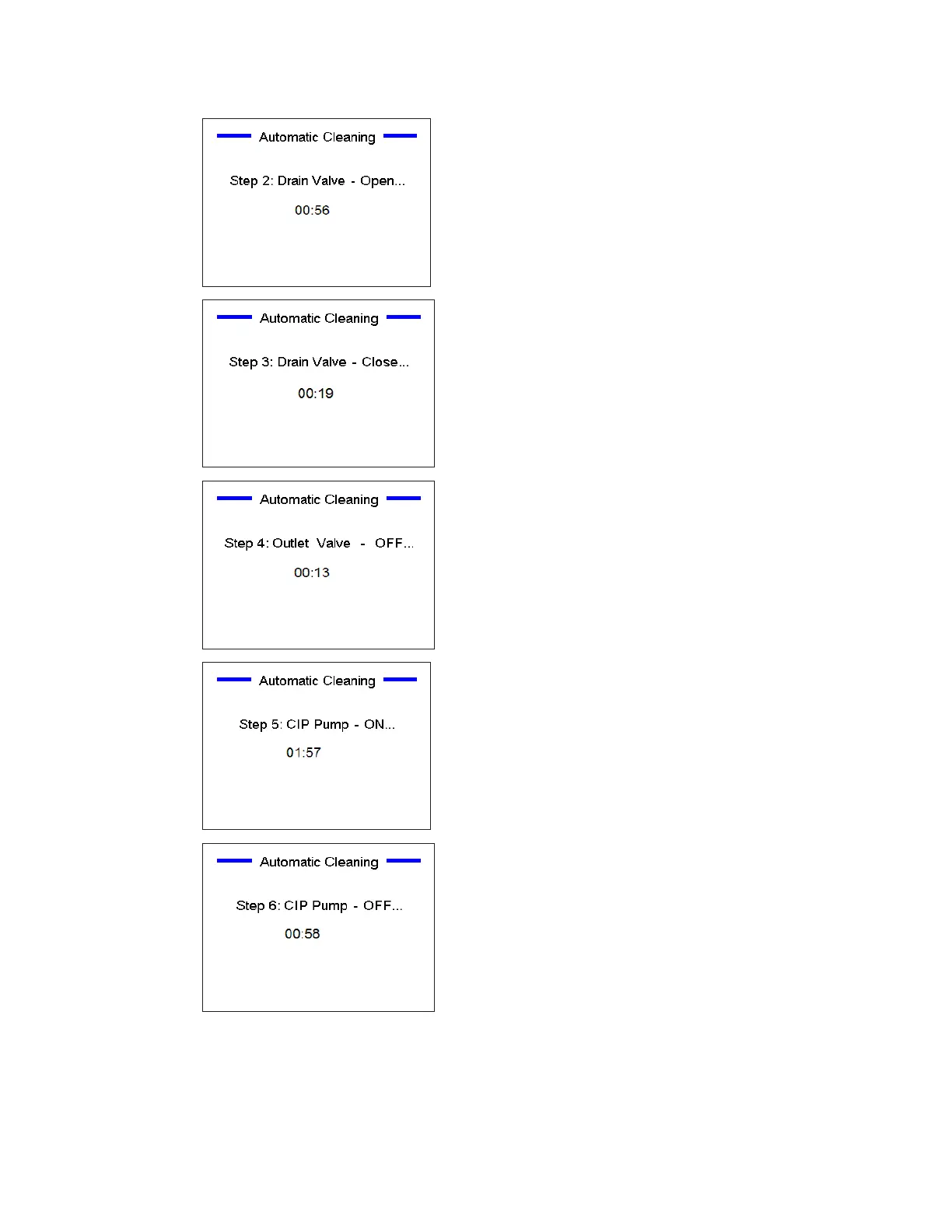

When the inlet valve has closed, the inlet tubing drains for
a recommended duration of 60 seconds.
Next the bubble trap valve closes. The recommended
duration for this setting is 20 seconds.
When all uid has drained from the sample system, the
outlet valve closes. The recommended duration for this
setting is 15 seconds.
At this point in the process, all valves are closed and the
cleaning solution can be pumped through the system.
The recommended run time for the pump is 120 seconds.
NOTE: Allow a minimum of 90 seconds for this setting in
order to ll the bubble trap and activate the AVS. Cleaning
solution will not enter the ow cell until the AVS is on.
When cleaning is complete, the CIP system pump shuts
off and the cleaning solution drains from the inlet tubing
back to the tank. The recommended duration for this
setting is 60 seconds.
