A.1.2 MAKING PIPING CONNECTIONS
The cleaning solution pump and system is partially plumbed at the factory. Some assembly is required,
as detailed in Section A.1 Installing the Clean-In-Place System. To periodically drain the tank, Turner
Designs Hydrocarbon Instruments recommends installing a T-valve with hose bib at the CIP outlet
shown below and on page 1 of Section A.5 Clean-In-Place General Arrangement Drawings.

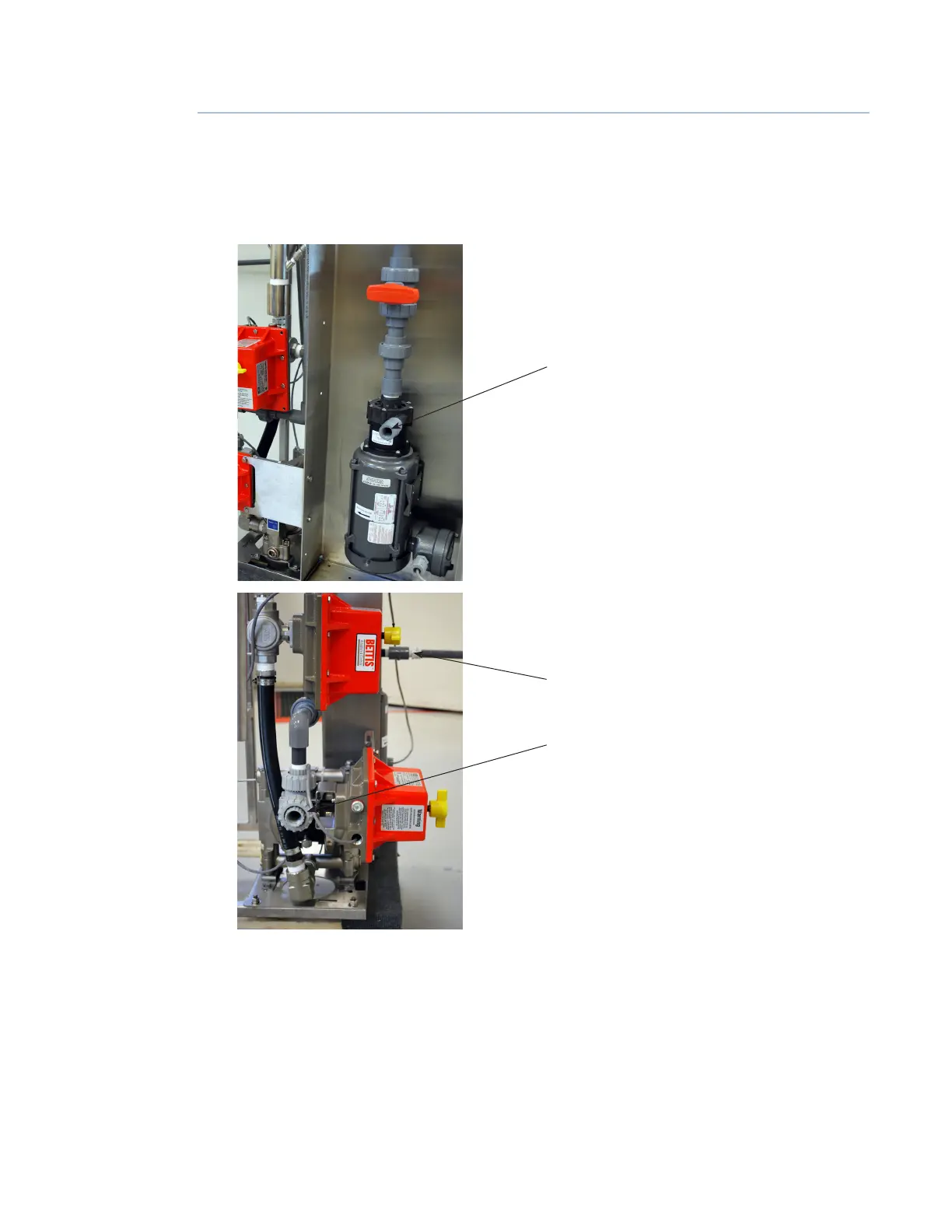

Rear view of monitor showing CIP system pump with
front panel removed.
CIP pump outlet. 1/2 in. MNPT. Install optional T-valve
and hose bib here for draining the CIP tank easily.
Right view of monitor showing CIP system outlet and
monitor sample return.
CIP pump outlet
Sample return (to process). 1 in. FPT.
