Installation (continued)

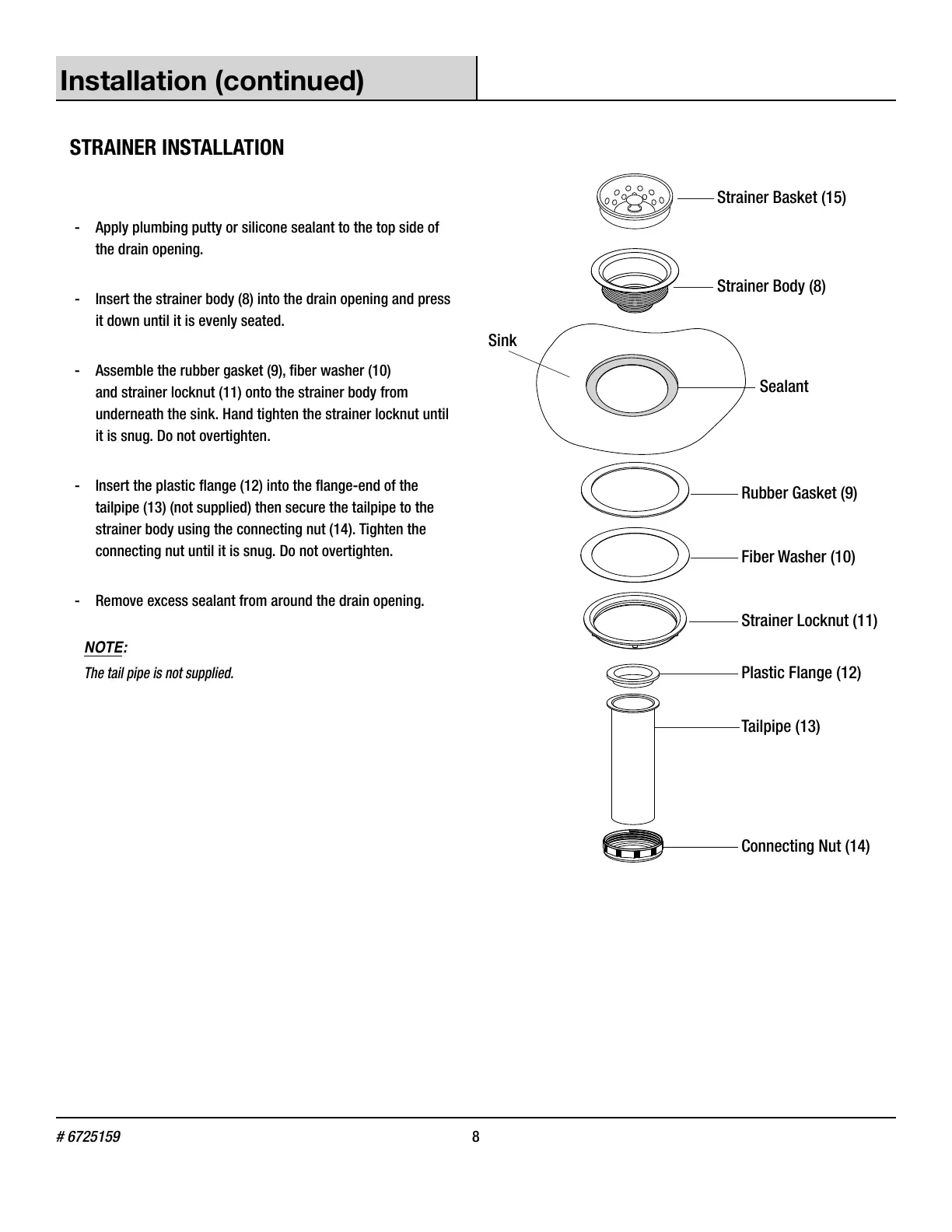

STRAINER INSTALLATION
- Apply plumbing putty or silicone sealant to the top side of
the drain opening.
- Insert the strainer body (8) into the drain opening and press
it down until it is evenly seated.
- Assemble the rubber gasket (9), ber washer (10)
and strainer locknut (11) onto the strainer body from
underneath the sink. Hand tighten the strainer locknut until
it is snug. Do not overtighten.
- Insert the plastic ange (12) into the ange-end of the
tailpipe (13) (not supplied) then secure the tailpipe to the
strainer body using the connecting nut (14). Tighten the
connecting nut until it is snug. Do not overtighten.
- Remove excess sealant from around the drain opening.
NOTE:
The tail pipe is not supplied.
Strainer Body (8)
Sealant
Sink
Rubber Gasket (9)
Fiber Washer (10)
Strainer Locknut (11)
Plastic Flange (12)
Tailpipe (13)
Connecting Nut (14)
Strainer Basket (15)
