Tuxedo TP9KF - Installation Procedures; Site Location, Layout, and Obstructions

５
TP9KF
July 2015-A
INSTALLATION INSTRUCTIONS
STEP 1: (Selecting Site) Before installing your new lift, check the following:
1. LIFT LOCATION: Always use architects plans when available. Check layout dimension against floor plan
requirements making sure that adequate space is available (Fig. 2 & Fig. 3).

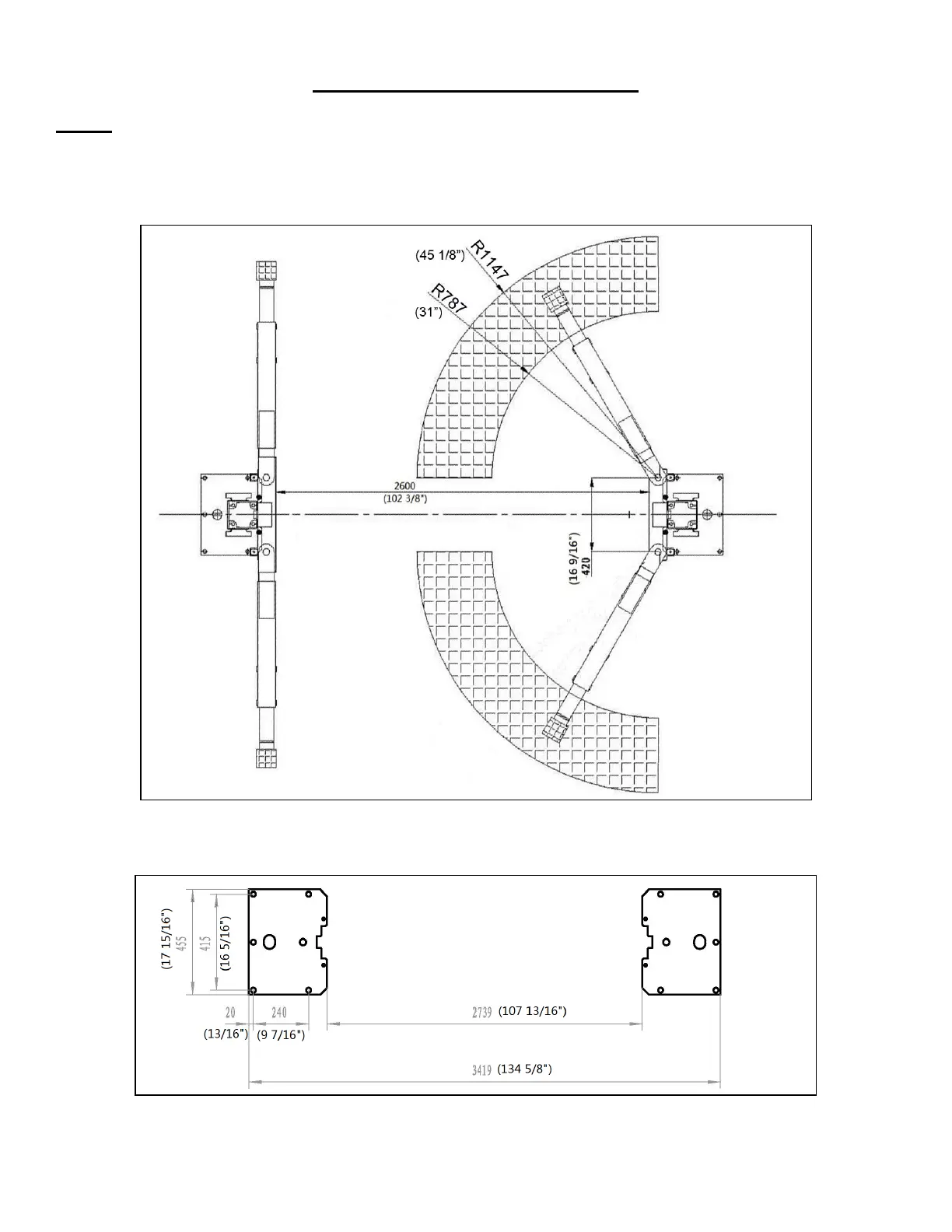

Fig. 2
(TP9KF - Symmetric Lift)
Fig. 3
(Column / Floor Layout)
