2 Module Interfaces
2.1 Dimensions and Footprint
TYZS3 has two rows of pins with a 2 mm pin spacing.
TYZS3 dimensions (H x W x D): 2.6 mm x 16 mm x 24 mm

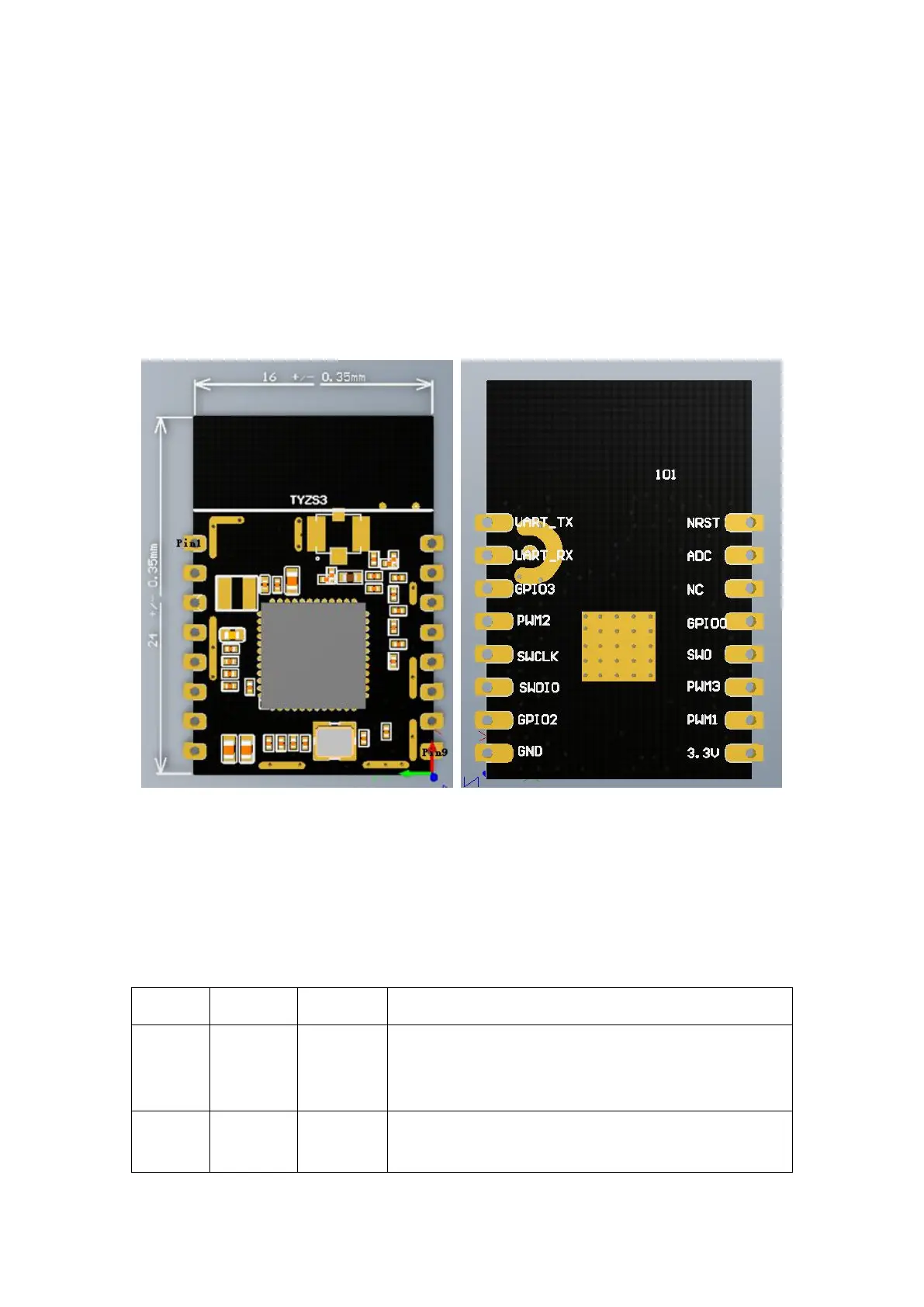

Figure 2-1 shows the TYZS3 front and rear views.
Figure 2-1 TYZS3 front and rear views
2.2 Pin Definition
Table 2-1 TYZS3 interface pins
Hardware reset pin. When the pin is at a low level,
the chip is reset. TYZS3 is reset upon power-on, and
therefore, this pin may not be used.
12-bit precision SAR ADC. For more information, see
the following Note 3.
