14
LVM-071W

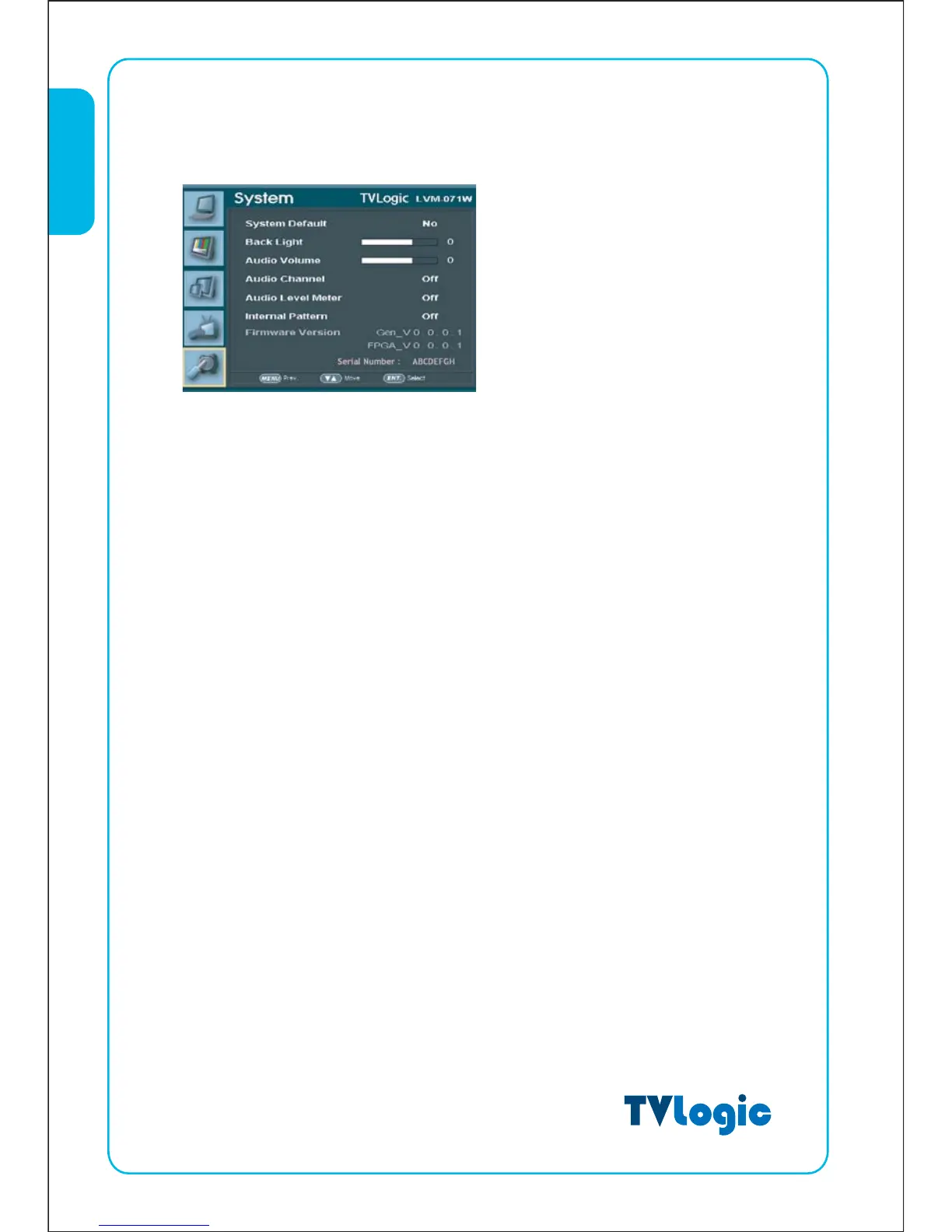

[6] System
· System Default
User can use the System Default menu to initialize the values of the monitor excluding
controlled values with the knobs On the front of the monitor.
· Back Light
This item controls the LED backlight setting. The value should be within range
between MIN(0) and MAX(25).
· Audio Volume
This item controls embedded audio volume between MIN(0) and MAX(20).
· Audio Channel
This item set embedded audio channel selects CH1 ~ CH16, Off, and Ext. Audio.
· Audio Level Meter
This item set embedded audio group selects Off, G1+G2, G2+G3, G3+G4, G1+G3,
G1+G4, G2+G4 to activate Audio Level Meter.
· Internal Pattern
Displays internal test pattern.
· Firmware Version
This item is the firmware version of the system.
· Serial Number
Displays the serial number of monitor.
To Next Page
