15
Other Functions

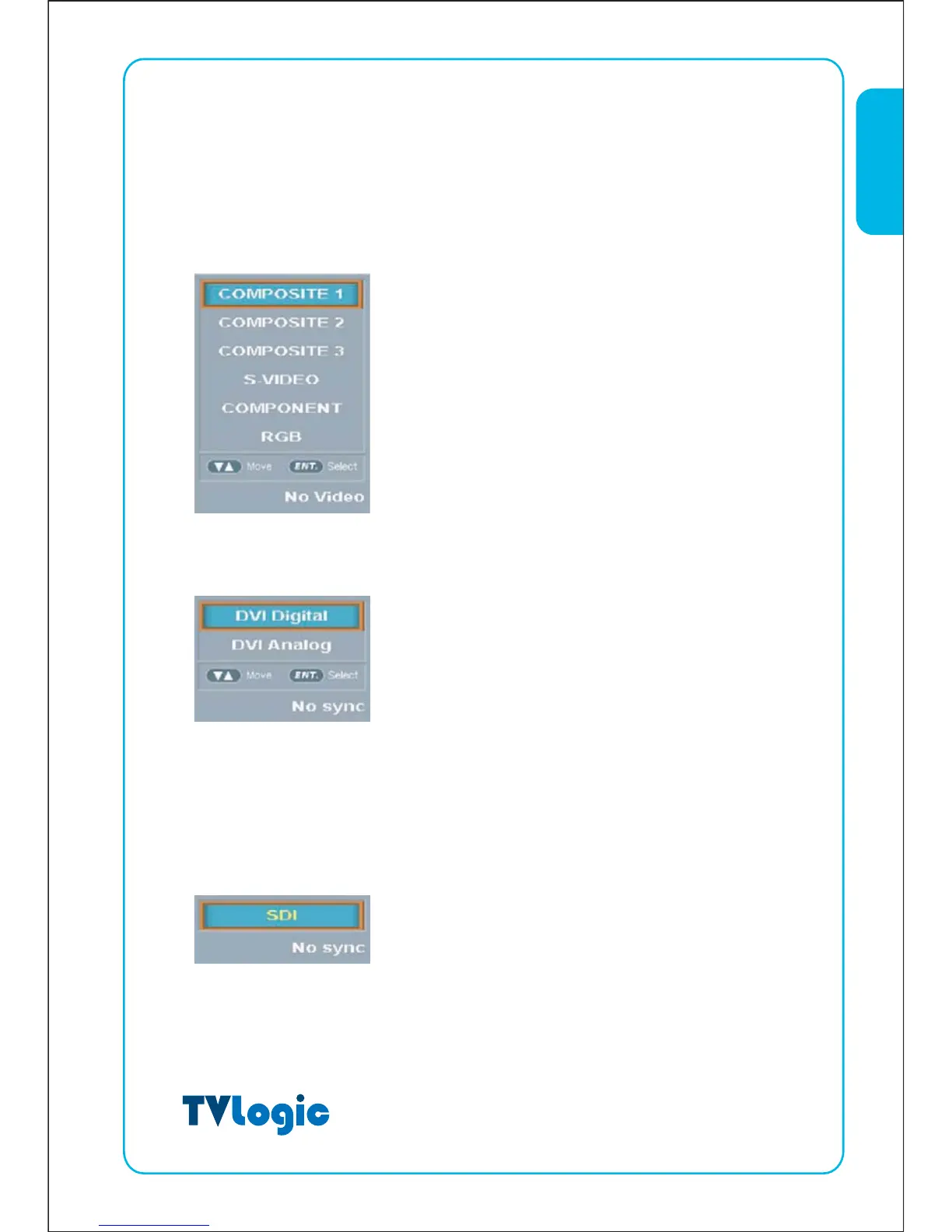

1) ANALOG INPUT Menu
2) DVI INPUT Menu
3) SDI INPUT Menu
LVM-071W
· LVM-071W Series unit is capable of processing varied
ANALOG Input signals.
· Press [ANALOG] button on the front of the monitor and
activate the OSD menu as shown on the left.
Select the input you desire by using the [UP]/[DOWN]
button and press the [ENTER] button to confirm.
#If no image displays after selecting the desired input
mode, check and make sure that your connection is not
lose or disconnected.
#Input resolution displays on the bottom of the OSD screen.
· LVM-071W Series unit is capable of processing DVI
Digital/Analog input signal.
· Press [DVI] button on the front of the monitor and
activate the OSD menu as shown on the left.
Select the input you desire by using the [UP]/[DOWN]
Button and press the [ENTER] button to confirm.
#If no image displays after selecting the desired input
mode, check and make sure that your connection is not lose
or disconnected.
#Input resolution displays on the bottom of the OSD screen.
· LVM-071W Series unit is capable of processing single
SDI Input signal.
· Press [SDI] button on the front of the monitor to select
the SDI input. OSD menu displays as shown on the left.
#If no image displays after selecting the desired input
mode, check and make sure that your connection is not lose
or disconnected.
#Input resolution displays on the bottom of the OSD screen.
To Next Page
