18
LVM-071W

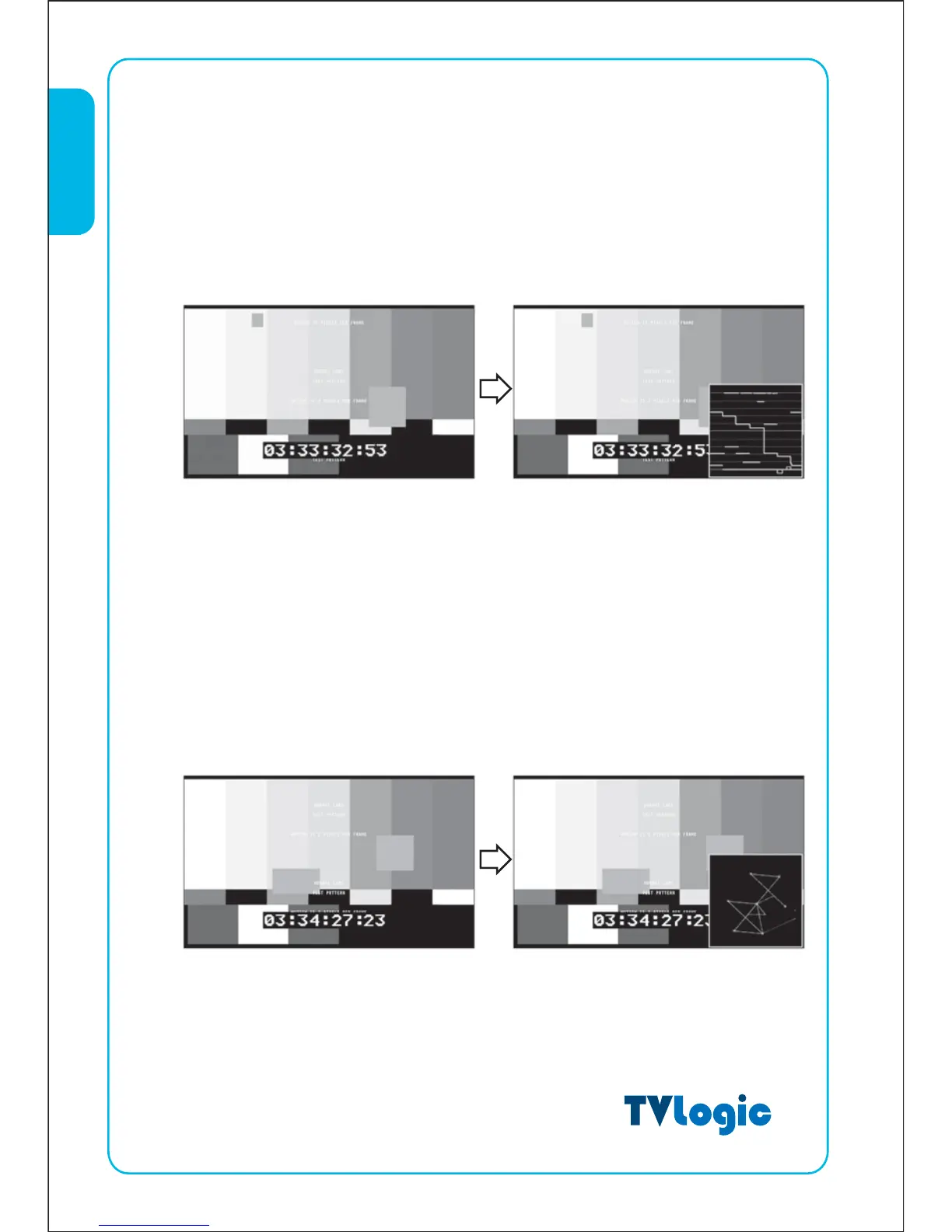

5) Waveform
· Waveform Position
#This function is only available with SDI Input.
6) Vector Scope
· Vector Scope Position
#This function is only available with SDI Input.
Pixel To Pixel
Waveform OFF Waveform ON
Vector Scope OFF Vector Scope ON
