LVM-071W

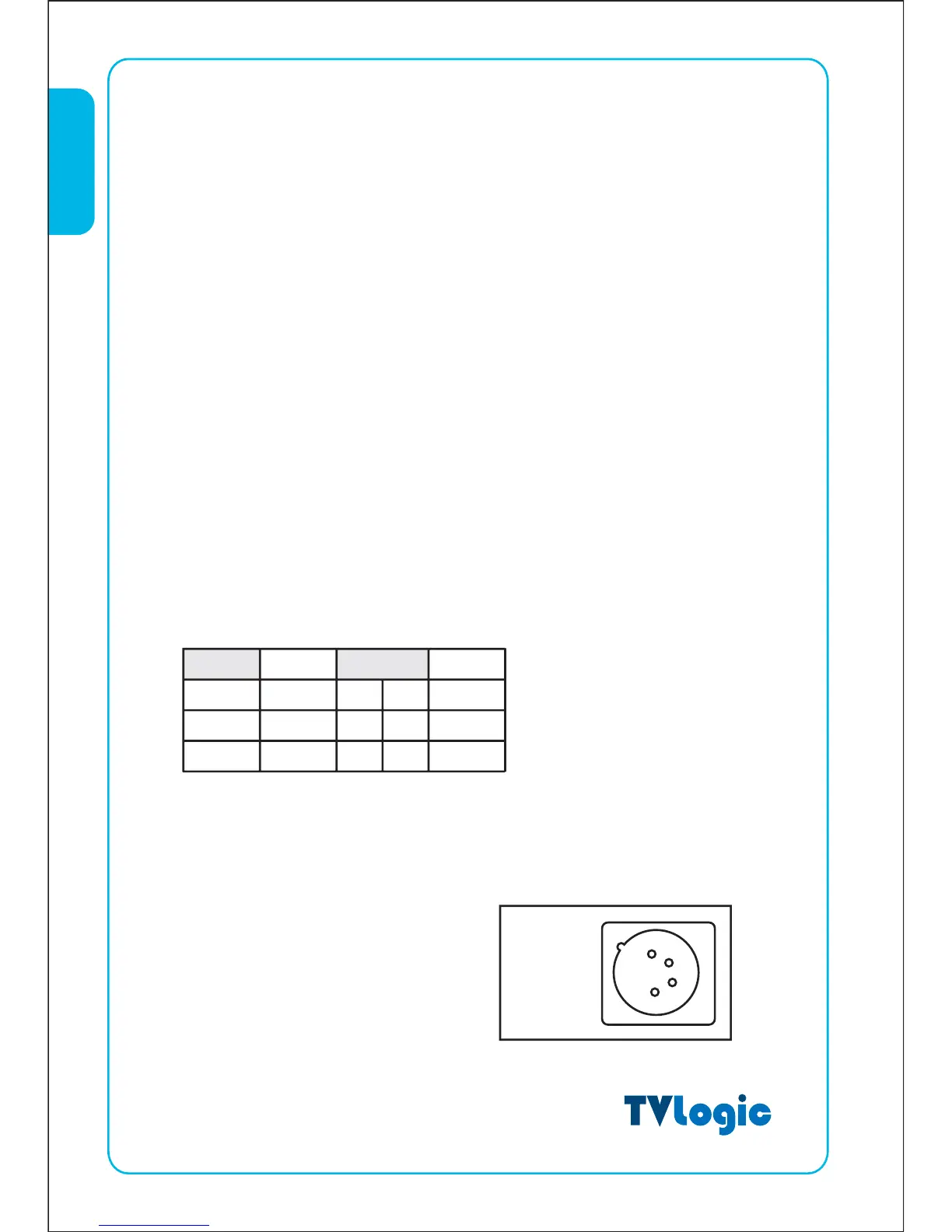

<REAR>
· REMOTE (RJ-45)
Connection for remote control of monitor.
· DVI DIGITAL/DVI ANALOG (DVI-I)
Input connection for DVI-I.
· SDI-IN (BNC)
SDI signal input terminal.
· SDI-OUT (BNC)
SDI signal output terminal.
· CVBS1/B/Pb (BNC)
Signal input terminal used for COMPOSITE1, RGB B, COMPONENT Pb signals.
· CVBS2/G/Y/S-Y (BNC)
Signal input terminal used for COMPOSITE2, RGB G, COMPONENT Y, SVIDEO signals.
· CVBS3/R/Pr/S-C (BNC)
Signal input terminal used for COMPOSITE3, RGB R, COMPONENT Pr, SVIDEO C signals.
· AUDIO IN (Phone jack)
Used to External audio input jack.
· AUDIO OUT (phone jack)
Used to audio output jack.
· FACTORY PGM (40 pins)
Input connector for FACTORY PGM
allowing for firmware updates.
· DC IN (XLR, 4 pins)
Used to supply DC power; 12V.
Connector Composite Component S-Video
1CVBS1PbBNo Con.
2
CVBS2 Y G Y
3CVBS3PrRC
1
2
3
4
DC IN soket
1: GND
4: +12V
